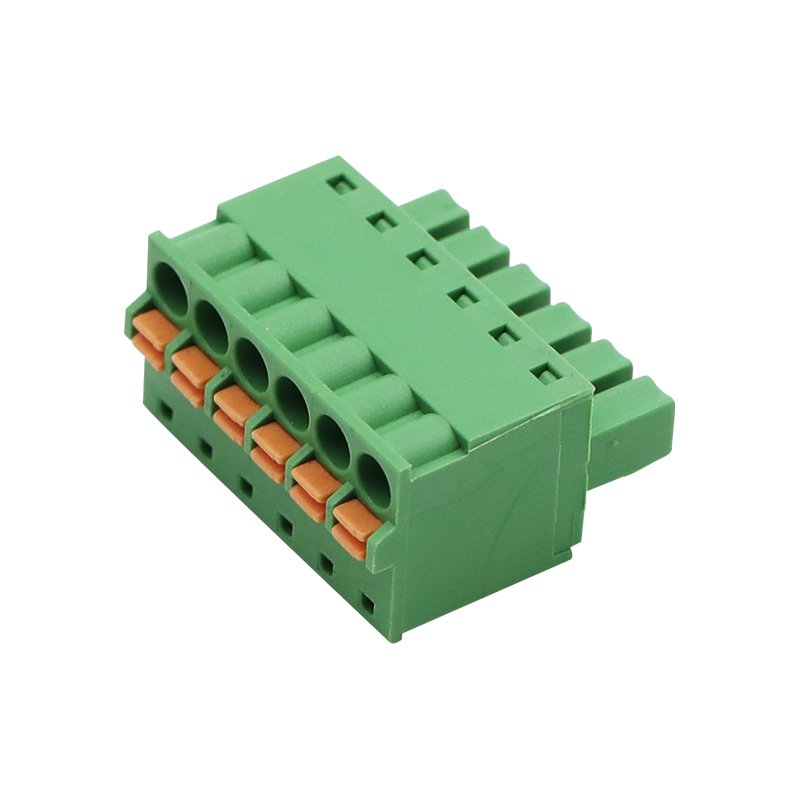

Pluggable Terminal Block Screwless Type 5.0MM
Sanan Electronics Technology Co., Ltd. is specializing in the production and development of terminal connectors, din rail enclosures, IO modules etc, the electronic components for industrial automation system. For the terminal blocks, we produce lifting type, plug-in type, spring type, screw free, barrier type, through type and other types of wiring terminal connectors and other electronic components, Pluggable Terminal Block Screwless Type 5.0MM is widely used in the fields of communication equipment, instruments, computer temperature controller, alarm, security, elevator household appliances, etc.In recent years, the company has developed rapidly, and its products are sold all over China. A large number of products are exported to Europe, America, the Middle East and Southeast Asia. After years of experience, the company has independent R & D and production capacity, OEM / ODM based on the concept of green environmental protection and the spirit of continuous innovation, Sanan Electronics will strengthen close cooperation with all sectors of society to create a better future.
Model:2ESAKD-5.0-6P
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, automation, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.
Feature
●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
Product specification of Pluggable Terminal Block Screwless Type 5.0MM
| Product name | Pluggable Terminal Block Screwless Type 5.0MM |
| Material | Plastic / copper |
| Color | Green |
| Contact | Form 2P-8P(accept customization ) |
| Conductor cross section solid | 0.2~2.5mm² |
| AWG | 26~12AWG |
| Rated voltage | 300V 10A UL |
| Rated voltage | 320V 20A IEC |
| Strip length | 9mm |
| Pitch | 5.0/5.08mm |
| Weight | 7g(depends the contacts) |
| MOQ | 100pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Contact zone metal surface | Tin-plated |
| Insulation Materials | PA66 |
Application of Pluggable Terminal Block Screwless Type 5.0MM
Product details of Pluggable Terminal Block Screwless Type 5.0MM
Drawing of Pluggable Terminal Block Screwless Type 5.0MM
Packing of Pluggable Terminal Block Screwless Type 5.0MM
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
