Spring Male Pluggable Terminal Block
Sanan Electronics Technology Co., Ltd. is found in 2020 Ningbo China. With rich experience, we pride toprovide world-class terminal blocks,Io modueles, din rail enclosures and so on to customers around the world.Having a global-quality is our avdantage, thus we're extremely careful in our production and sourcing process to ensure top-notch quality in the market. Our products are used in all major leading manufacturer sacross automotive, chemical, electrical installation, and many other industries. Our Spring Male Pluggable Terminal Block is commonly used for major power control companies.We serve customers around the world,therefore, majority of our products we offer have received UL, CE, Rosh standard approval and abide with various environmental and industry-specific qualifications,We sincerely look forward to establishing business relationship with the customers all over the world in the future and create development together.
Model:15ESAKNH-3.5-36P
Send Inquiry
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, automation, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation. Our KNH serises are suitable for SMT welding process, to help clients to in the PCB welding.
Feature
●Suitable for SMT welding process
●Universal installation method to ensure a high degree of flexibility in device design
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Multi-layer wire connection can achieve higher contact density
●Universal installation method to ensure a high degree of flexibility in device design
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Multi-layer wire connection can achieve higher contact density
Product specification of Spring Male Pluggable Terminal Block
| Product name | Spring Male Pluggable Terminal Block |
| Material | Plastic / copper |
| Color | Black |
| Contact | Form 4P-40P(accept customization ) |
| Conductor cross section solid | 0.2~1.5mm² |
| AWG | 26~16AWG |
| Pitch | 3.5mm |
| Rated voltage | 300V 8A |
| Strip length | 10mm |
| Pin arrangement | Double-row in a straight line |
| Type of installation | PCB welding |
| Weight | 6g(depends the contacts) |
| MOQ | 100pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Insulation Materials | PA66 |

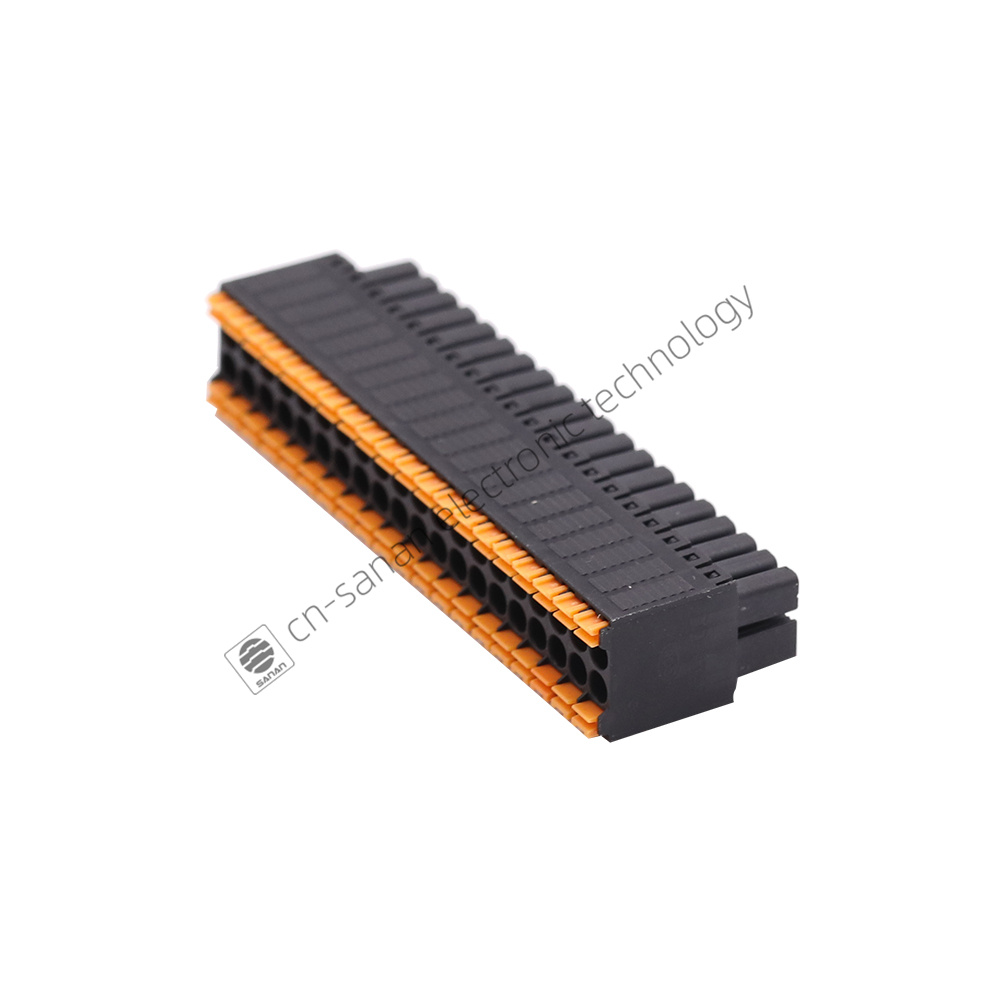

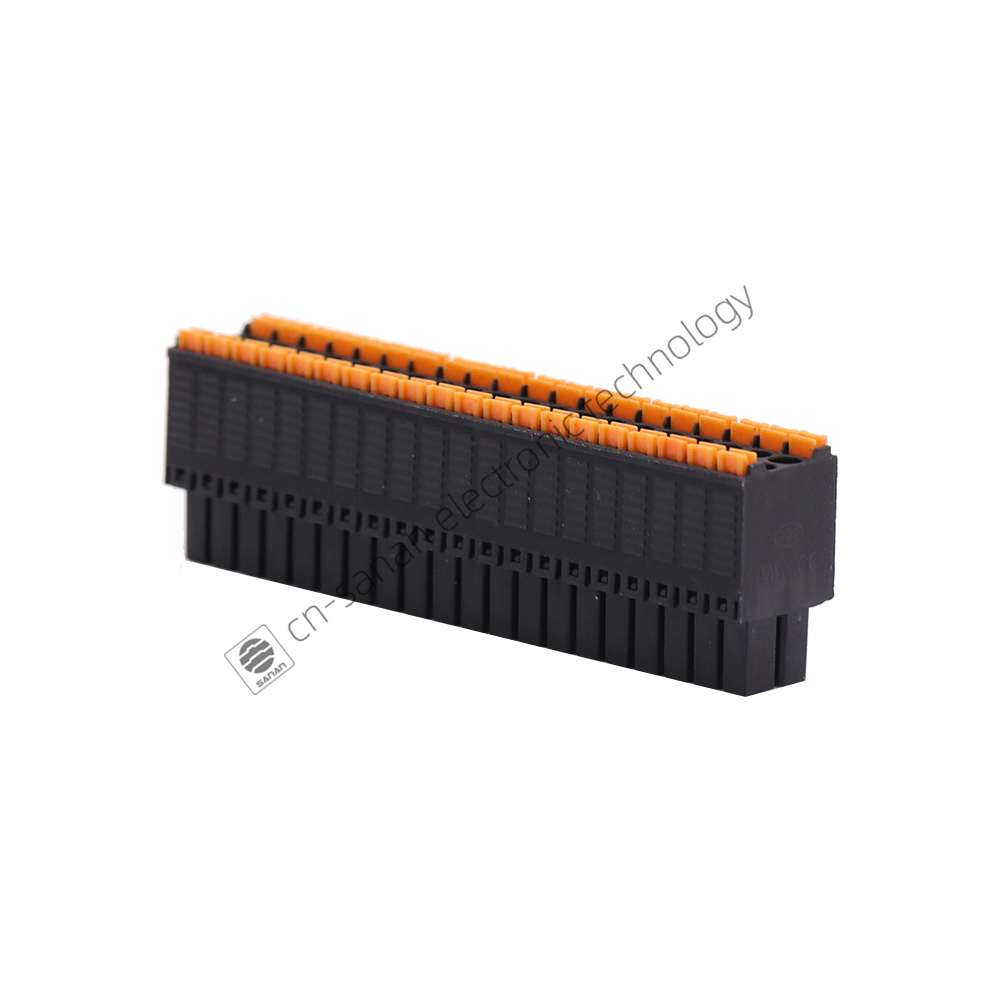

Details Of Spring Male Pluggable Terminal Block
Drawing of Spring Male Pluggable Terminal Block
Packing of Spring Male Pluggable Terminal Block
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping of Spring Male Pluggable Terminal Block
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
-Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
-Port Ningbo port or Shanghai port
- By sea etc
