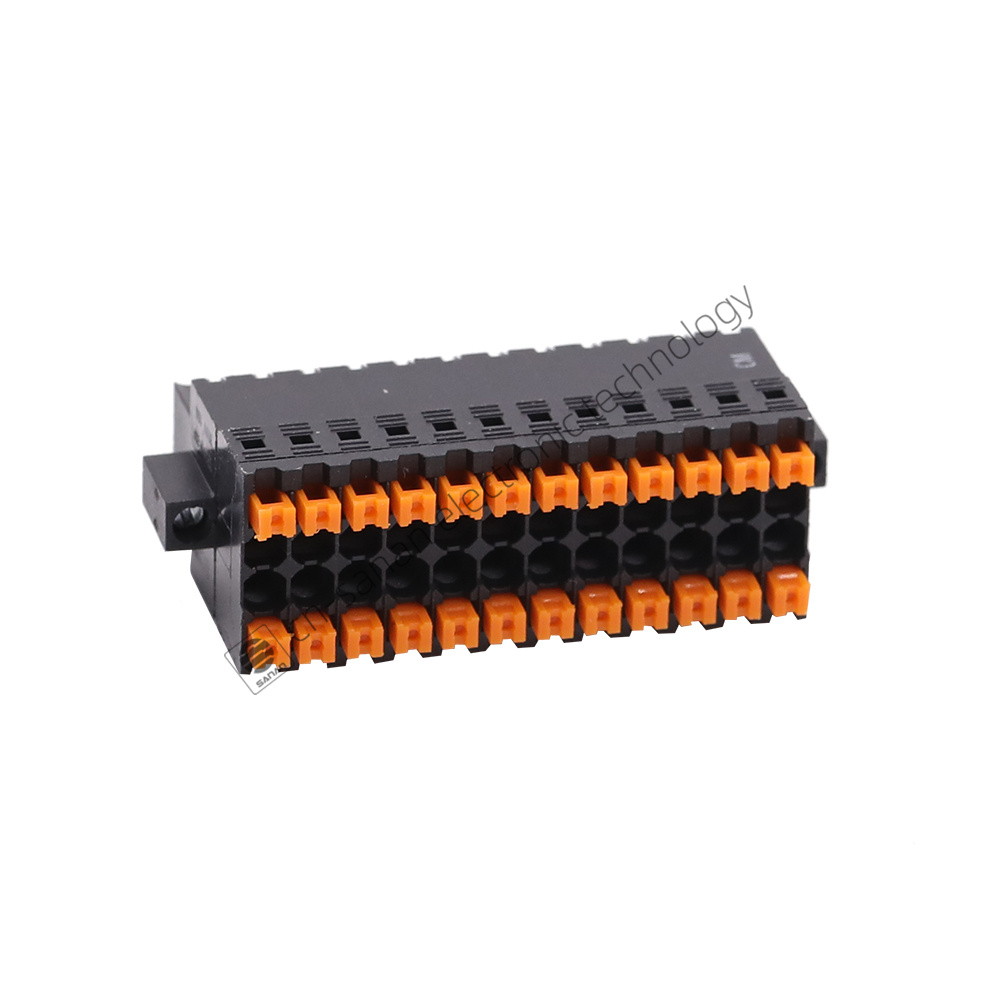

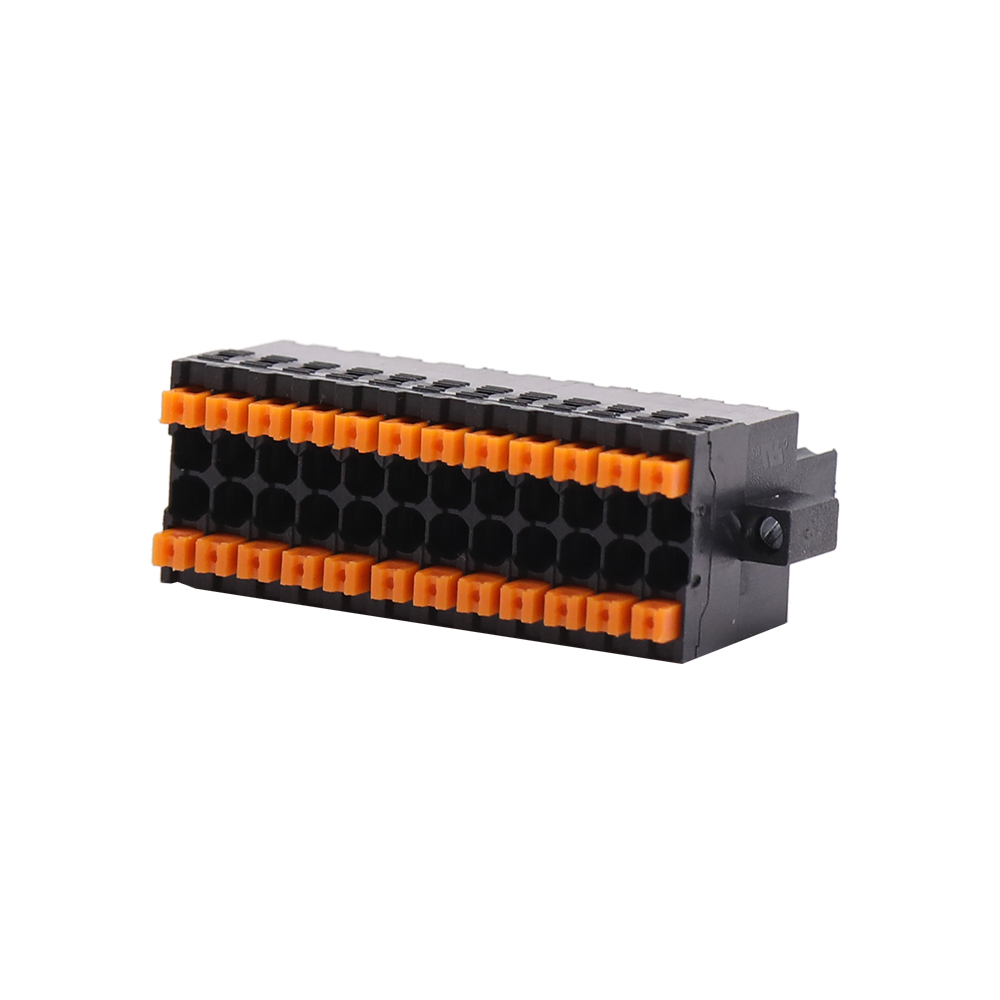

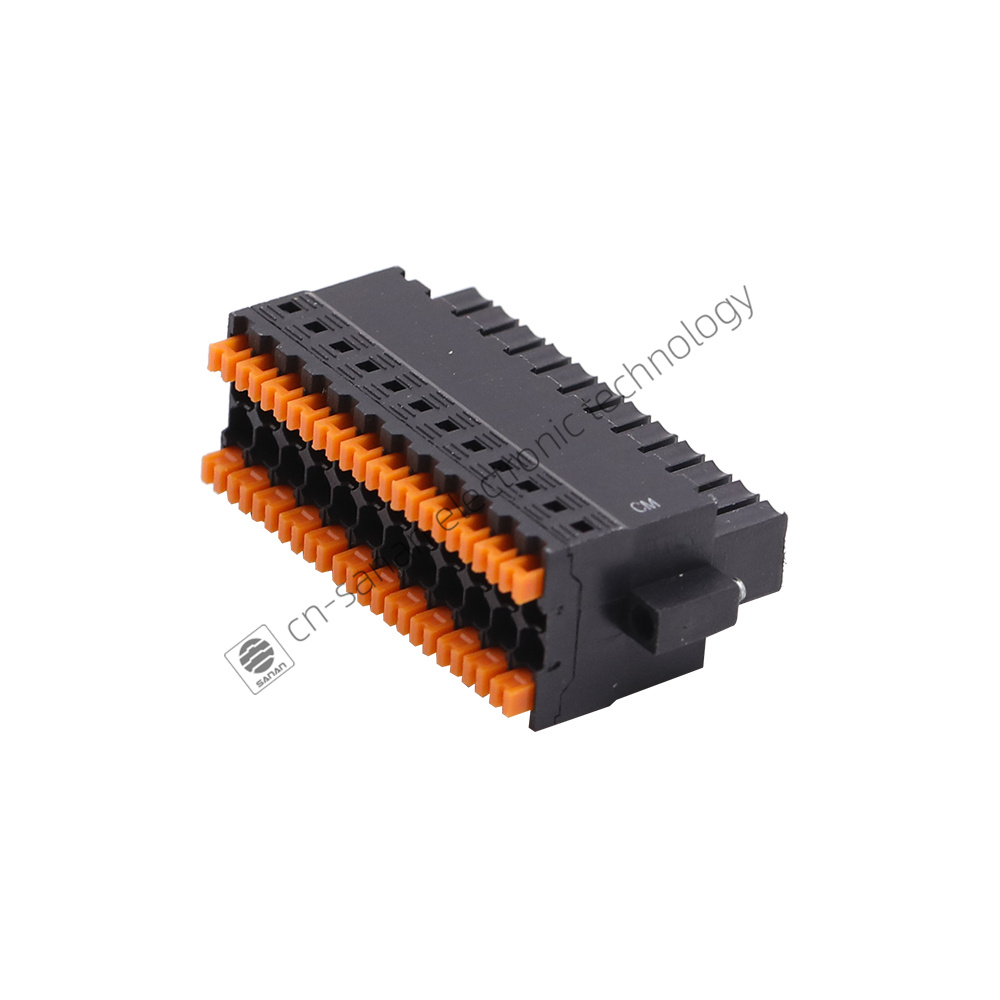

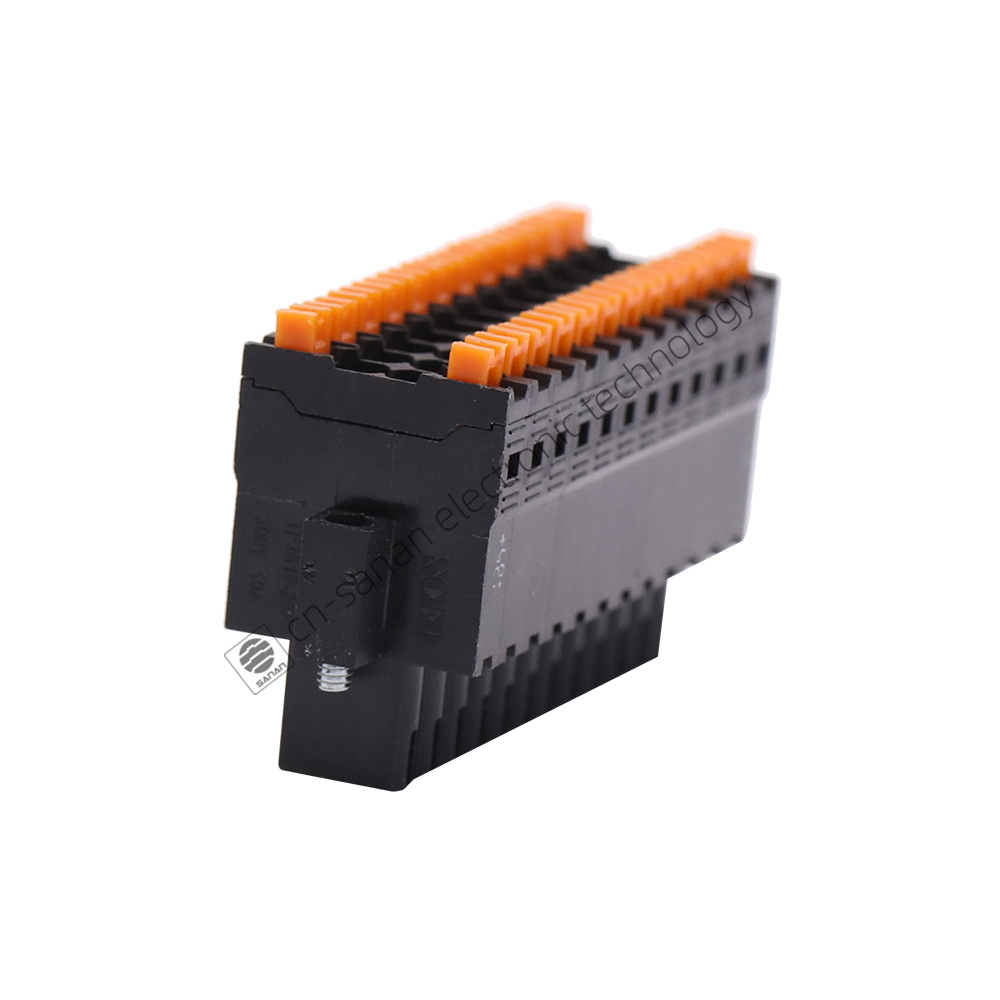

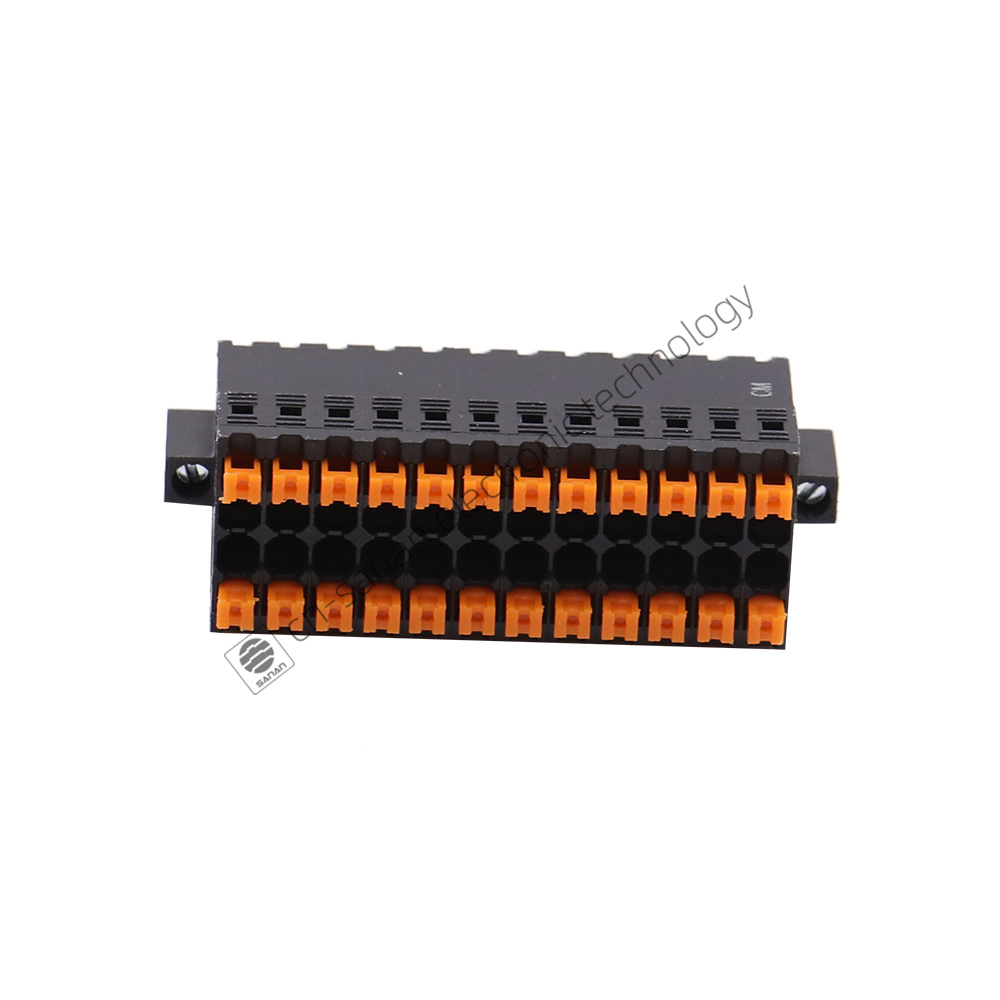

Spring Black Pluggable Terminal Block
Sanan is a leading China Spring Black Pluggable Terminal Block manufacturers. There are multiple kinds of terminal blocks, they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, automation, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation. Our KNH serises are suitable for SMT welding process, to help clients to in the PCB welding.
Model:15ESAKNHBM-3.5-24
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, automation, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation. Our KNH serises are suitable for SMT welding process, to help clients to in the PCB welding.
Feature
●Suitable for SMT welding process
●Universal installation method to ensure a high degree of flexibility in device design
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Multi-layer wire connection can achieve higher contact density
●Universal installation method to ensure a high degree of flexibility in device design
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Multi-layer wire connection can achieve higher contact density
Product specification of Spring Black Pluggable Terminal Block
| Product name | Spring Black Pluggable Terminal Block |
| Material | Plastic / copper |
| Color | Black |
| Contact | Form 4P-40P(accept customization ) |
| Conductor cross section solid | 0.2~1.5mm² |
| AWG | 26~16AWG |
| Pitch | 3.5mm |
| Rated voltage | 300V 8A |
| Strip length | 10mm |
| Pin arrangement | Double-row in a straight line |
| Type of installation | PCB welding |
| Weight | 6g(depends the contacts) |
| MOQ | 100pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Insulation Materials | PA66 |
Details Of Spring Black Pluggable Terminal Block
Drawing of Spring Black Pluggable Terminal Block
Packing of Spring Black Pluggable Terminal Block
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping of Spring Male Pluggable Terminal Block
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
-Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
-Port Ningbo port or Shanghai port
- By sea etc
