Screwless Pluggable Terminal Block 3.5MM Male Type
Sanan Electronics Technology Co., Ltd. is specialized in the development and manufacturing products for electrical control systems since 20020 in China. Based on years of practical experience, we have developed a series of standardized products related to electric control. Independent research and development of all products. The terminal blocks, enclosure module,IO modules,Screwless Pluggable Terminal Block 3.5MM Male Type are widely used in automation equipment. The company has a perfect technical team, first-class business sales, strong production capacity. Products have a unique appearance, design patent, We have a series of strict quality control system to control quality by source&process, bring end-users a better experience without worries.Sananhas obtained the certificate of High-tech Enterprise, ISO9001 Quality System Certification, ISO14001 Environmental Management System Certification, Products passed CE, RoHS, UL certification.Sanan adhering to the "sustainable innovation, permanent management concept, with professional technology, stable product quality to obtain client's praise, Products are exported to Europe, North America, Asia, Australia and other regions and countries, Clients are widespread all over the world.
Model:15ESAKNHM-3.5-18P
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, automation, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation. Our KNH serises are suitable for SMT welding process, to help clients to in the PCB welding.
Feature
●Suitable for SMT welding process
●Universal installation method to ensure a high degree of flexibility in device design
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Multi-layer wire connection can achieve higher contact density
●Universal installation method to ensure a high degree of flexibility in device design
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Multi-layer wire connection can achieve higher contact density
Product specification of Screwless Pluggable Terminal Block 3.5MM Male Type
| Product name | Screwless Pluggable Terminal Block 3.5MM Male Type |
| Material | Plastic / copper |
| Color | Black/green |
| Strip length | 10mm |
| AWG | 26~16AWG |
| Conductor cross section solid | 0.2~1.5mm² |
| Contact | Form 4P-40P(accept customization ) |
| Pitch | 3.5mm |
| Rated voltage | 300V 8A |
| Strip length | 10mm |
| Type of installation | Push-in spring connection |
| Weight | 6g(depends the contacts) |
| MOQ | 100pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Insulation Materials | PA66 |

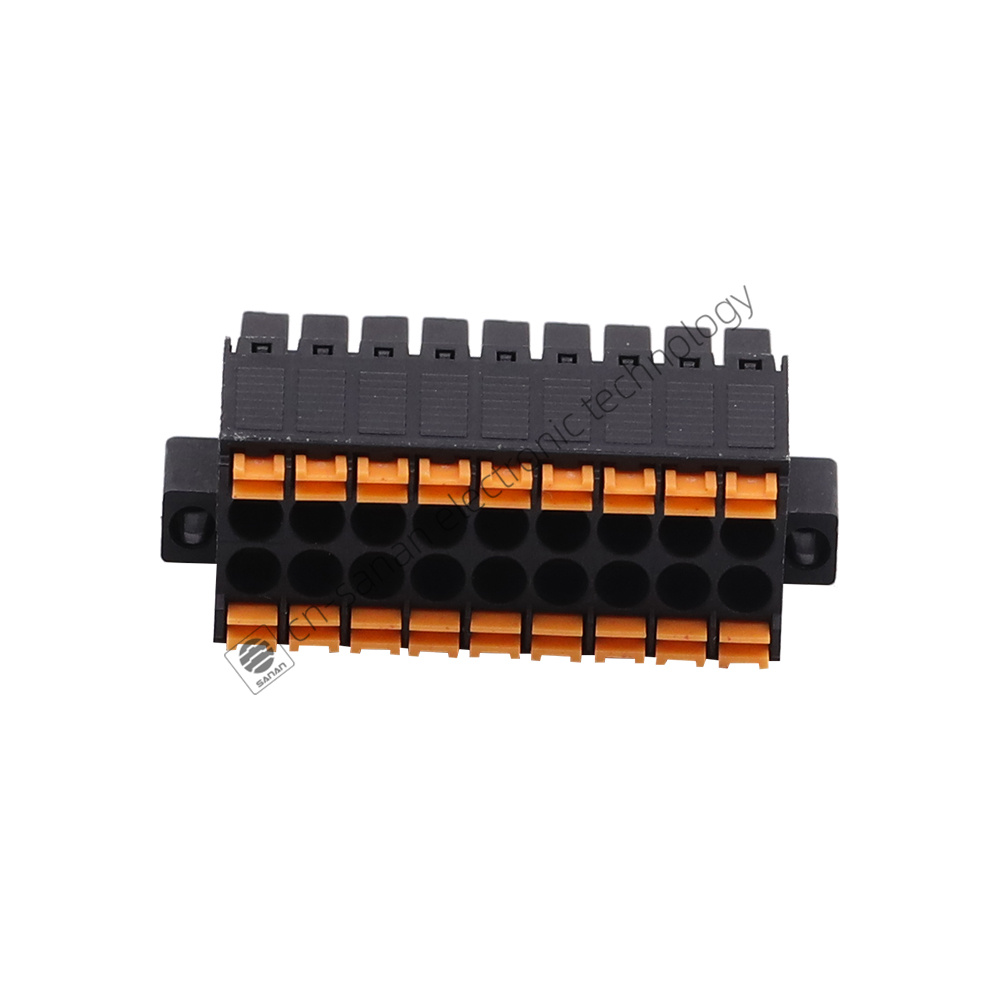

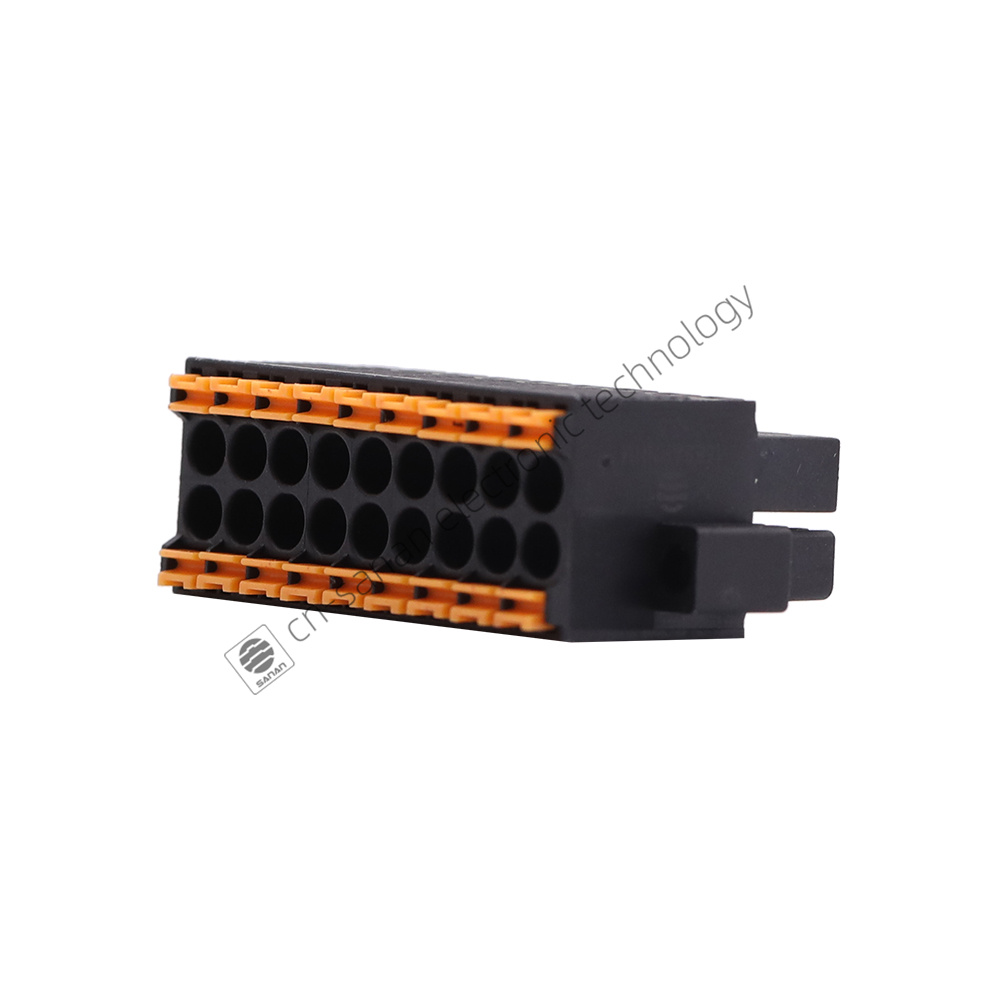

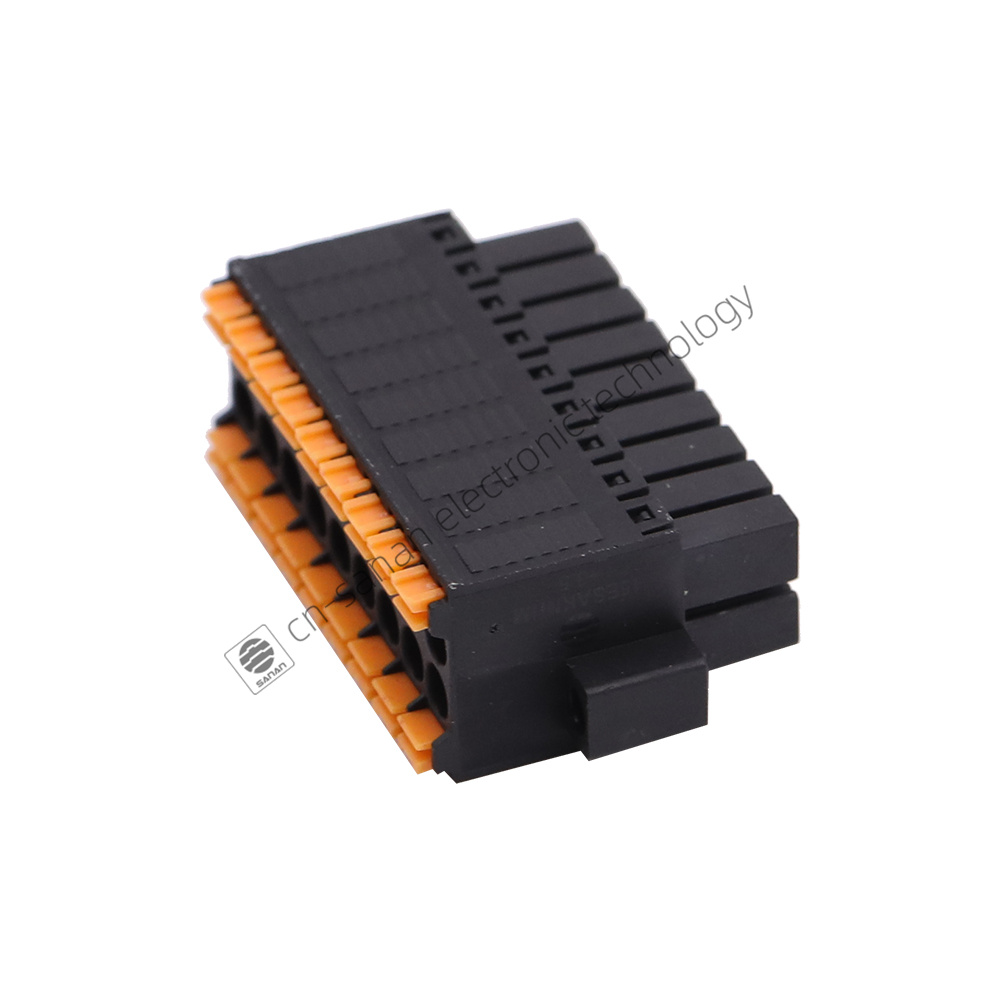

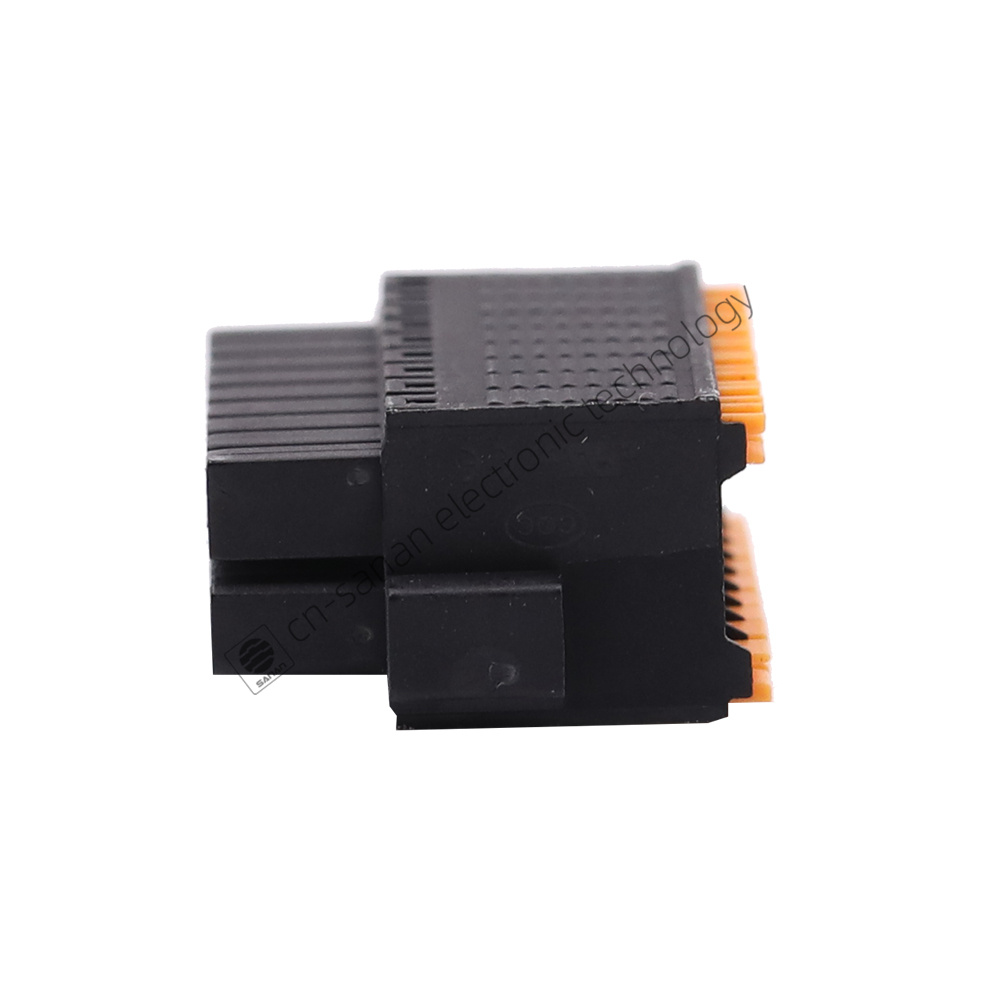

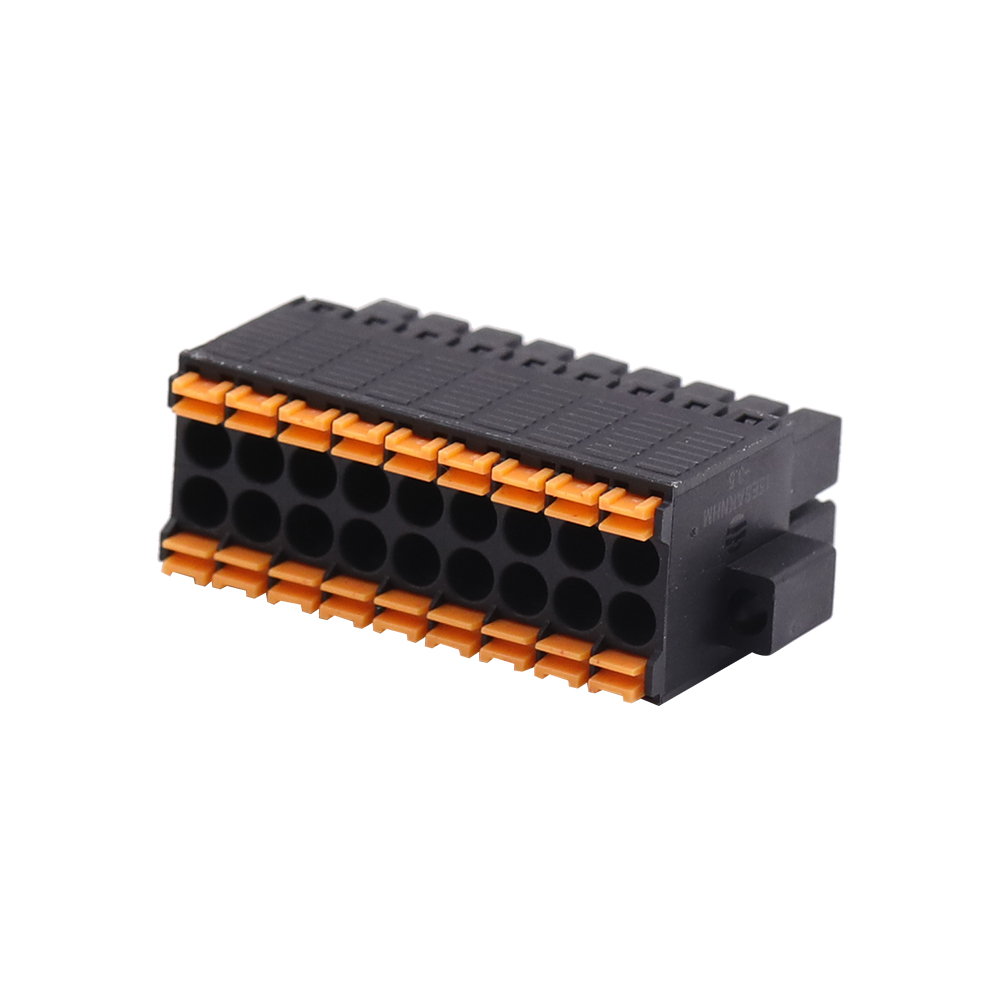

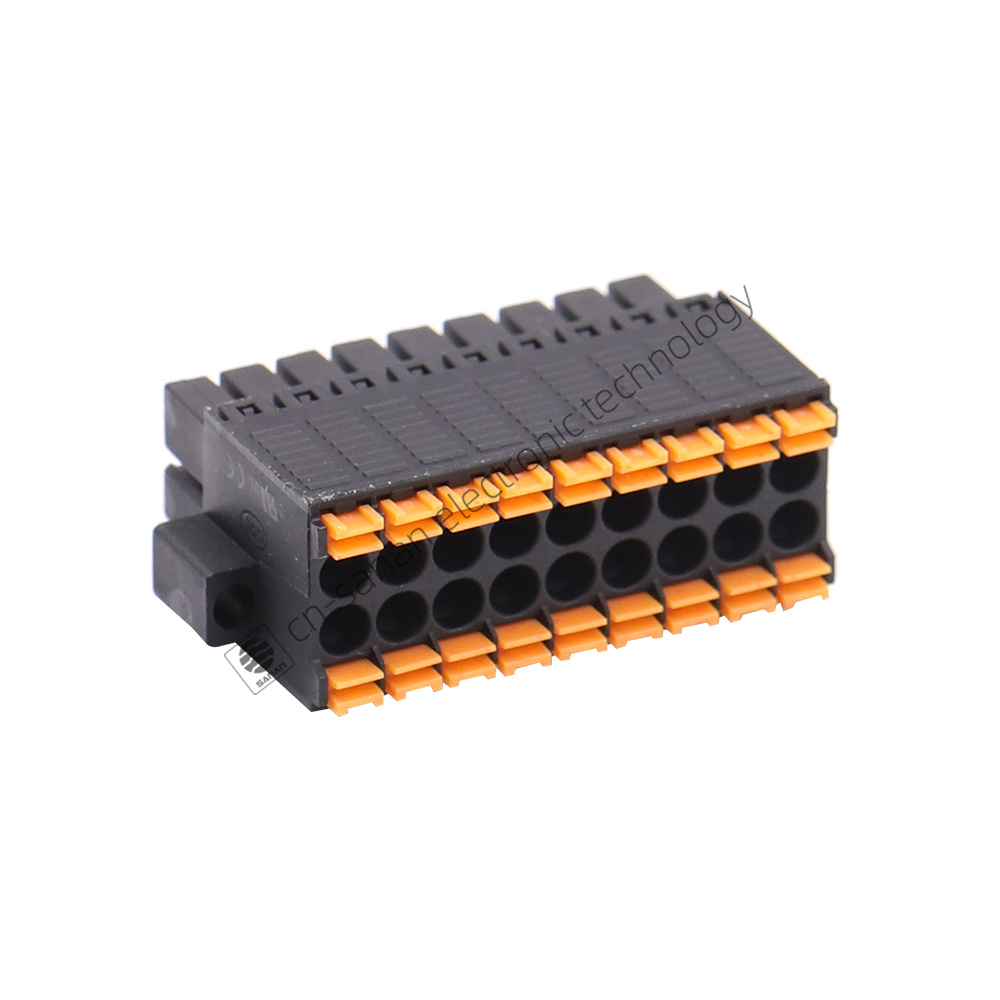

Details of Screwless Pluggable Terminal Block 3.5MM Male Type
Drawing of Screwless Pluggable Terminal Block 3.5MM Male Type
Packing of Screwless Pluggable Terminal Block 3.5MM Male Type
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping of Screwless Pluggable Terminal Block 3.5MM Male Type
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
