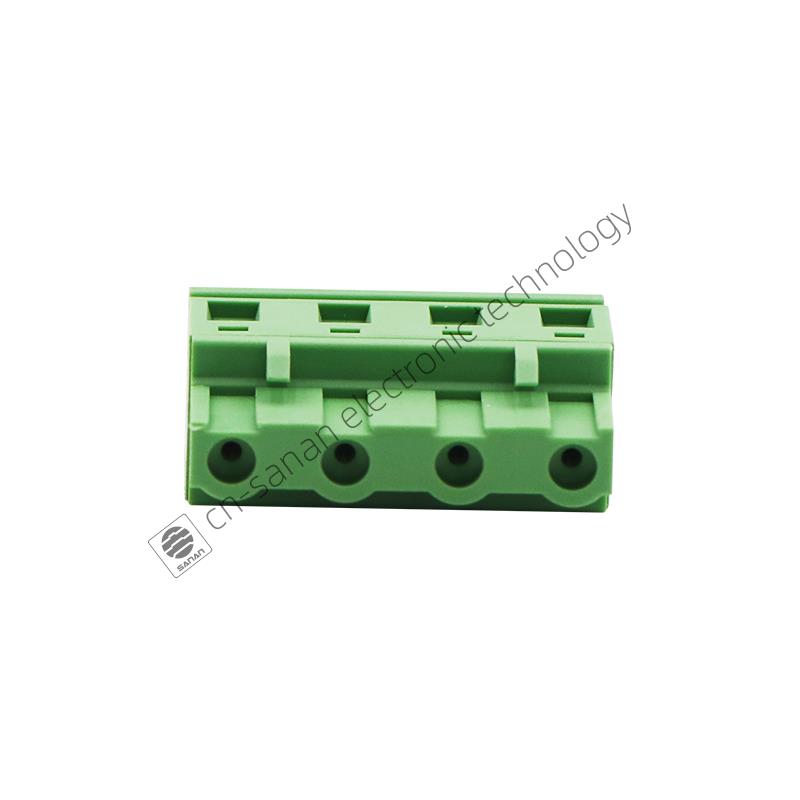

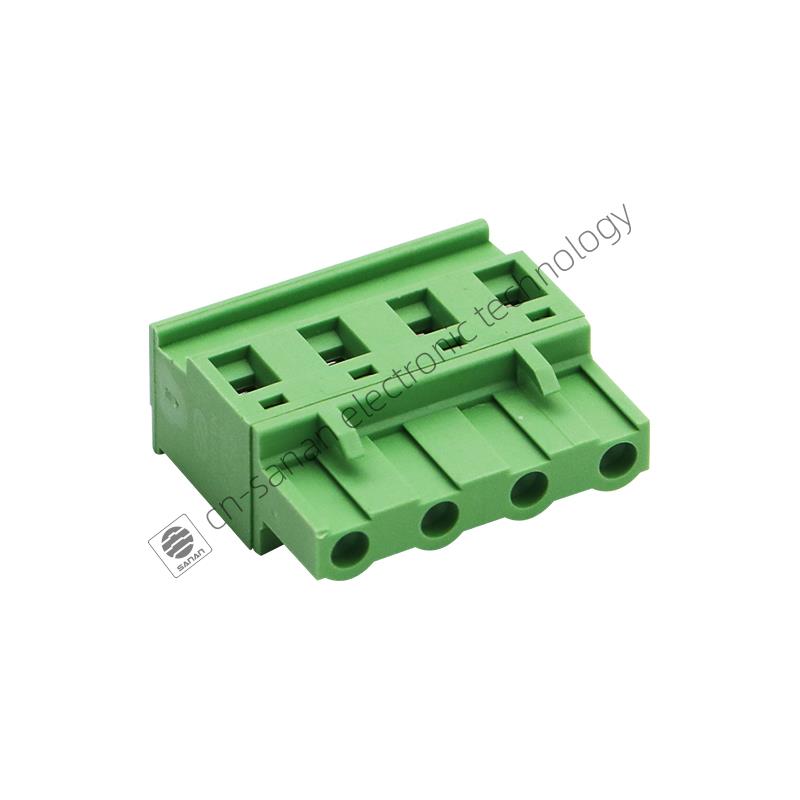

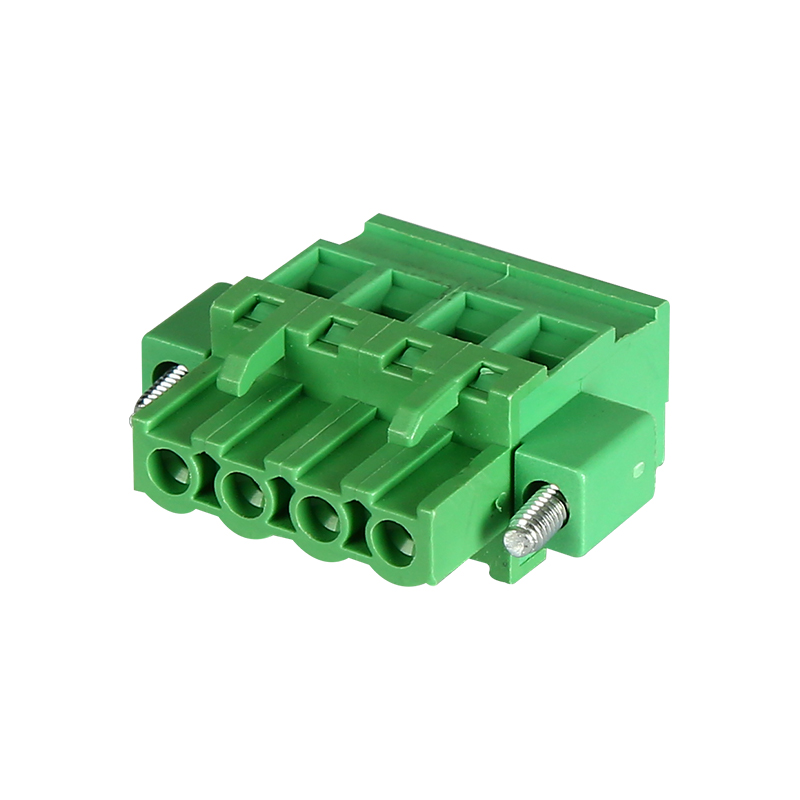

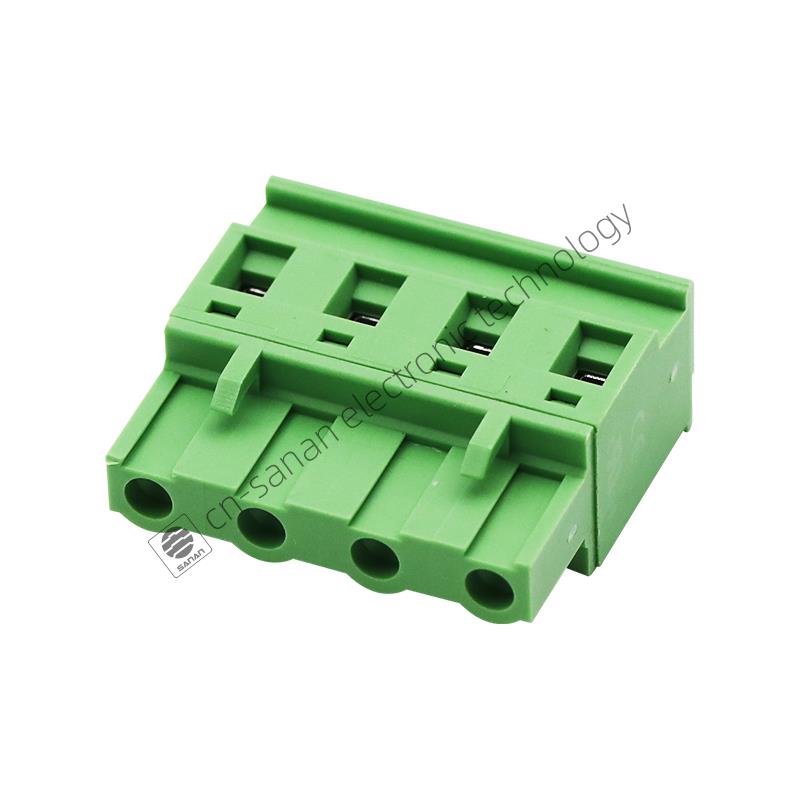

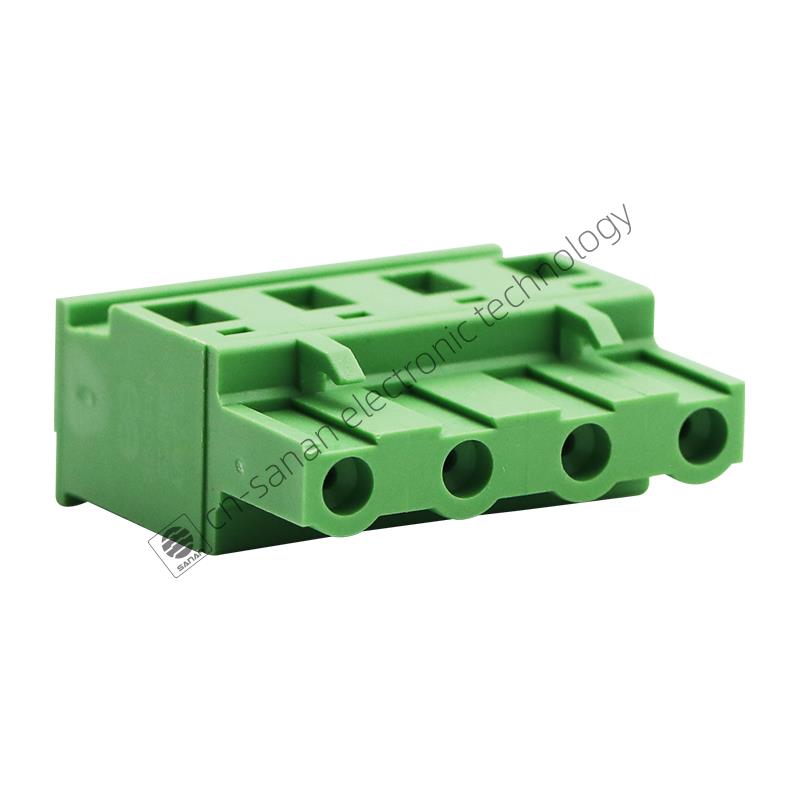

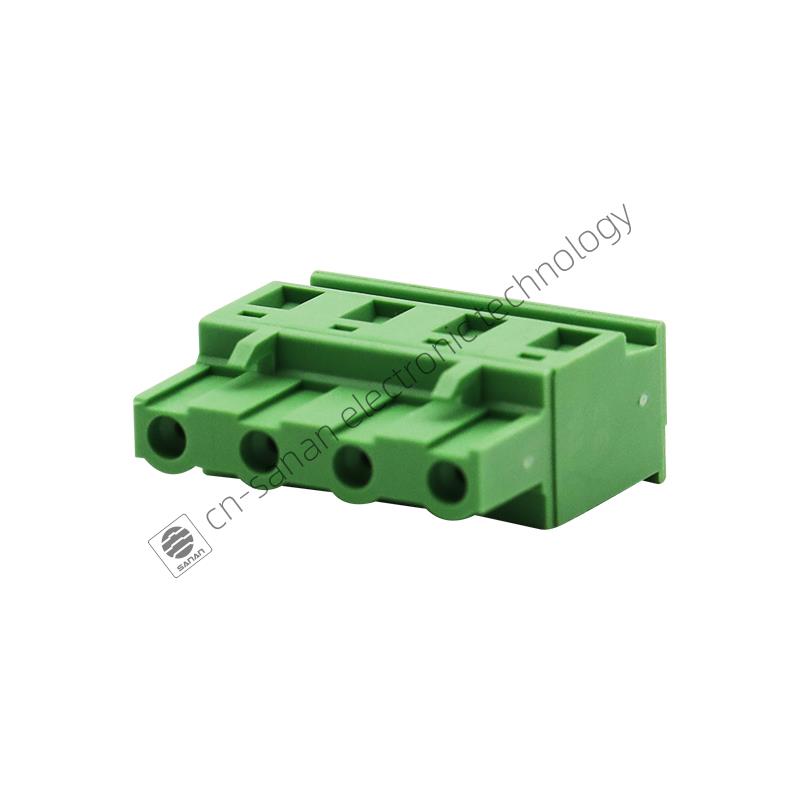

Screw Pluggable Terminal Block 5.0 5.08mm 4P
Professional in the industry automation products, Sanan Electronic Technology Co,Ltd.is a manufacturer in China, offers PLC control housings, Terminal Block, Energy Storage Connector, IO module housings, industrial relay housings and other connector housings, also terminal block connectors is our strong electronic product for customers.Our company possesses advanced world-class processing and testing equipment in development and production of highly precise connectors.Welcome to buy Screw Pluggable Terminal Block 5.0 5.08mm 4P from us. Every request from customers is being replied within 24 hours.
Model:2ESAKA-5.08(5.0)-6P
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, automation, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.
Feature
●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
Product specification of Screw Pluggable Terminal Block 5.0 5.08mm 4P
| Product name | screw pluggable terminal block |
| Material | Plastic / copper |
| Color | Green |
| Contact | Form 2P-23P(accept customization ) |
| AWG | 28~12AWG |
| Strip length | 7mm |
| Rated voltage | 300V 10A/15A UL |
| Rated voltage | 320V 15A IEC |
| Conductor cross section solid | 1.0~2.5mm² |
| Pitch | 5.0/5.08mm |
| Weight | 6g(depends the contacts) |
| MOQ | 500pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Contact zone metal surface | Tin-plated |
| Insulation Materials | PA66 |
Application of Screw Pluggable Terminal Block 5.0 5.08mm 4P
Product details of Screw Pluggable Terminal Block 5.0 5.08mm 4P
Drawing
Packing of pluggable terminal block
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
