PCB Board Pluggable Terminal Block 7.62MM
Ningbo Sanan Electronics Co., LTD. is a professional manufacturer and exporter that specializes in automation system products,IO modeule, din rail enclosure, terminal blocks, production and sales, We offer a wide variety of PCB Board Pluggable Terminal Block 7.62MM, PCB screw terminal blocks, spring terminal blocks, barrier terminal blocks and feed through terminal blocks. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Model:2EASK-7.62-6P
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, Control, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry Control.
Feature
● Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
● Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
● Universal installation method, suitable for various situations
● PA66 material, sturdy, high temperature resistance, flame retardant.
● Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
● Universal installation method, suitable for various situations
● PA66 material, sturdy, high temperature resistance, flame retardant.
Product specification of PCB Board Pluggable Terminal Block 7.62MM
| Product name | PCB Board Pluggable Terminal Block 7.62MM |
| Material | Plastic / copper |
| Color | Green |
| Contact | Form 2P-24P(accept customization ) |
| Type of installation | PCB welding |
| Voltage | 400V/20A |
| Pitch | 7.62mm |
| Stripping length | 7mm |
| Wire range | 28-12AWG |
| Connection method | PCB connection |
| Weight | 7g(depends the contacts) |
| MOQ | 100pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Contact zone metal surface | Tin-plated |
| Insulation Materials | PA66 |

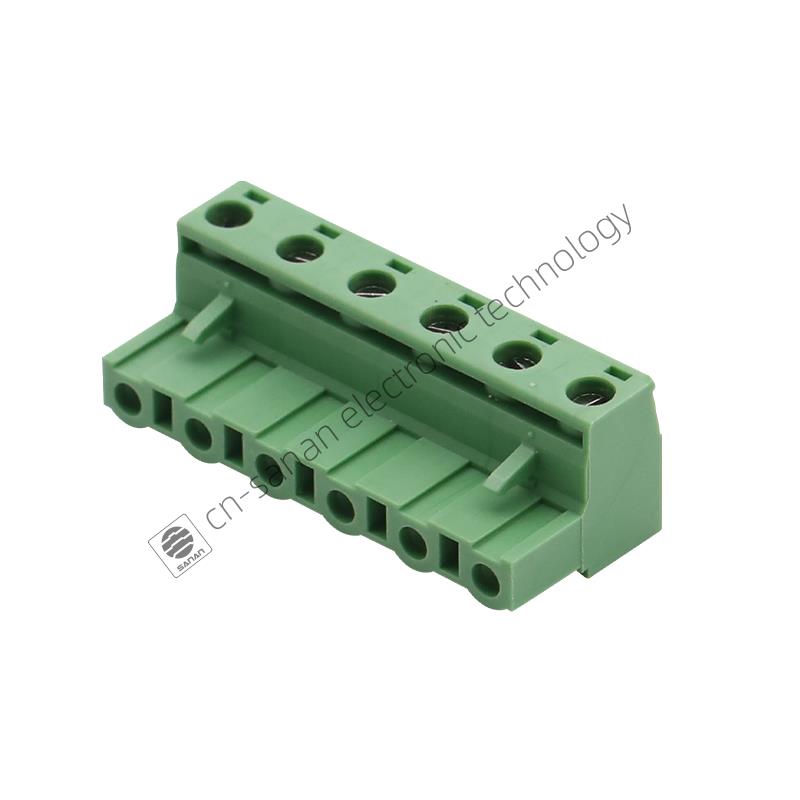

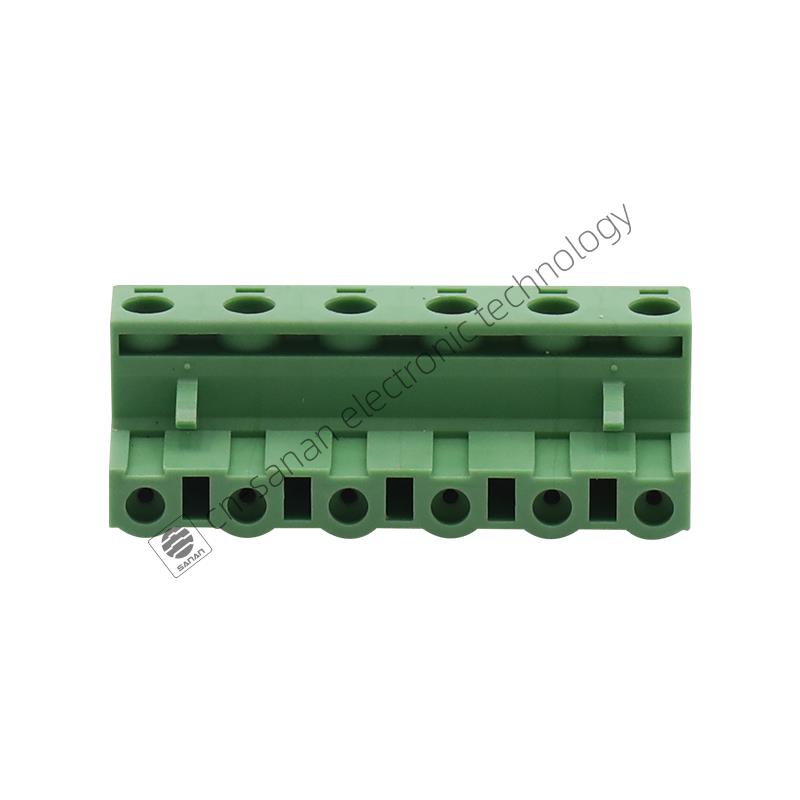

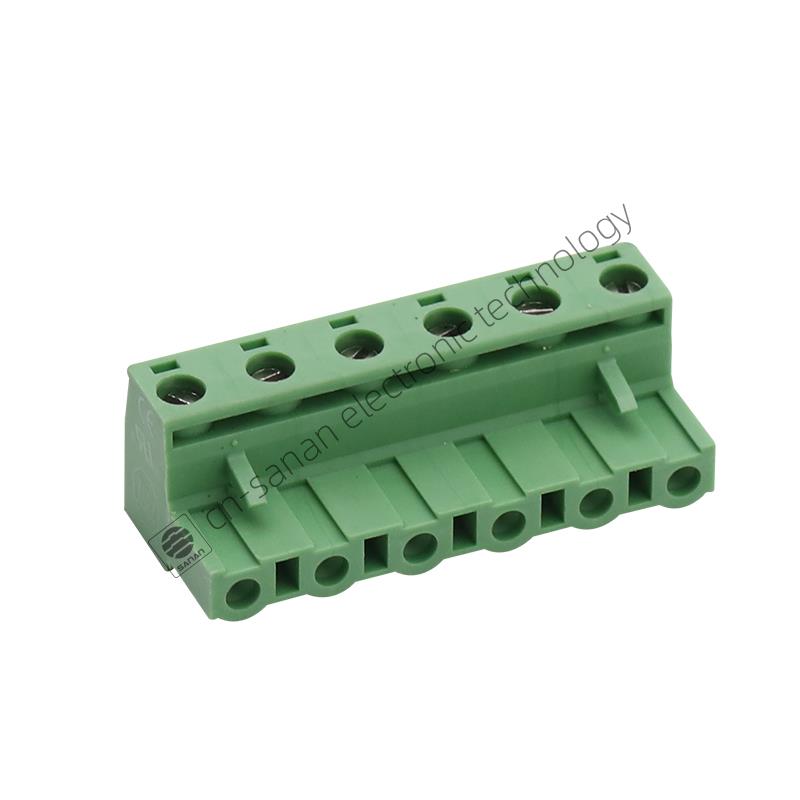

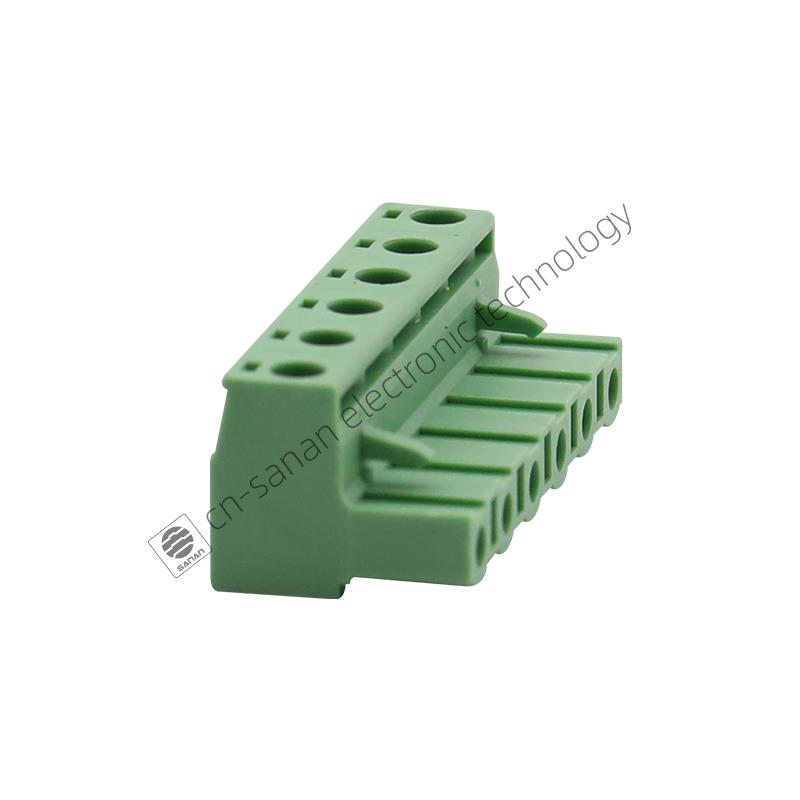

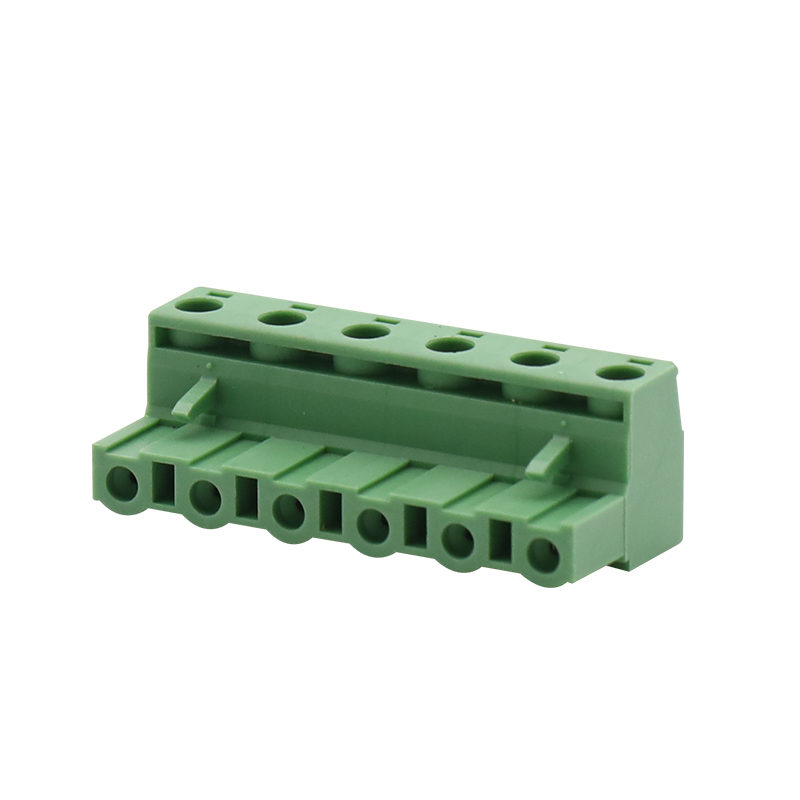

Details of PCB Board Pluggable Terminal Block 7.62MM
Drawing of PCB Board Pluggable Terminal Block 7.62MM
Packing of PCB Board Pluggable Terminal Block 7.62MM
According to Standard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
