A Brief Discussion On PCB Terminal Blocks

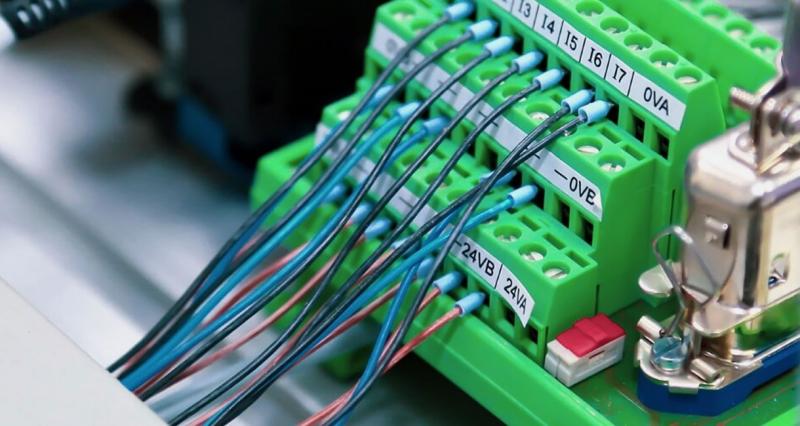

PCB terminal blocks, due to their numerous advantages, are widely used in industrial automation. Their characteristics such as stability, durability, safety, and reduced maintenance requirements help improve system reliability and ensure the long-term stable operation of equipment.

PCB terminal blocks come in various types, typically categorized based on different usage scenarios, connection methods, and installation methods.。

Screw type

 Features: The cable is clamped tightly using screws to form a secure electrical connection. This type of terminal block is suitable for most electrical equipment, especially applications with higher current.

 Applications: Commonly used in electrical control cabinets, distribution boxes, and other similar settings.

 Advantages: Easy to install, reliable contact, and capable of withstanding higher currents.

Spring type

  Features:It uses spring force to clamp the wires, eliminating the need for additional tools. After inserting the cable, the spring automatically tightens.

 Application: Commonly found in some automation equipment, PLC control systems, and modern distribution equipment.

 Advantages: Quick installation, firm fastening, suitable for applications that require frequent disassembly or cable replacement.

We often see a description of the pin pitch for terminal blocks. Today, let's expand on this point.

Pin pitch refers to the distance between two adjacent pins or terminals in fixed terminal blocks (and other connectors), usually measured in millimeters (mm). This is a crucial parameter in the design of terminal blocks and connectors. Below are several reasons why pin pitch is important and its significance:

Standardized Design

Purpose

The standardization of pin pitch allows terminal blocks to be compatible with various devices and circuit boards, ensuring compatibility and interchangeability. A standardized pin pitch simplifies production for manufacturers and reduces incompatibility between different brands and devices. For example, the 2.54mm pin pitch (commonly known as 0.1-inch pitch) is widely used in electronic components and circuit board connections, ensuring proper matching between different components.

Density and Space

The size of the pin pitch determines the spacing between terminals, which in turn affects the device's density and space utilization. In high-density circuit boards or devices, a smaller pin pitch helps reduce the occupied space, allowing more connection points to be added within a limited area. For example, connectors used in high-density circuit boards may adopt pin pitches of 0.8mm or 1.0mm to save space, while connectors for larger components may choose a larger pin pitch, such as 2.54mm.

Electrical Performance

●The pin pitch size affects the electrical characteristics of terminal blocks, including impedance, transmission speed, and current-carrying capacity. A pin pitch that is too small may lead to poor contact or electrical interference, while a pitch that is too large could waste space and increase contact resistance

●For circuits that involve high-speed signal transmission (such as data buses or communication circuits), a smaller pin pitch may be chosen during the design process to reduce signal transmission delay and interference.

Mechanical Strength and Stability

●A larger pin pitch typically means more space between the terminal blocks, allowing for thicker pins or more robust connection structures. This enhances the mechanical strength of the connection, making it suitable for high-current applications or those that require higher mechanical stability. The increased space allows for more durable connections, which can withstand physical stress, vibration, or other mechanical forces more effectively.

●For terminal blocks in applications like automotive or industrial equipment, a larger pin pitch (e.g., 5mm) may be required to ensure stability and firmness in environments subject to vibration or impact. The increased pin pitch allows for more robust connections that can better withstand the mechanical stresses typical in these environments, helping to maintain reliable electrical contact and prevent connection failures.

Adapting to Different Wire Sizes

●The pin pitch of the terminal block should also take into account the specifications of the wire or cable being used. A larger pin pitch allows for the use of thicker wires, making it suitable for high-power or high-current applications. A smaller pin pitch is more suitable for low-power and precision equipment.

●Connectors used for small electronic devices (such as phones or computers) typically choose smaller pin pitches for a compact design, while connectors for high-power devices or power systems opt for larger pin pitches to accommodate higher currents.

Manufacturing and assembly convenience

●Different pin pitches help simplify operations during manufacturing and assembly. For example, a larger pin pitch facilitates plug-and-play operations, making it suitable for manual connections, while a smaller pin pitch is more suitable for automated production lines.

●In the automated production process, terminals with smaller pitch can be easily and precisely welded or assembled by machines.

Adapt to different working environments.

●The choice of pin pitch is also related to the working environment. A larger pin pitch helps provide better heat dissipation and resistance to environmental interference, making it suitable for high-temperature, high-humidity, and other harsh environments; a smaller pin pitch can be used in space-constrained environments.

●In high-end fields such as aerospace or medical devices, connectors with stricter requirements may be used, where the pin pitch design takes factors such as high precision, anti-interference, and miniaturization into consideration.

Pin pitch is a critical parameter in the design of terminal connectors, directly affecting the device's functionality, performance, reliability, and space utilization. Depending on the specific application requirements, selecting the appropriate pin pitch ensures the safety, stability, and compatibility of the connection.
