MCS Terminal Block 5.08MM
Sanan Electronics Technology Co., Ltd. is specialized in the development and manufacturing products for electrical control systems since 2020 in China. Based on years of practical experience, we have developed a series of standardized products related to electric control. Independent research and development of all products. The terminal blocks, MCS Terminal Block 5.08MM，pluggable terminal block, enclosure module,IO modules are widely used in automation equipment. The company has a perfect technical team, first-class business sales, strong production capacity. Products have a unique appearance, design patent, We have a series of strict quality control system to control quality by source&process, bring end-users a better experience without worries.Sananhas obtained the certificate of High-tech Enterprise, ISO9001 Quality System Certification, ISO14001 Environmental Management System Certification, Products passed CE, RoHS, UL certification.Sanan adhering to the "sustainable innovation, permanent management concept, with professional technology, stable product quality to obtain client's praise, Products are exported to Europe, North America, Asia, Australia and other regions and countries, Clients are widespread all over the world.
Model:MC006D-5.08-10P
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, automation, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.
Feature
●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
Product specification of MCS Terminal Block 5.08MM
| Product name | MCS Terminal Block 5.08MM |
| Material | Plastic / copper |
| Color | Grey |
| Contact | Form 2P-16P(accept customization ) |
| AWG | 28~12AWG |
| Strip length | 7mm |
| Conductor cross section solid | 1.0~2.5mm² |
| Rated voltage | 320V 12A UL |
| Pitch | 5.08mm |
| Weight | 7g(depends the contacts) |
| MOQ | 500pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Contact zone metal surface | Tin-plated |
| Insulation Materials | PA66 |

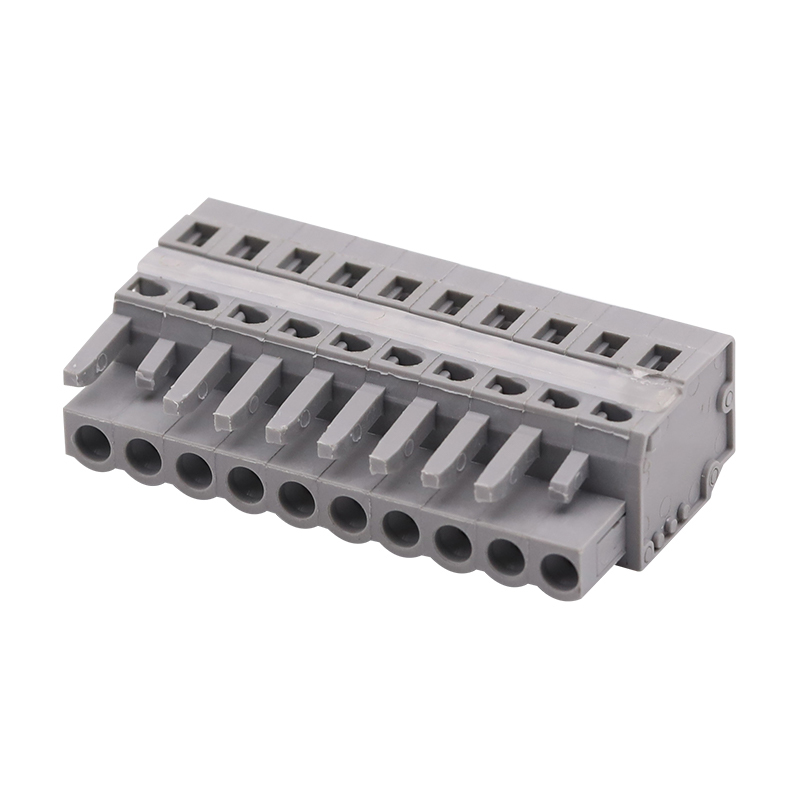

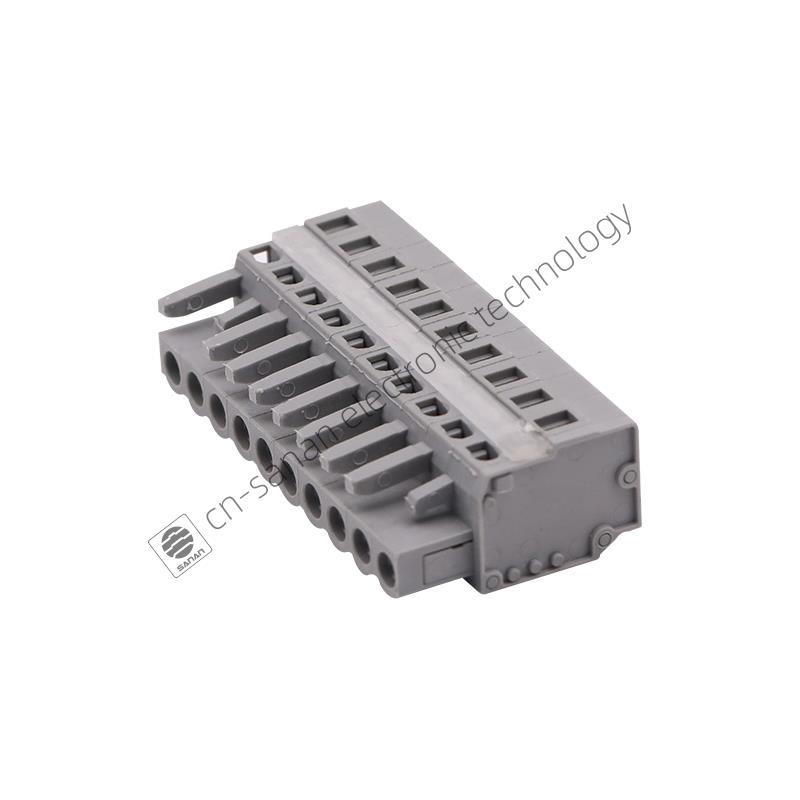

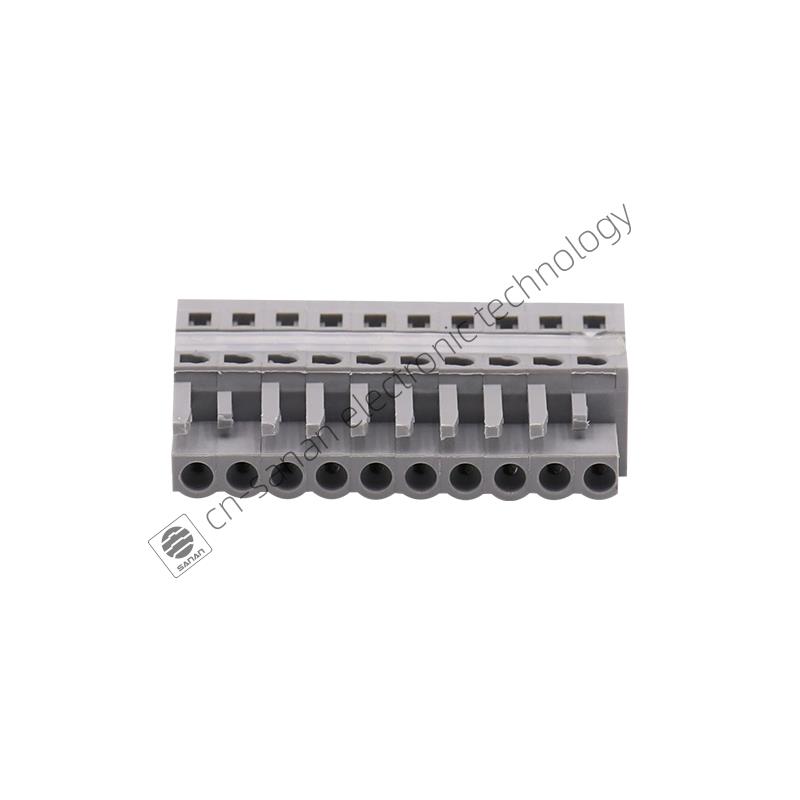

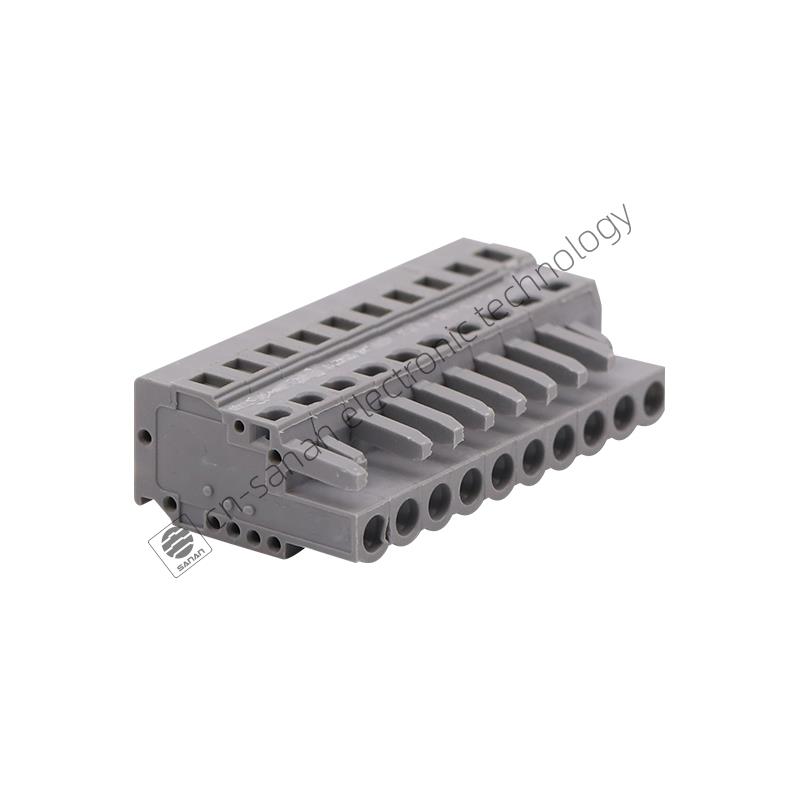

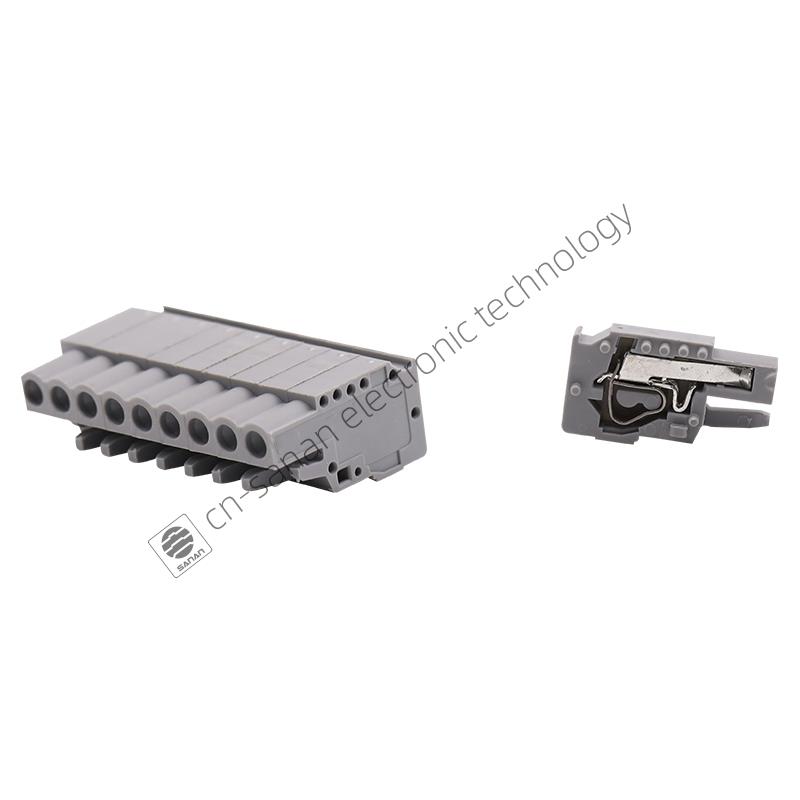

Dtails of MCS Terminal Block 5.08MM
Drawing of MCS Terminal Block 5.08MM
Packing of MCS Terminal Block 5.08MM
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
-Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
-Port Ningbo port or Shanghai port
- By sea etc
