Din Rail Pluggable Terminal Block
Sanan Electronics Co., Ltd. is a professional manufacturer chinese of terminal blocks, PLC IO modules , DIN rail terminal blocks etc . The company has passed ISO9001 and ISO14001 certification, and its products have passed the certification of major national and international institutions, meeting environmental protection requirements. Tens of thousands of Din Rail Pluggable Terminal Block has been exported to Russia, the US and 66 different countries in over 110 locations worldwide.
Model:SAK-5.08-6P
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, automation, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.
Feature
●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
Product specification of Din Rail Pluggable Terminal Block
| Product name | Din Rail Pluggable Terminal Block |
| Material | Plastic / copper |
| Color | Green |
| Contact | Form 2P-16P(accept customization ) |
| AWG | 24~12AWG |
| Strip length | 9mm |
| Conductor cross section solid | 0.2~2.5mm² |
| Rated voltage | 300V 15A |
| Pitch | 5.08mm |
| Weight | 8g(depends the contacts) |
| MOQ | 100pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Contact zone metal surface | Tin-plated |
| Insulation Materials | PA66 |

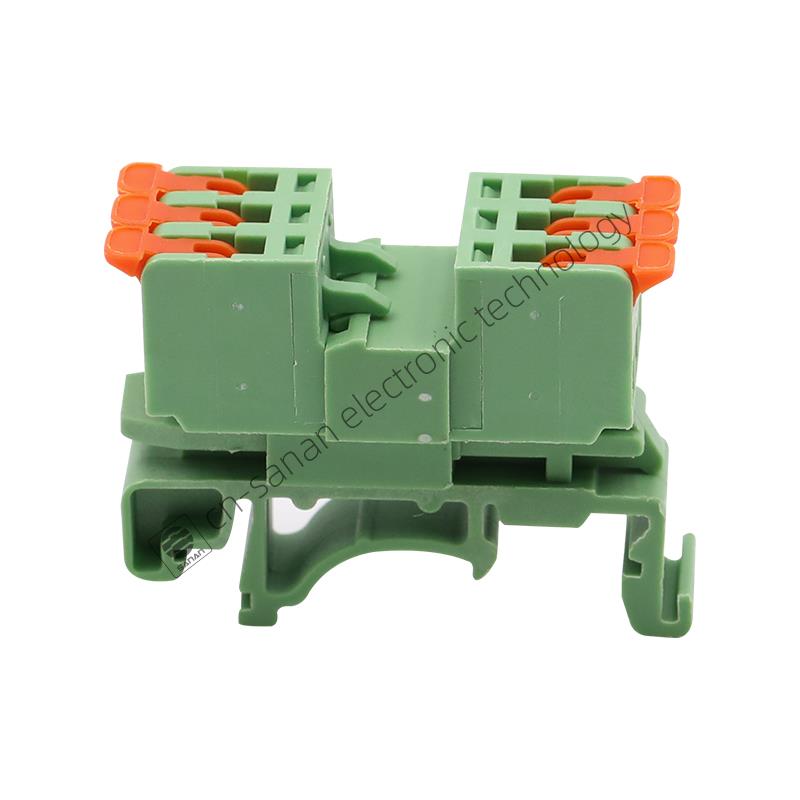

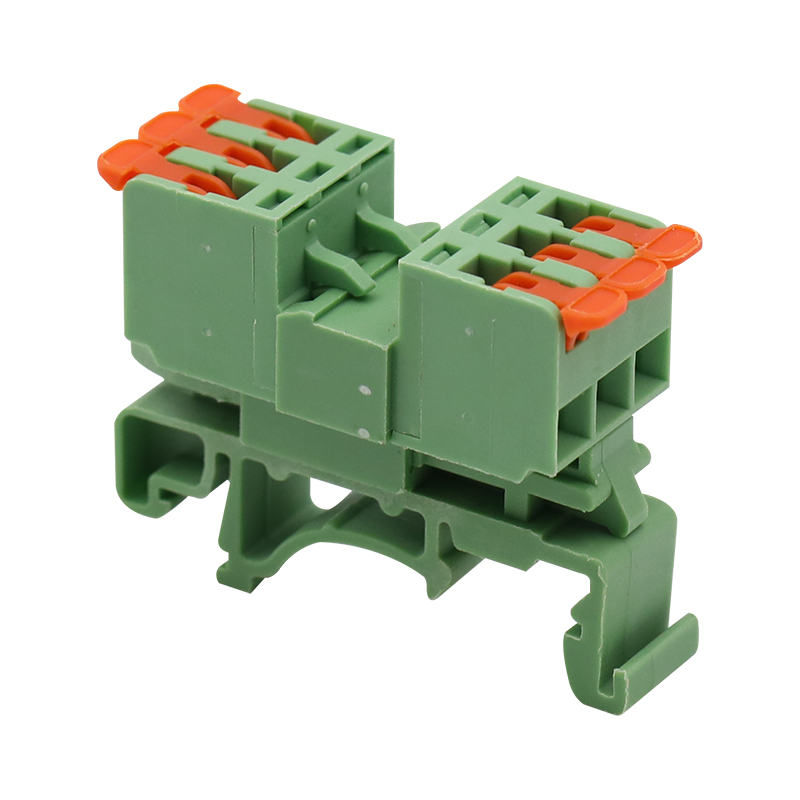

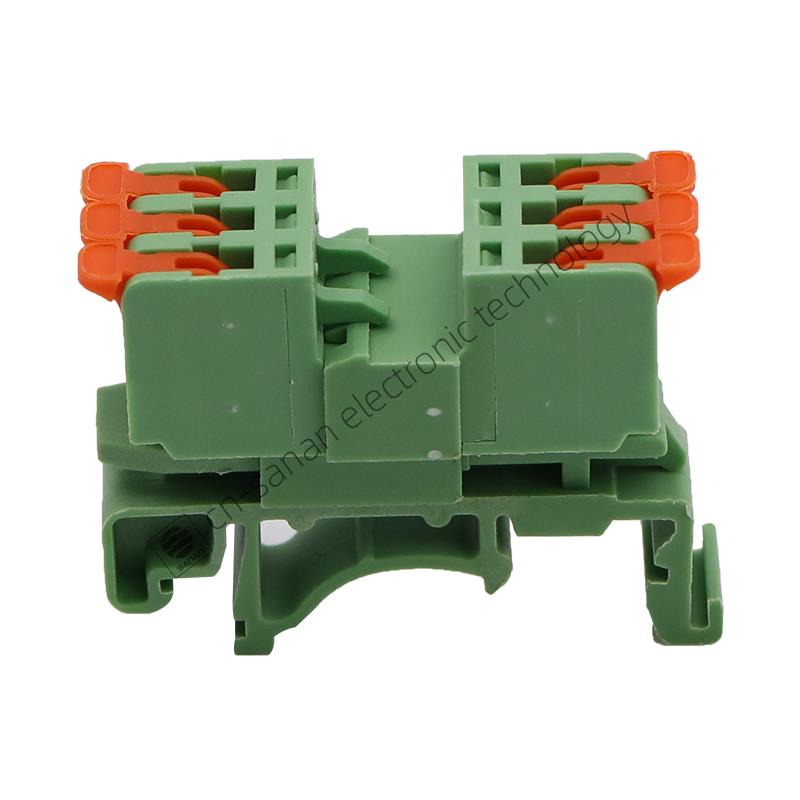

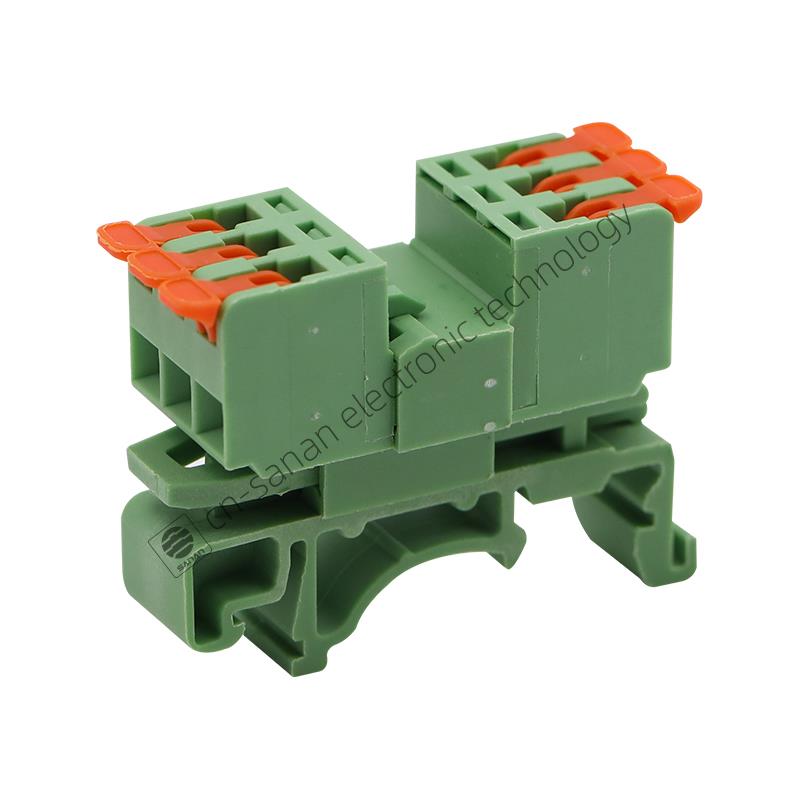

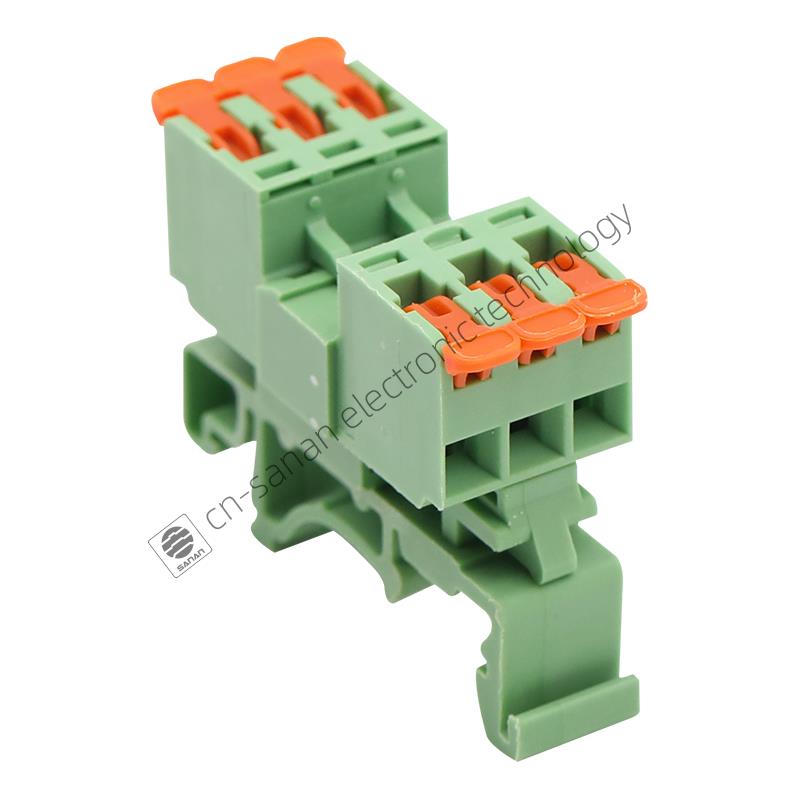

Details of Din Rail Pluggable Terminal Block
Drawing of Din Rail Pluggable Terminal Block
Packing of Din Rail Pluggable Terminal Block
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
-Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
-Port Ningbo port or Shanghai port
- By sea etc
