Model:SA25R-7.62-16P
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, automation, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.
Feature
●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
Product specification of Din Rail Screw Terminal Block
| Product name | Barrier Terminal Block |
| Material | Plastic / copper |
| Color | Black |
| Contact | Form 2P-18P(accept customization ) |
| AWG | 22~14AWG |
| Strip length | 7mm |
| Conductor cross section solid | 1.0~2.5mm² |
| Rated voltage | 300V 15A UL |
| Pitch | 7.62mm |
| Connection method | Screw connection |
| Weight | 7g(depends the contacts) |
| MOQ | 500pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Contact zone metal surface | Tin-plated |
| Insulation Materials | PA66 |

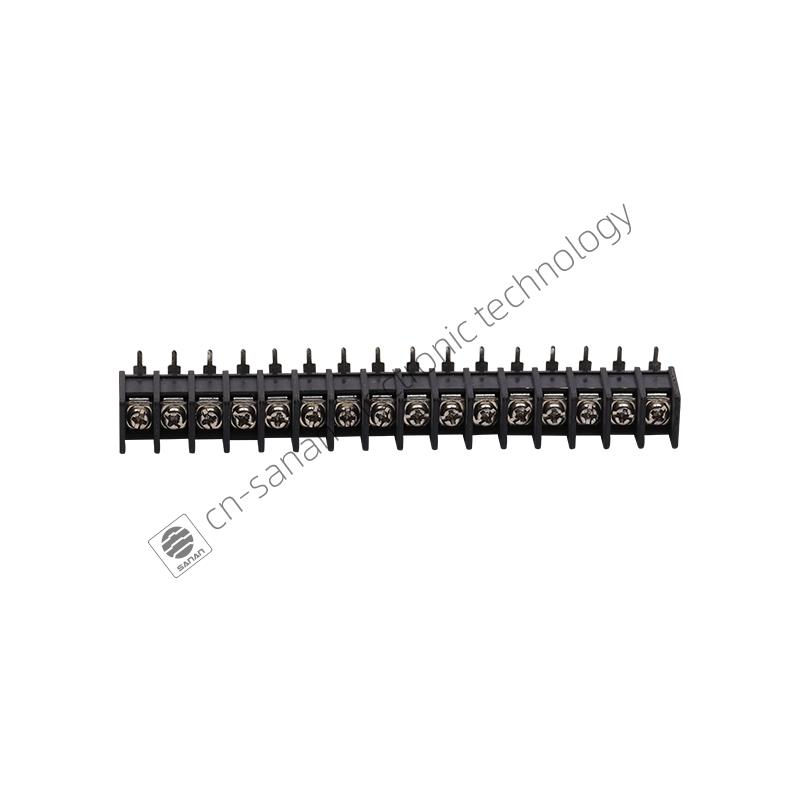

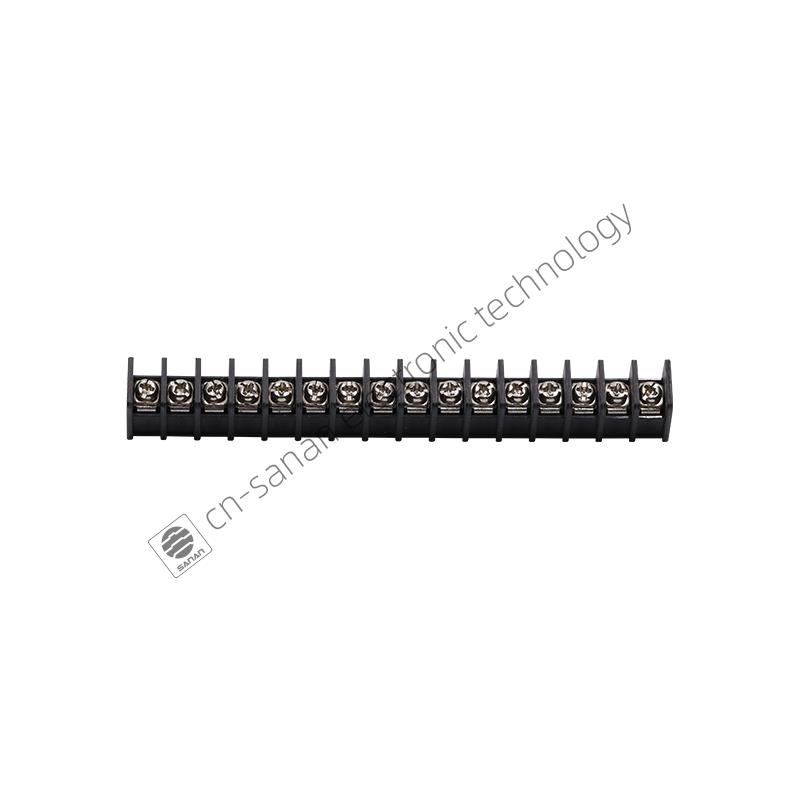

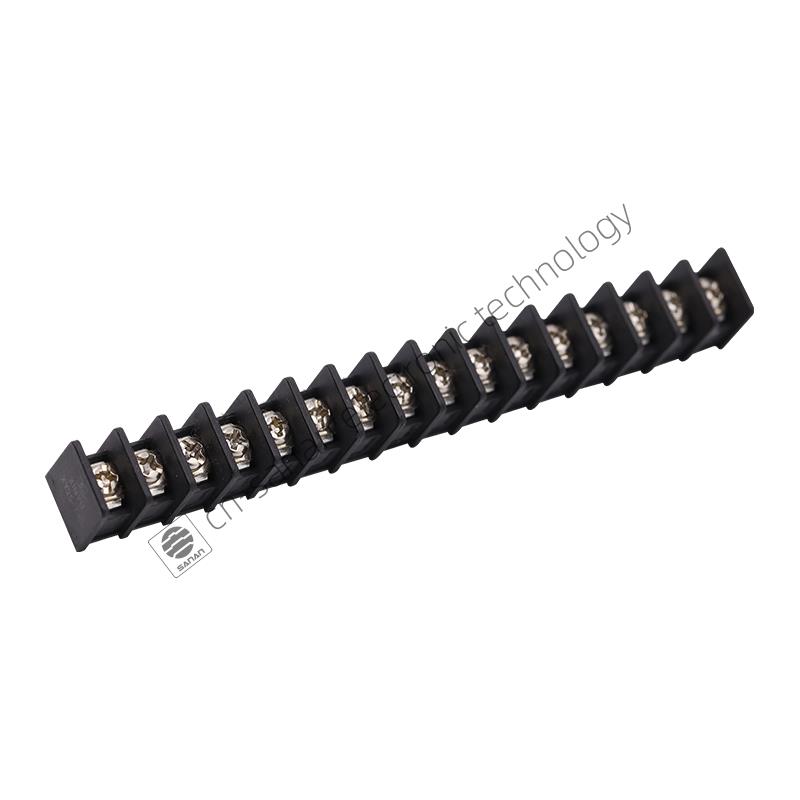

Details of Barrier Terminal Block
Drawing of Barrier Terminal Block
Packing of Barrier Terminal Block
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
-Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
-Port Ningbo port or Shanghai port
- By sea etc
