7P 5.0mm PCB Terminal Block With Screw
Professional manufacturer of all kinds of wire conectors and terminal blocks,Ningbo Sanan Electronics Co., LTD.was founded in 2020 year. Even young,Sanan has 1 factory in Ningbo city of Zhejiang, Shenzherect.We mainly produce terminal blocks, PCB terminal blocks, for example, 7P 5.0mm PCB Terminal Block With Screw and other electrical relative products, for example din rail enclosure, energy storage connector. Sanan has grown into a leading manufacturer with strong R&D strength, rapid growth and large scale in this field.Otherwise, we havepassed TUV Rheinlad ISO9001 quality management system certification, the vast majority of products were got UL, CE, CCC,CSA,CCS certifications,Sanan always keep the promise-all best quality and service for customers! Welcome domestic and foreian customers to cooperate with us.
Model:SA103-5.0(5.08)-7P
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, automation, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.
Feature
●Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
●Universal installation method, suitable for various situations
●PA66 material, sturdy, high temperature resistance, flame retardant.
Product specification of 7P 5.0mm PCB Terminal Block With Screw
| Product name | 7P 5.0mm PCB Terminal Block With Screw |
| Material | Plastic / copper |
| Color | Green |
| Contact | Form 2P-10P(accept customization ) |
| AWG | 30~14AWG |
| Strip length | 6mm |
| Rated voltage | 300V 20A UL |
| Rated voltage | 250V 24A IEC |
| Conductor cross section solid | 0.2~2.5mm² |
| Pitch | 5.0/5.08mm (accept customization ) |
| Weight | 8g(depends the contacts) |
| MOQ | 500pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Contact zone metal surface | Tin-plated |
| Insulation Materials | PA66 |
Application of 7P 5.0mm PCB Terminal Block With Screw

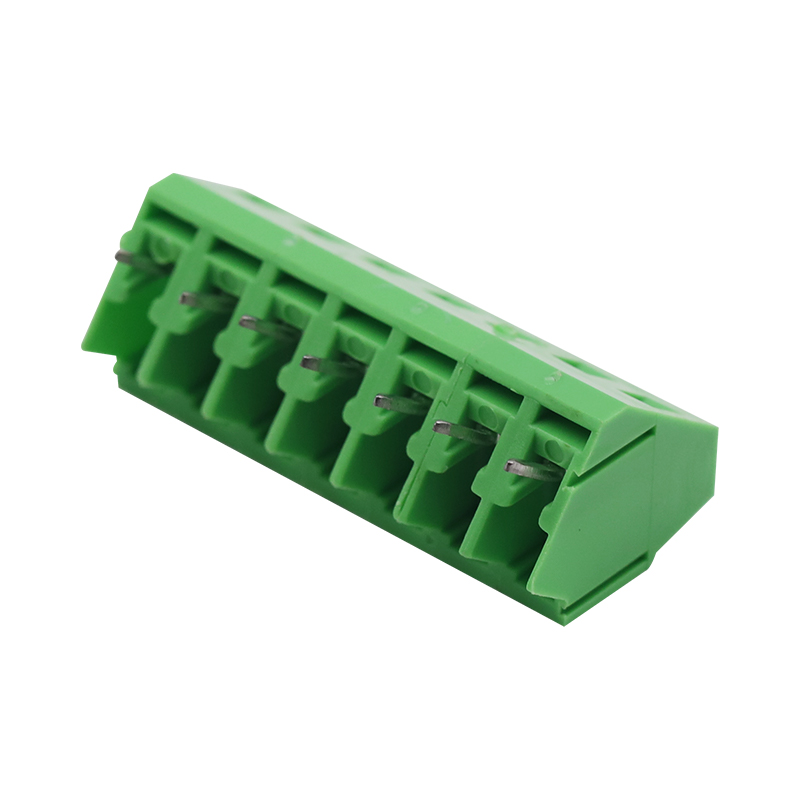

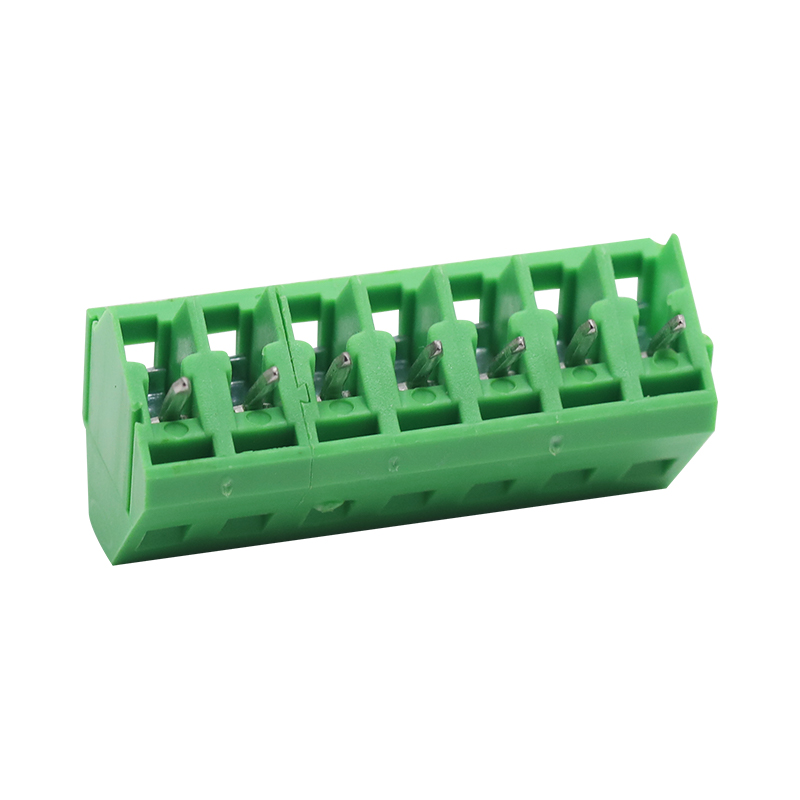

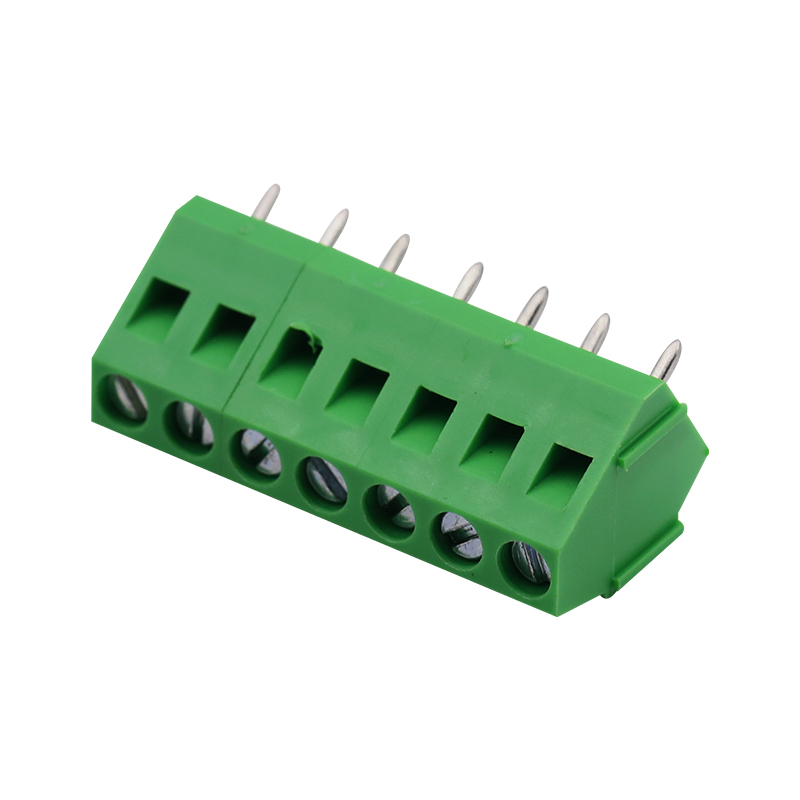

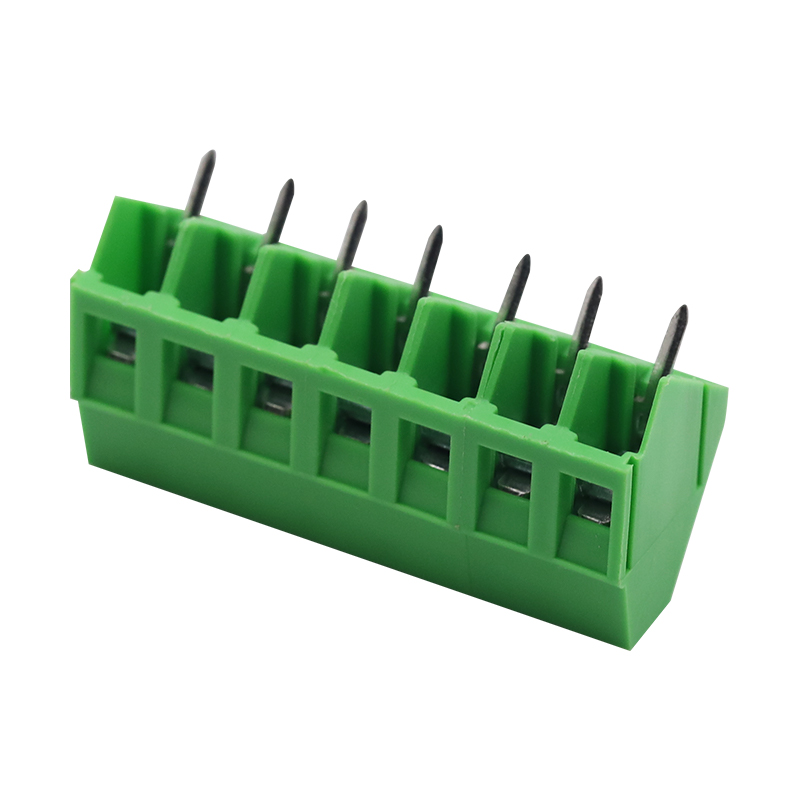

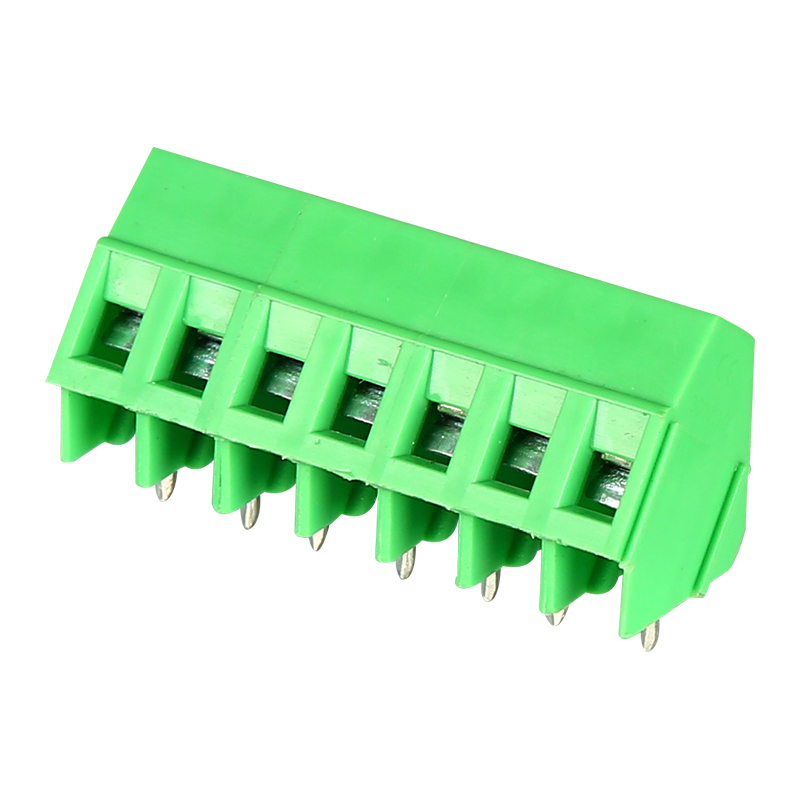

Product details of 7P 5.0mm PCB Terminal Block With Screw
Drawing of 7P 5.0mm PCB Terminal Block With Screw
Packing of 7P 5.0mm PCB Terminal Block With Screw
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
