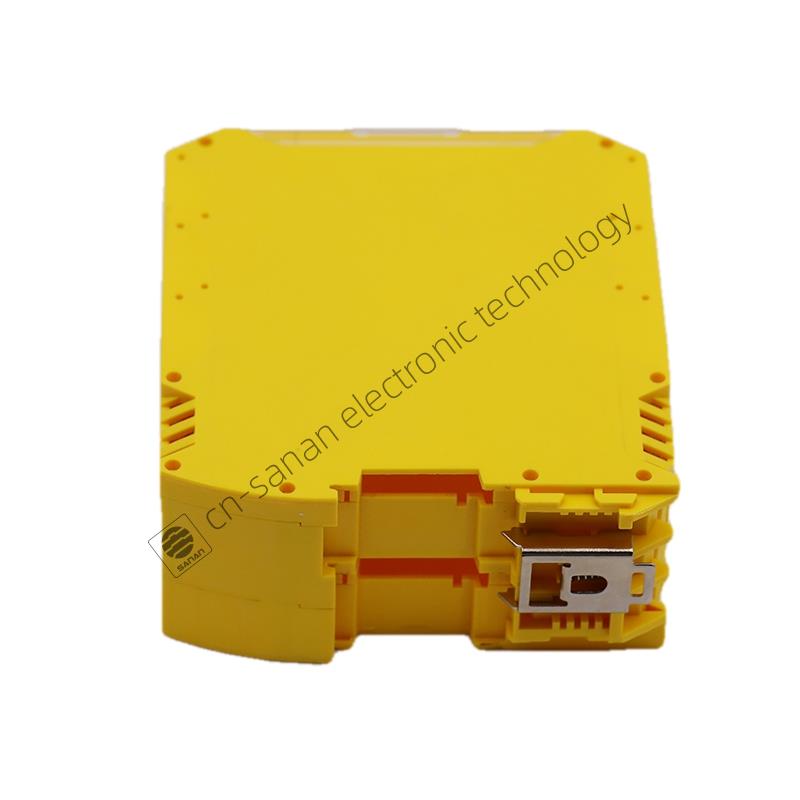

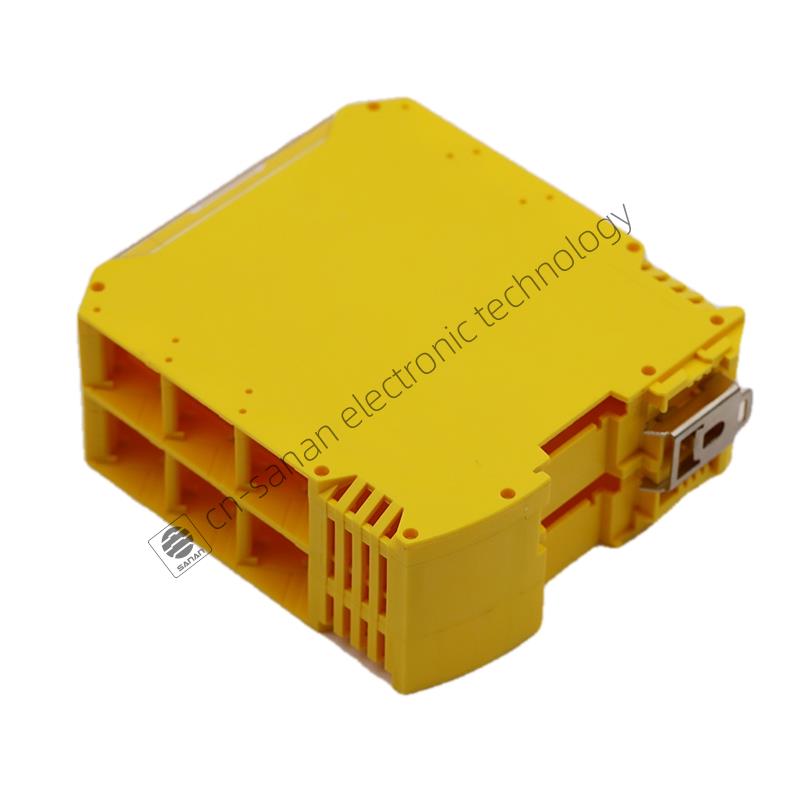

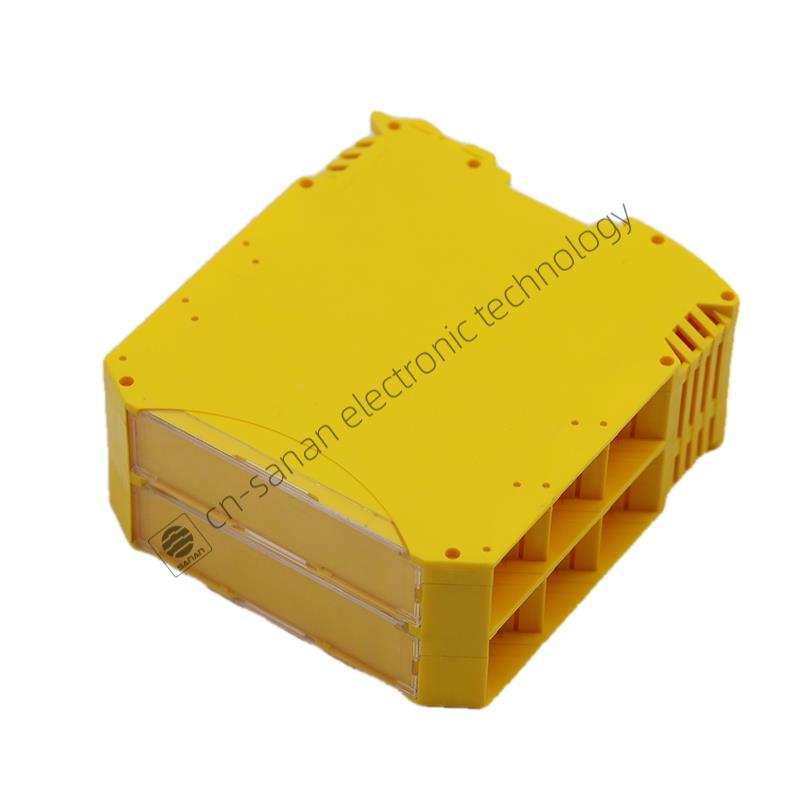

DIN Rail Module Enclosure For PCB Terminal Block
Model：SFMEXBY4500
Have you heard about module housing enclosure? We are proud to say that Sanan,a Chinese manufacturer, has a very deep experience in manufacturing DIN Rail Module Enclosure For PCB Terminal Block. We can provide customers with a variety of customized solutions and ensure high quality and efficiency.The strength of our products is not only their excellent functionality, but also their ability to help partners develop sustainable applications that are more efficient and cost-effective.
Send Inquiry PDF DownLoad
Product Description
The development of automation has created an increasing demand for DIN Rail Industrial Automation Module Housing Enclosure.DIN rail housings support individual design and can provide design-oriented solutions for different electronic products.We offer these enclosures to provide adequate protection for electronic equipment and smooth transmission of current signals to the control room under harsh environmental conditions.Thanks to a variety of different connection technologies,electronic module housings are ideal for many applications in equipment and system manufacturing.
Feature
●Modular design
●Can be mounted on DIN rail
●Diverse connection technologies

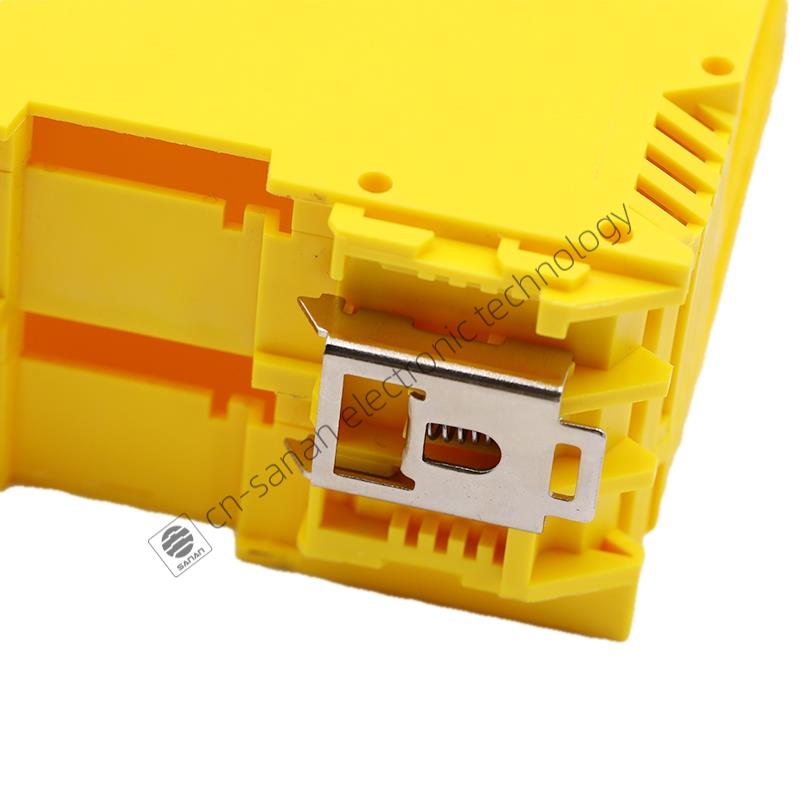

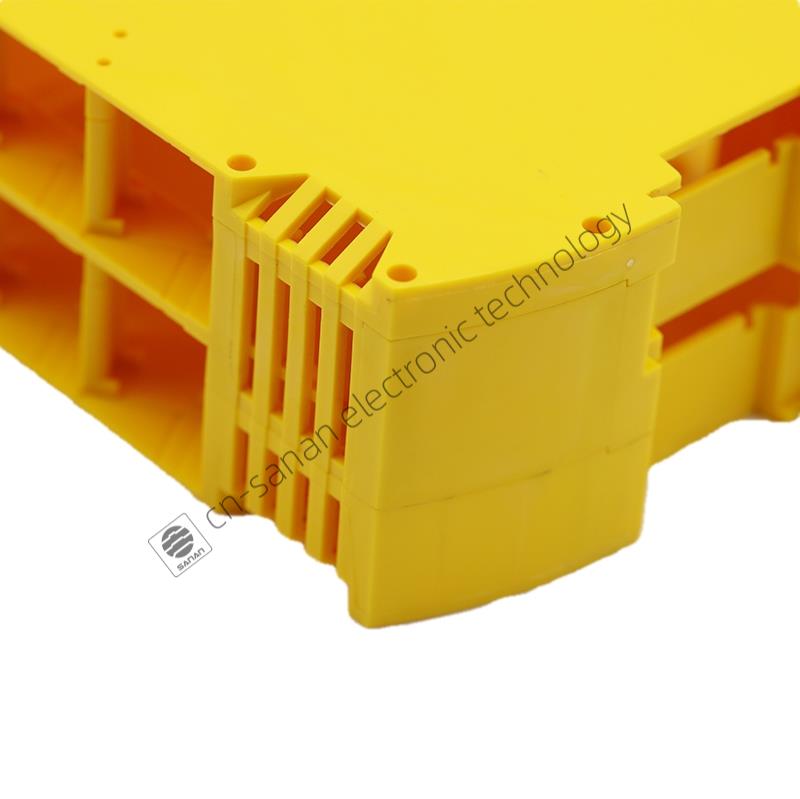

●With metal foot catch,tall design,with vents
●Mating bus connectors available
●Customized service according to the actual needs of customers
Product specification of DIN Rail Module Enclosure For PCB Terminal Block
| Product name | DIN Rail Module Enclosure For PCB Terminal Block |
| Material | Plastic PA66 |
| Color | Yellow |
| Size | 113*99.4*45.8mm |
| Flammability rating | V0 |
| IP class | IP20 |
| Working temprature | -40℃-85℃ |
| Mounting type | DIN rail mounting |
| Whether flam retardant | Yes |
| Connection levels | 6(Both sides) |
| Maximum number of connections | 48 |
| MOQ | 100pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
Application of DIN Rail Module Enclosure For PCB Terminal Block
Packing
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
