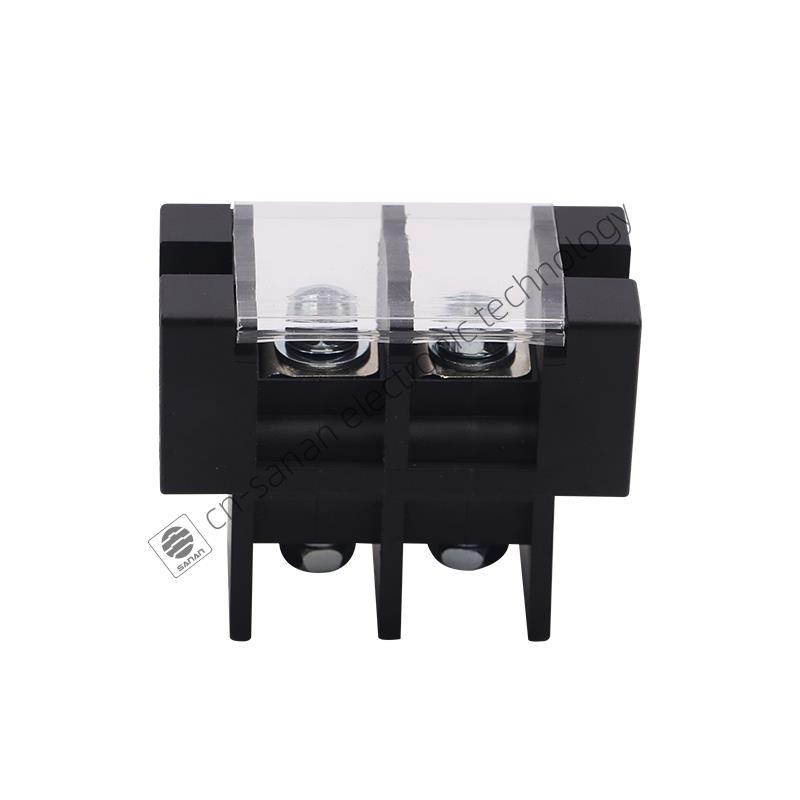

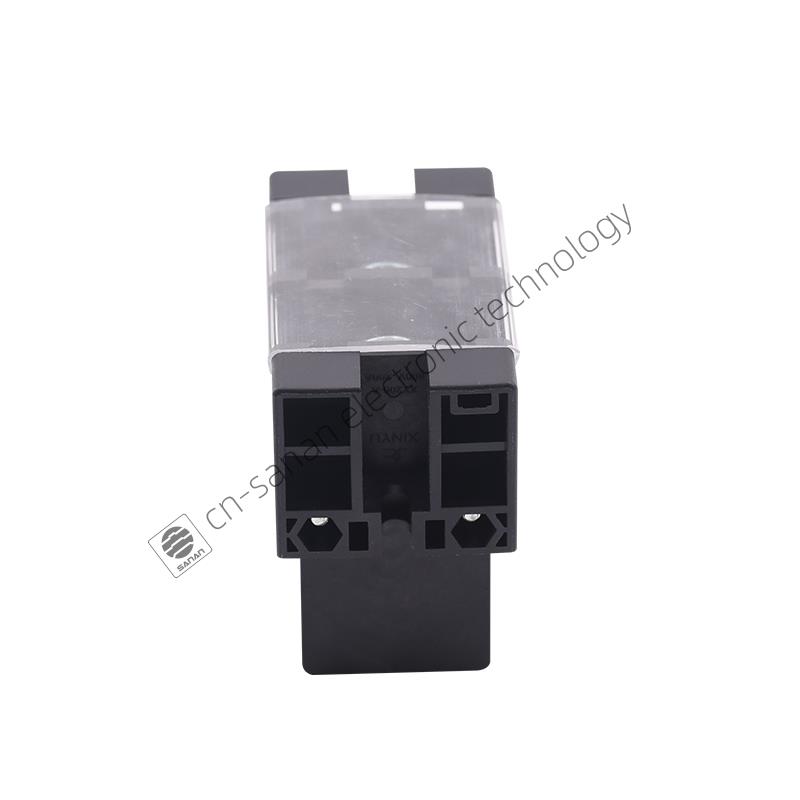

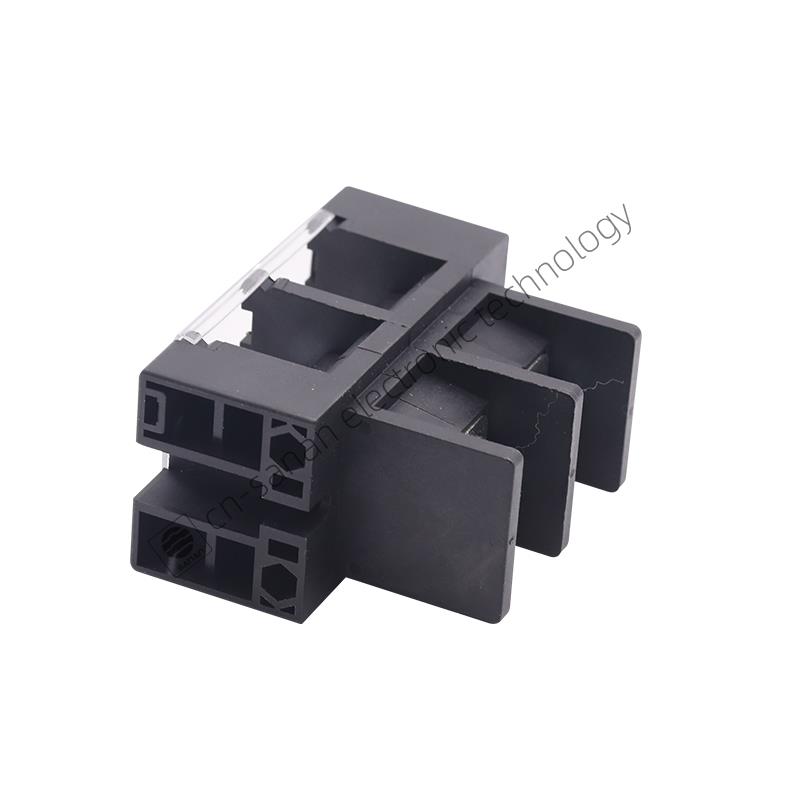

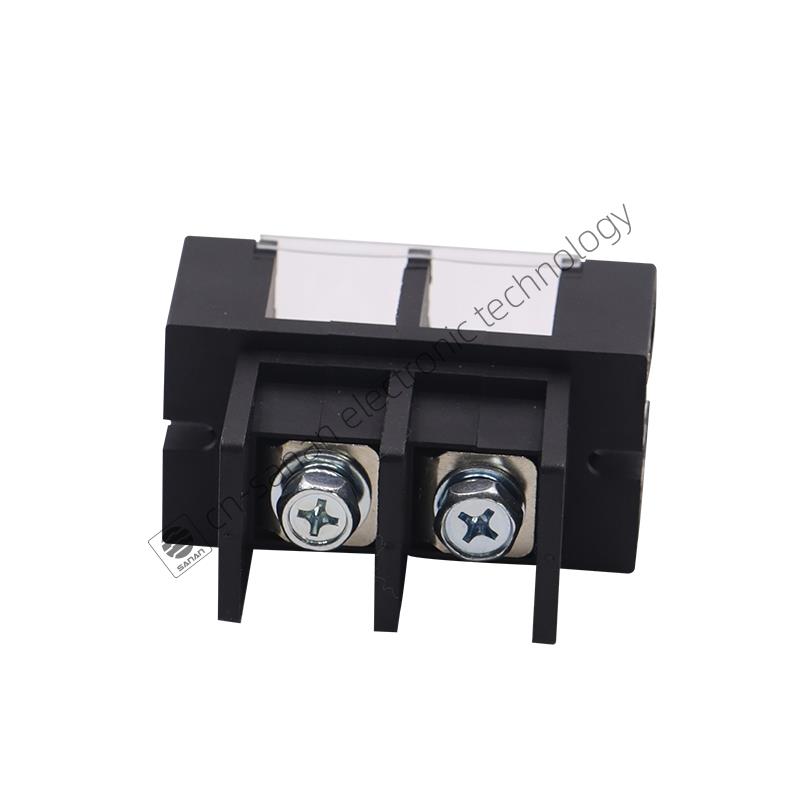

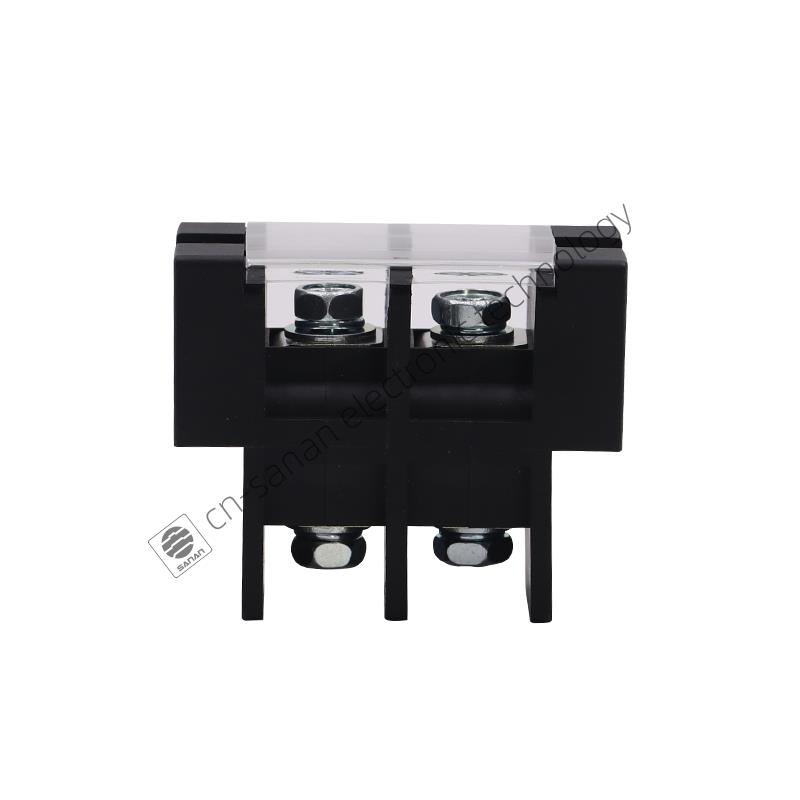

27MM Barrier Terminal Block
Model：SA129V-5.08-3P
Sanan Electronics Co., Ltd. is a manufacturer specializing in researching new products, mass-producing and selling goods with brands. With the development of market,our company has accumulated rich experience in researching and producing insertion parts. The three main series of the products containing electronic connectors, 27MM Barrier Terminal Block,terminal blocks ,DIN rail enclosure, IO modeules. Currently, our company gets the certification of ISO9001 again, and our products also get the authentication of Europe CE, America UL, and Europe RoHS. Surviving in the current international situation filled with opportunity and challenge, we are improving the technology, normalizing the management, consummating the methods of measure and our fame is also broadening. Now we own nearly one thousand clients and the products have been sold to the countries including Europe and Southeast Asia.Our company pays more attention on the innovation management, and the tenet of the company lies in creating a harmonious situation with the related people and things. Self-discipline and social commitment would embrace everything.
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, automation, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation.
Feature
● Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
● Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
● Universal installation method, suitable for various situations
● PA66 material, sturdy, high temperature resistance, flame retardant.
Product specification of 27MM Barrier Terminal Block
| Product name | 27MM Barrier Terminal Block |
| Material | Plastic / copper |
| Color | Black |
| Contact | Form 2P-5P(accept customization ) |
| AWG | 10~70AWG |
| Strip length | 5mm |
| Rated voltage | 1000V 200A |
| Conductor cross section solid | 1.5~2.5mm² |
| Pitch | 27mm (accept customization ) |
| Weight | 200g(depends the contacts) |
| MOQ | 100pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Contact zone metal surface | Tin-plated |
| Insulation Materials | PA66 |
Application of 27MM Barrier Terminal Block

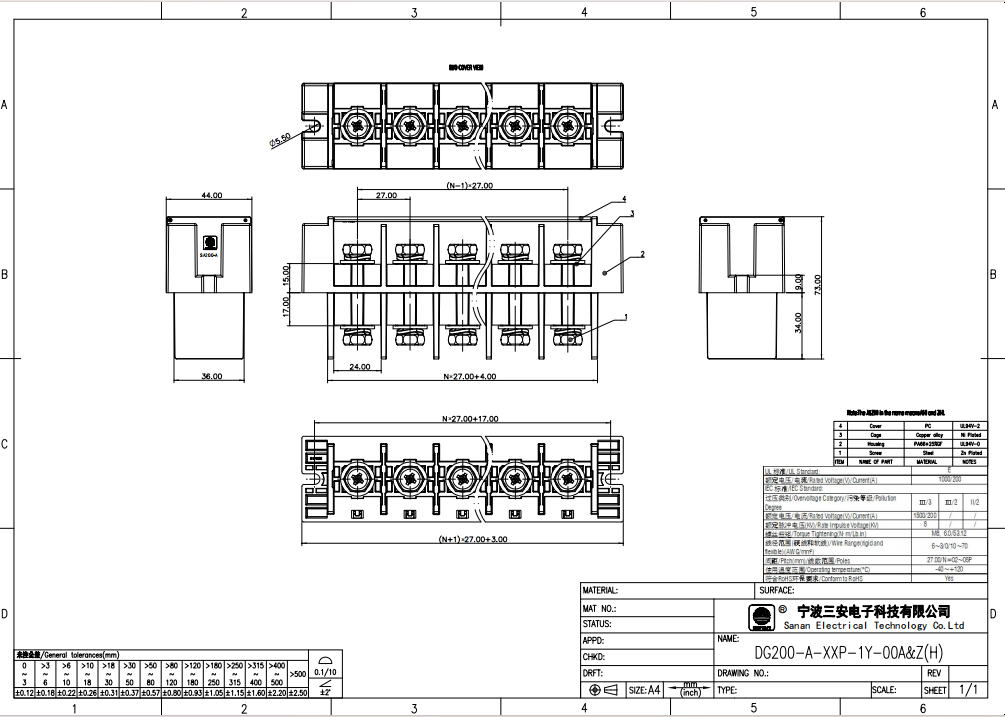

Drawing of 27MM Barrier Terminal Block
Packing of 27MM Barrier Terminal Block
According to Standard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
