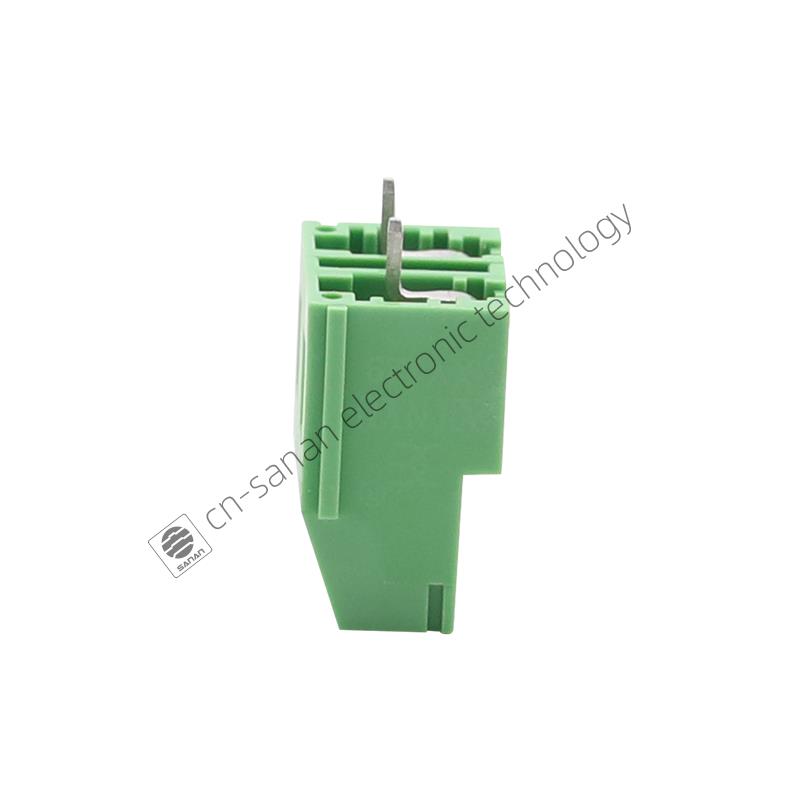

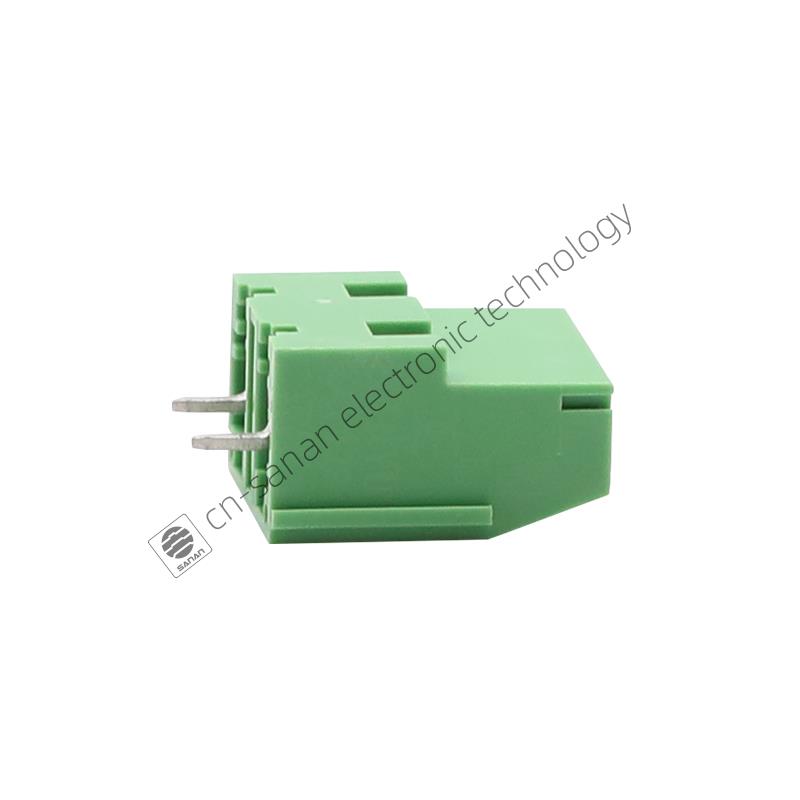

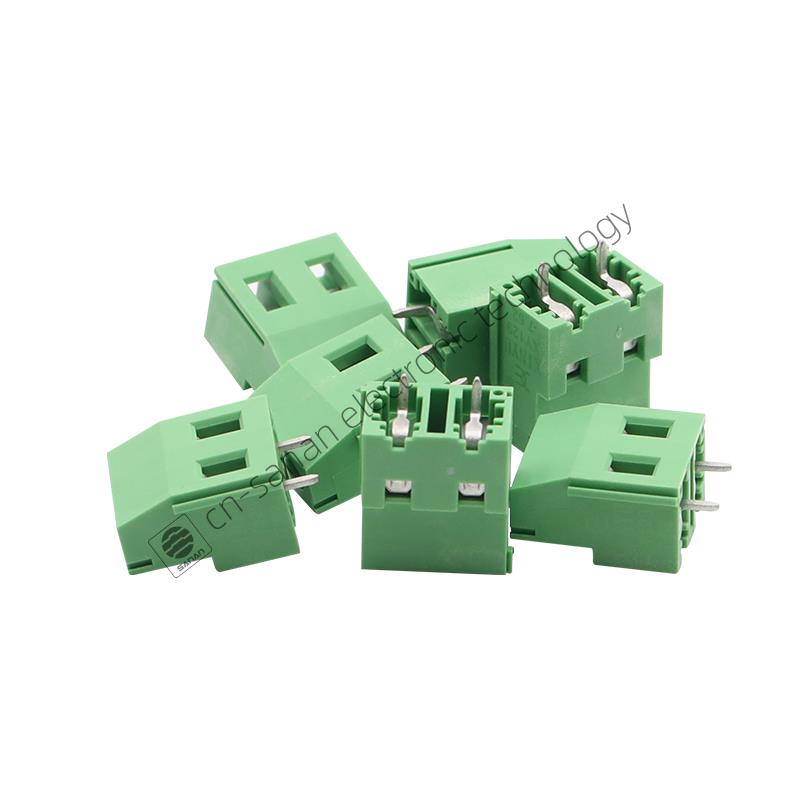

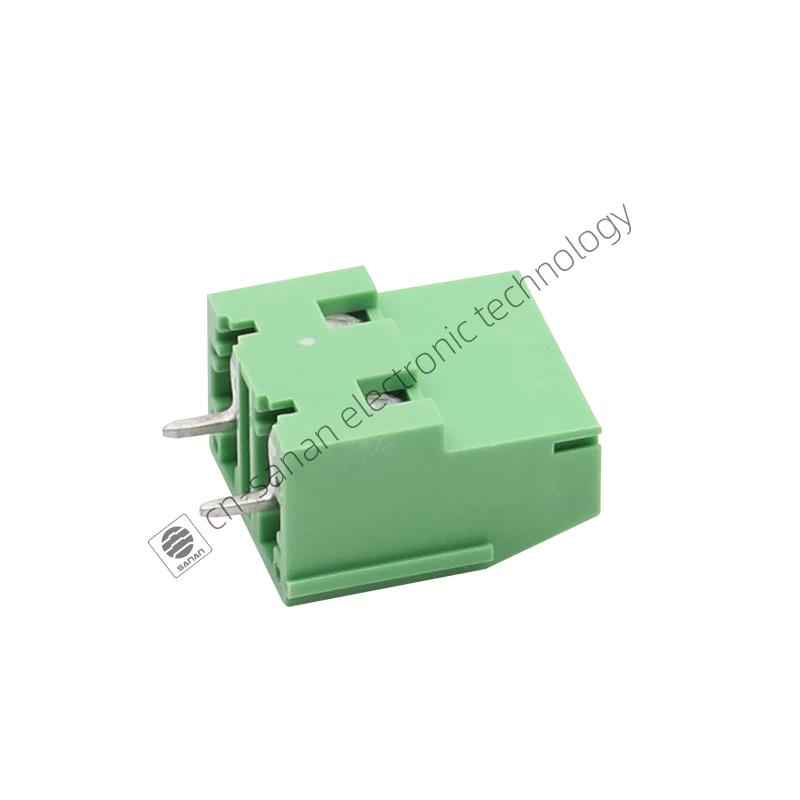

Automatic System PCB Terminal Block
Model：SA129-7.62-2P
Sanan Electronics Technology Co., Ltd. was found in year 2020 , the factory located in Ningbo which close to Shanghai. The company specialized in electronic components. We are committed to creating a complete solution for the terminals and connectors for customers around the world. Our main products are din rail enclosures, Automatic System PCB Terminal Block,, IO modules etc.The company strictly implement the ISO9001:2008 quality management system and environmental management system. All products are in line with the RoHS directive, in full accordance with CE, UL, VDE, SGS, REACH and other standard production.We are warmly and sincerely welcomes the domestic and international customers to negotiate cooperation.
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, Control, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the
Feature
● Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
● Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
● Universal installation method, suitable for various situations
● PA66 material, sturdy, high temperature resistance, flame retardant.
Product specification of Automatic System PCB Terminal Block
| Product name | Automatic System PCB Terminal Block |
| Material | Plastic / copper |
| Color | Green |
| Contact | Form 2P-16P(accept customization ) |
| AWG | 28~12AWG |
| Strip length | 7mm |
| Rated voltage | 450V20A |
| Conductor cross section solid | 0.5~2.5mm² |
| Pitch | 7.62mm (accept customization ) |
| Weight | 8g(depends the contacts) |
| MOQ | 100pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Contact zone metal surface | Tin-plated |
| Insulation Materials | PA66 |

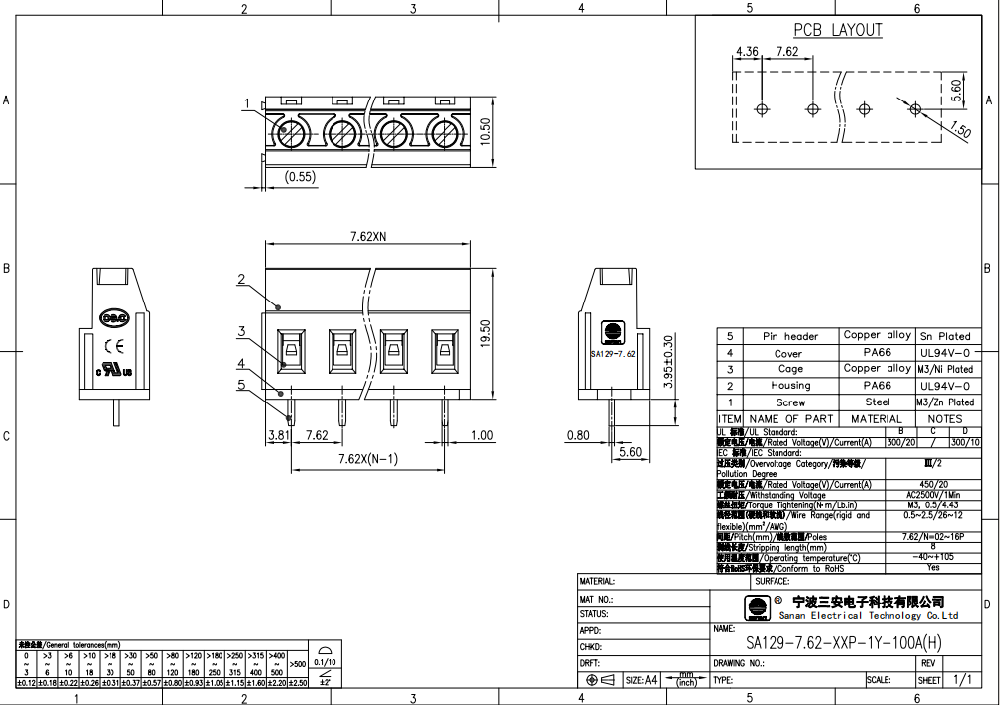

Drawing of Automatic System PCB Terminal Block
Packing of Automatic System PCB Terminal Block
According to Standard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
