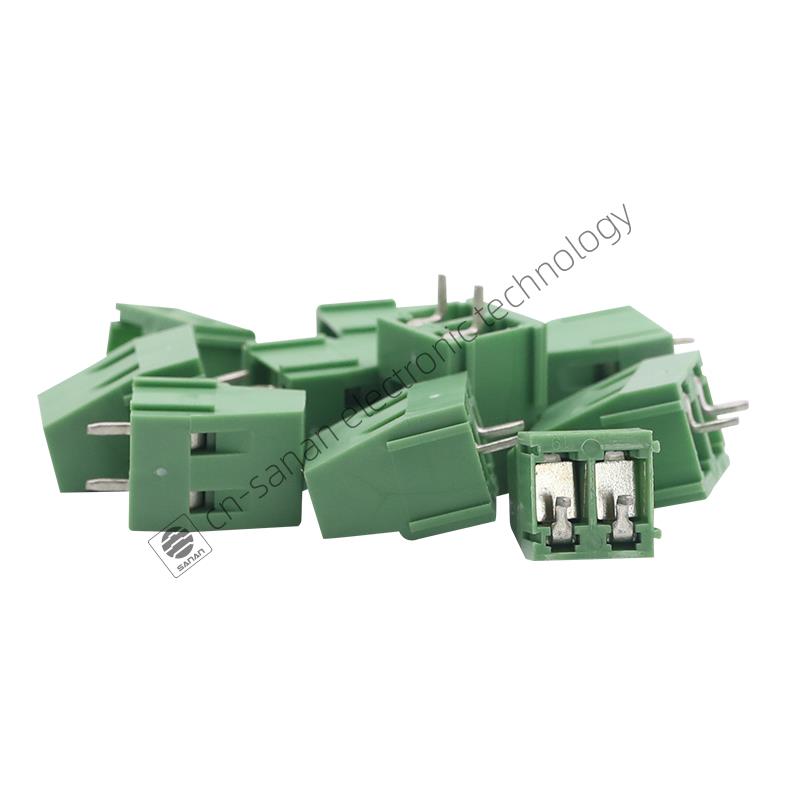

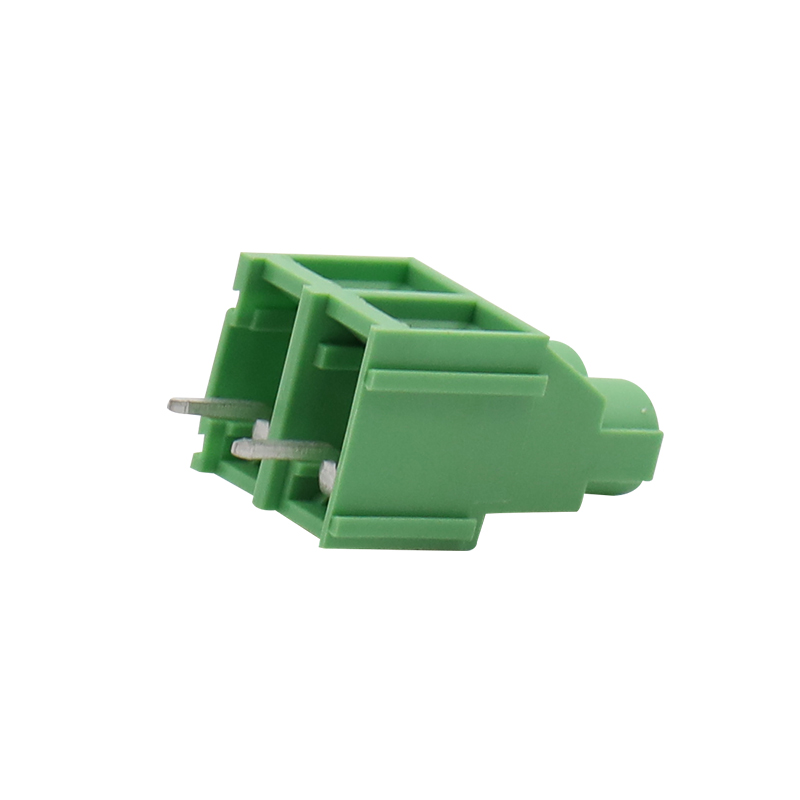

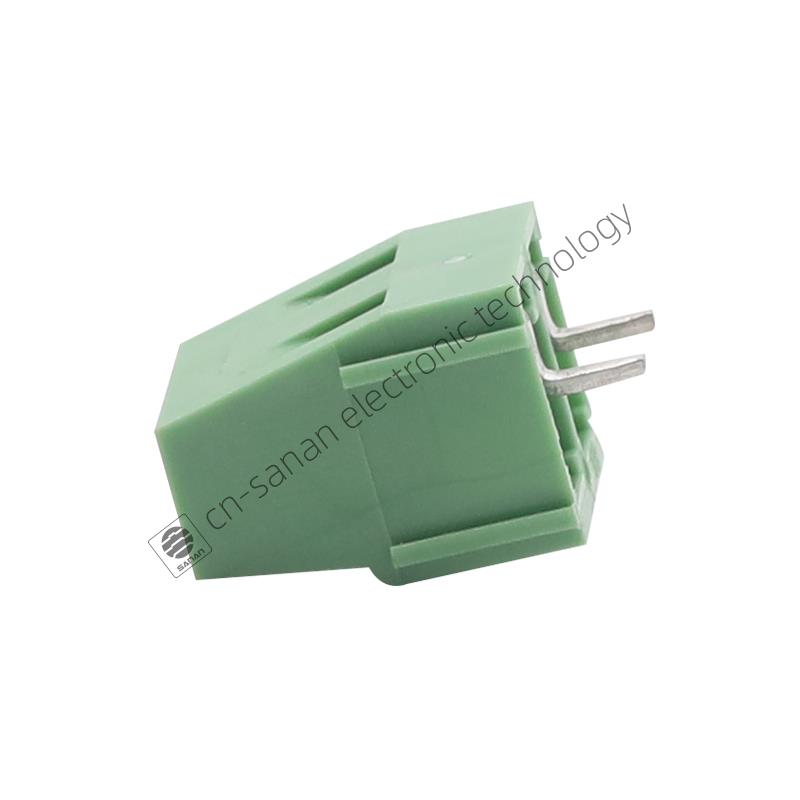

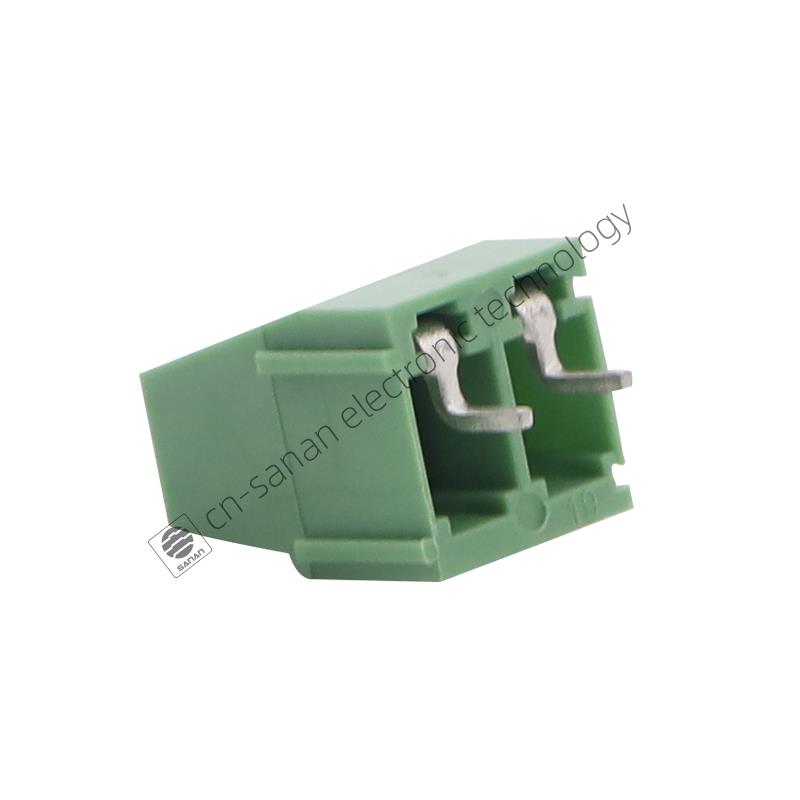

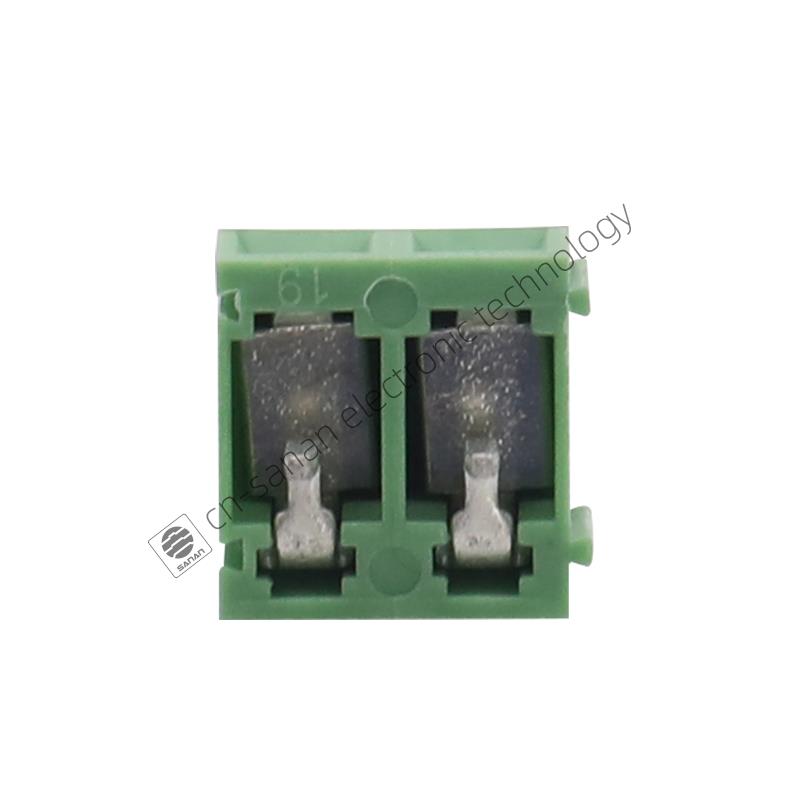

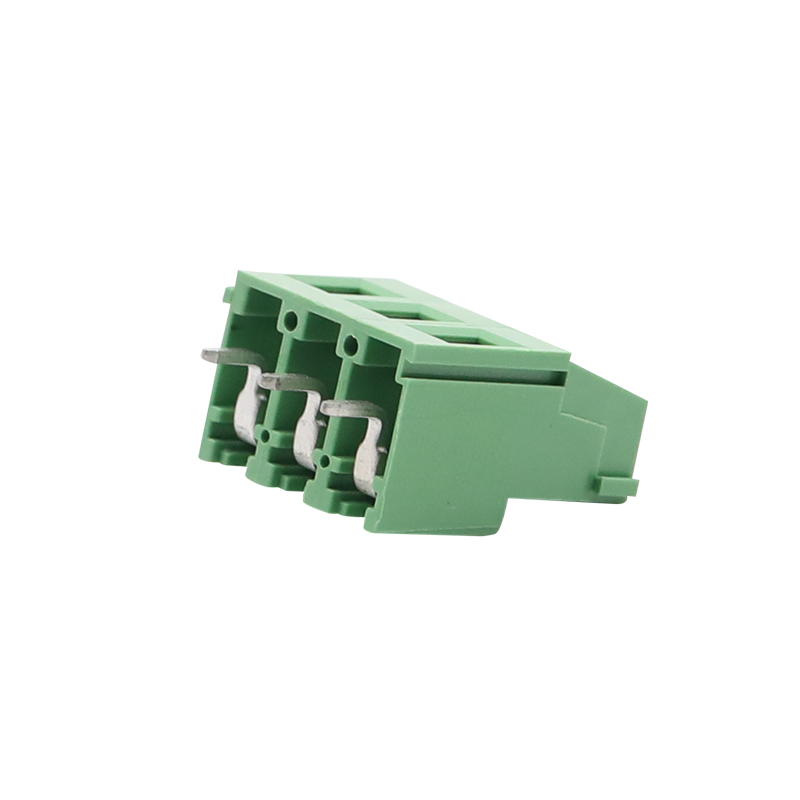

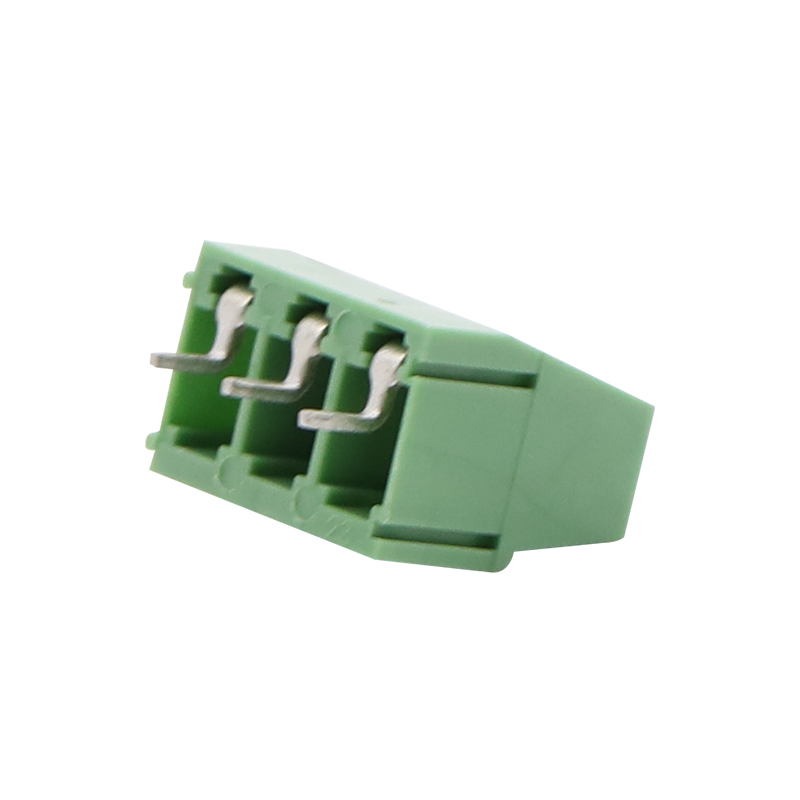

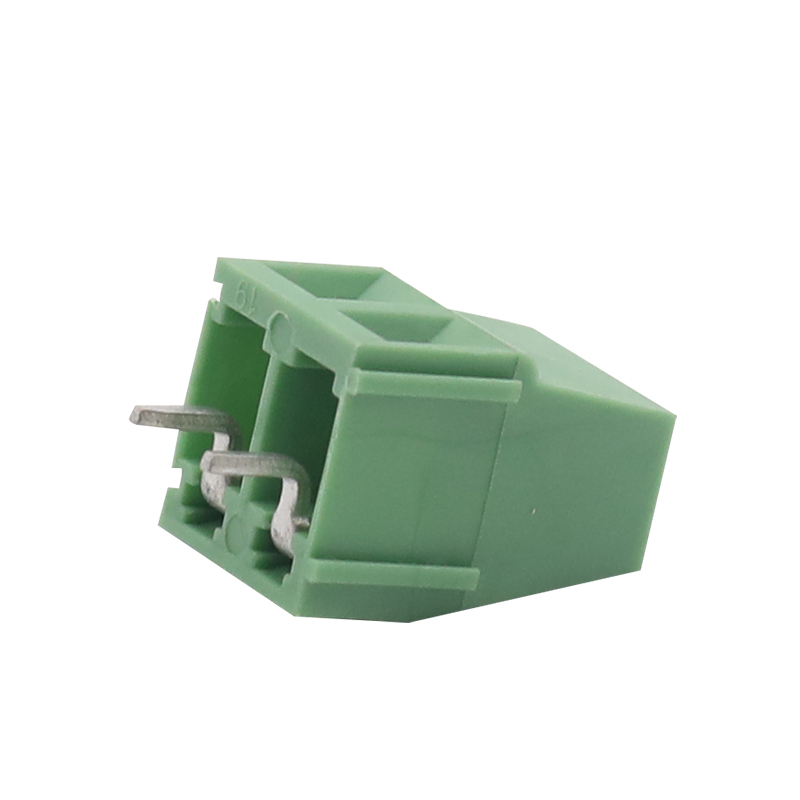

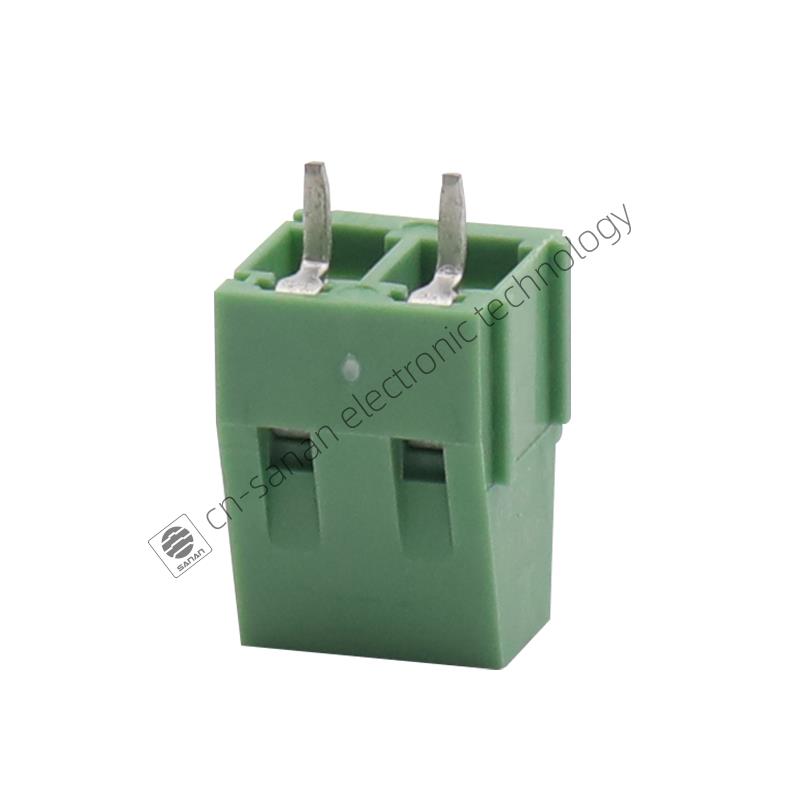

Control System 5.0MM PCB Terminal Block
Model：SA129V-5.08-3P
Sanan Electronics Technology Co., Ltd. is Establishing in 2020 , manufacturer in China,targets at providing a total solution for various electronic components ranging from terminal block Connectors, for example, Control System 5.0MM PCB Terminal Block, IO module, Din rail enclosure etc.Our products are commonly employed in industrial automation, electric energy and power appliances and equipments. Our products have been used in many world-wide famous brands. Sanan will always further improve our services by preforming an efficient simple shopping/query service.
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, Control, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry Control.
Feature
● Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
● Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
● Universal installation method, suitable for various situations
● PA66 material, sturdy, high temperature resistance, flame retardant.
Product specification of Control System 5.0MM PCB Terminal Block
| Product name | Control System 5.0MM PCB Terminal Block |
| Material | Plastic / copper |
| Color | Green |
| Contact | Form 2P-16P(accept customization ) |
| AWG | 28~12AWG |
| Strip length | 7mm |
| Rated voltage | 450V20A |
| Conductor cross section solid | 0.5~2.5mm² |
| Pitch | 7.62mm (accept customization ) |
| Weight | 8g(depends the contacts) |
| MOQ | 100pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Contact zone metal surface | Tin-plated |
| Insulation Materials | PA66 |

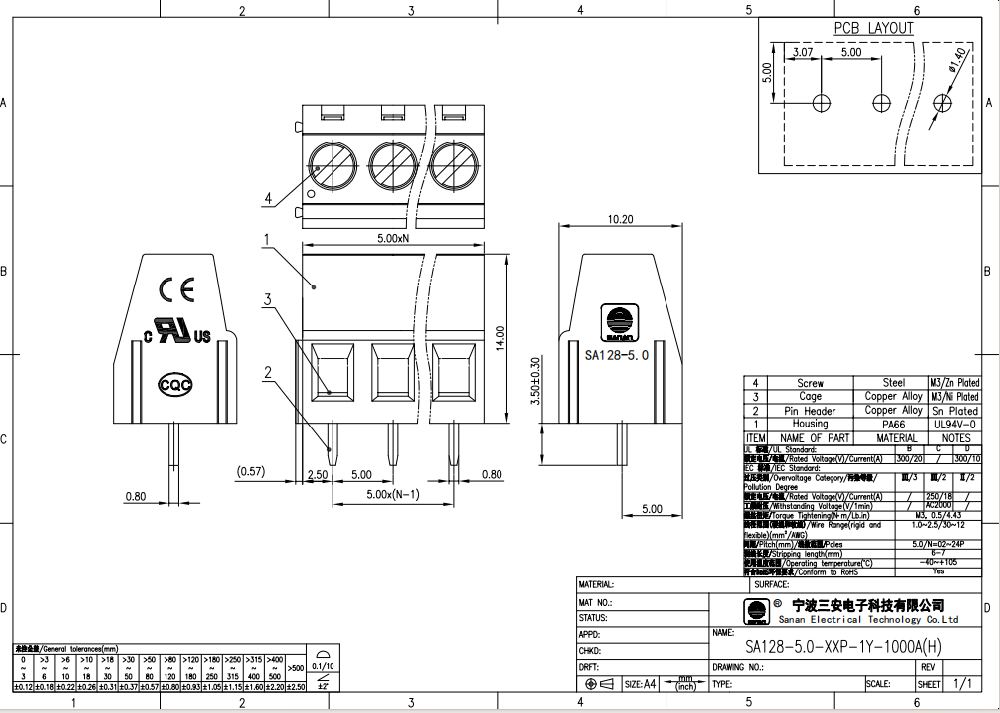

Drawing of Control System 5.0MM PCB Terminal Block
Packing of Control System 5.0MM PCB Terminal Block
According to Standard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
