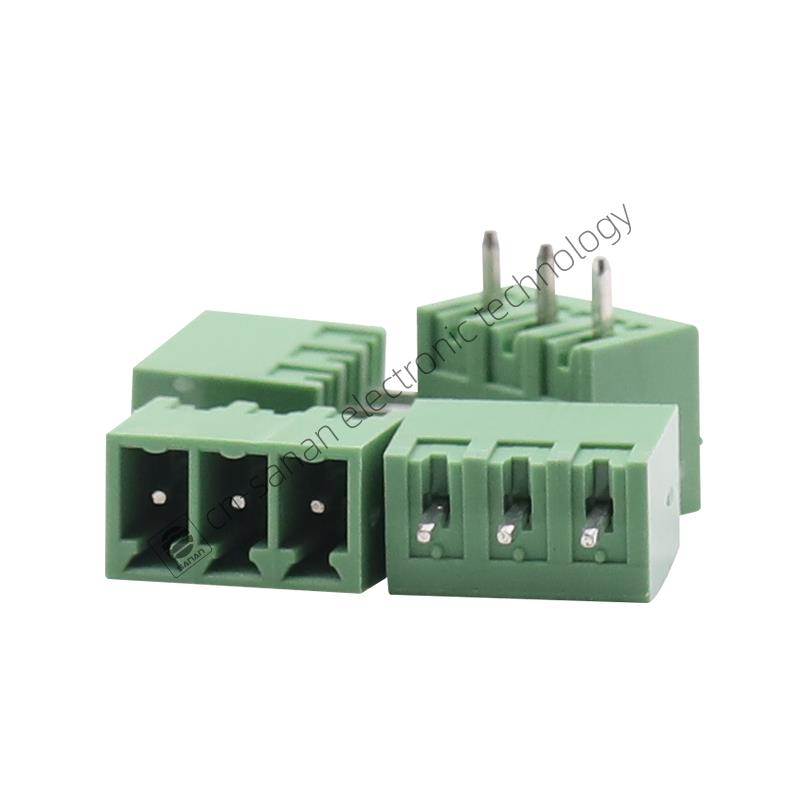

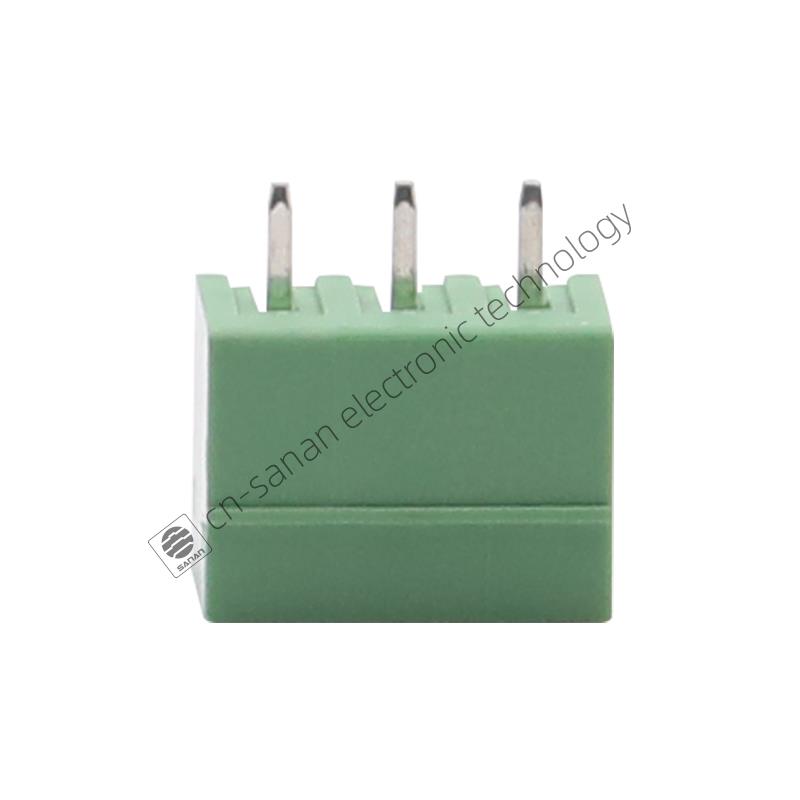

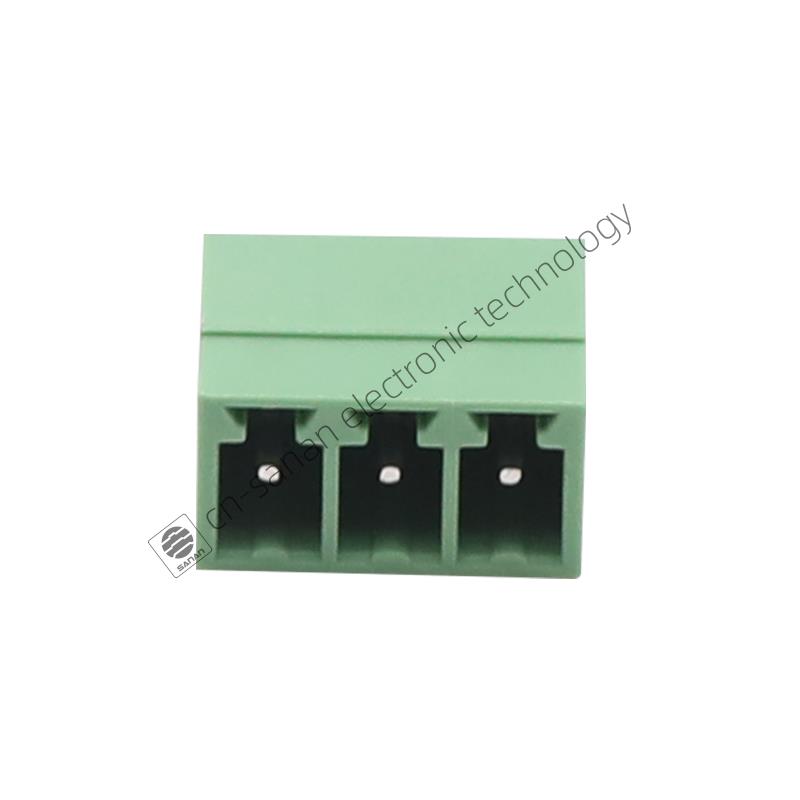

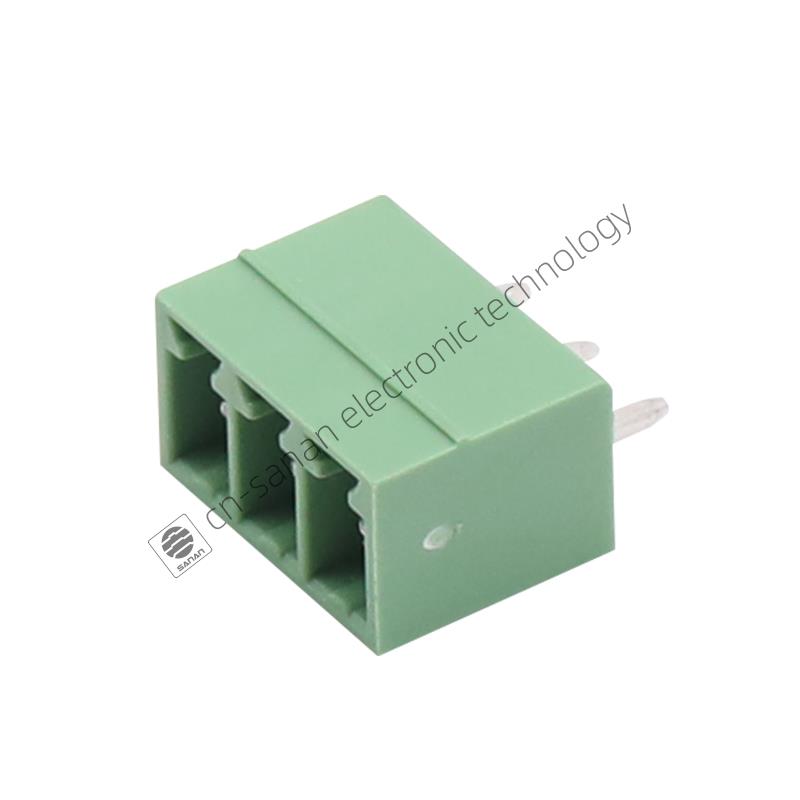

3.81MM Female Green PCB Terminal Block
Model：15ESAVC-3.81-3P
Sanan Electronics Technology Co., Ltd. is a set of manufacturing, sales, development and service as one of the professional manufacturers. The company is equipped with fully automated production work shop,3.81MM Female Green PCB Terminal Block,with a daily output of more than 150,000 pieces.Sanan specializes in the production of terminal blocks, IO modules and din rail encosures products , excellent performance, can meet the requirements of all businesses.The company is located in Ningbo City, Zhejiang Province, which is economically developed and enjoys a good reputation as the "Electrical Appliance City of China".The transportation is very convenient and smooth.Sanan adhere to the development direction of "specialization, science and technology, globalization".
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, Control, and test equipment applications a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry Control.
Feature
● Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
● Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
● Universal installation method, suitable for various situations
● PA66 material, sturdy, high temperature resistance, flame retardant.
Product specification of 3.81MM Female Green PCB Terminal Block
| Product name | 3.81MM Female Green PCB Terminal Block |
| Material | Plastic / copper |
| Color | Green |
| Contact | Form 2P-24P(accept customization ) |
| Type of installation | PCB welding |
| Voltage | 250V/7A |
| Pitch | 3.81mm |
| Connection method | PCB connection |
| Weight | 6g(depends the contacts) |
| MOQ | 100pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Contact zone metal surface | Tin-plated |
| Insulation Materials | PA66 |

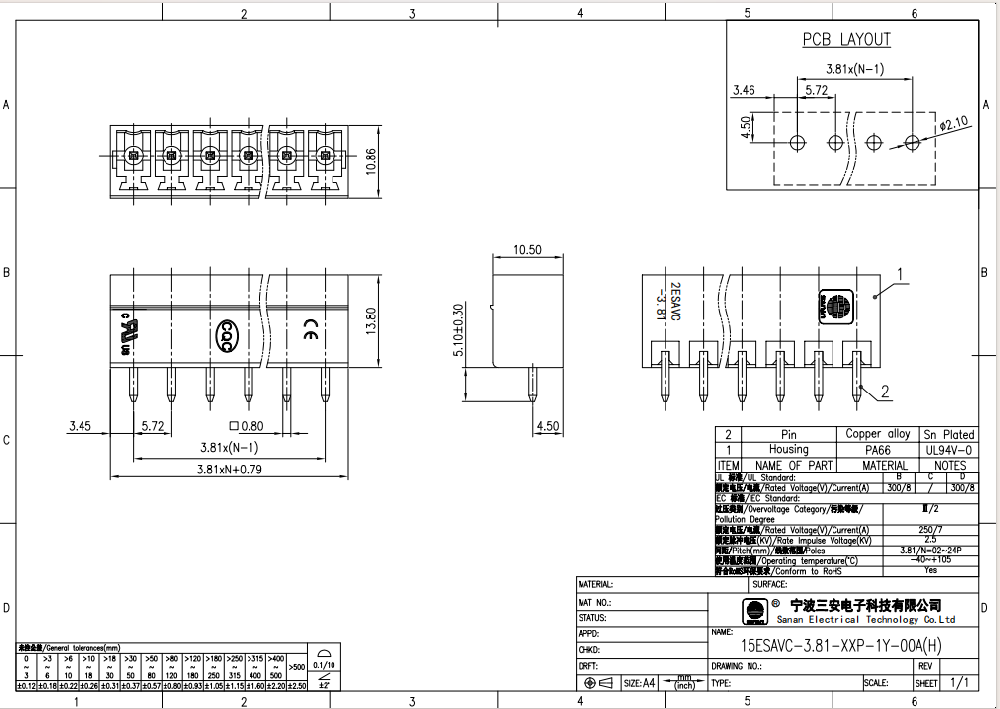

Drawing of 3.81MM Female Green PCB Terminal Block
Packing of 3.81MM Female Green PCB Terminal Block
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
