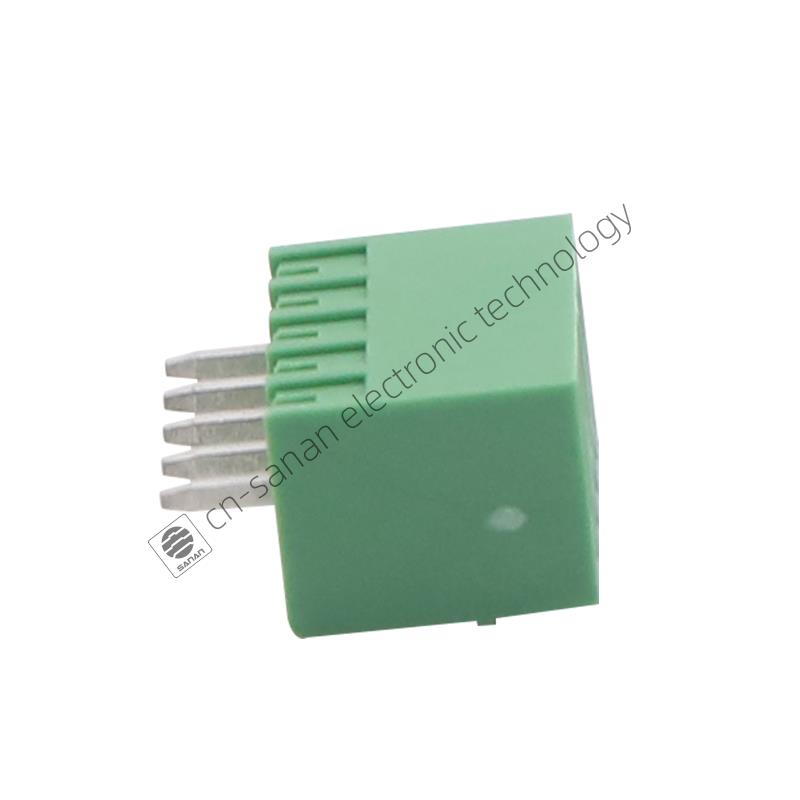

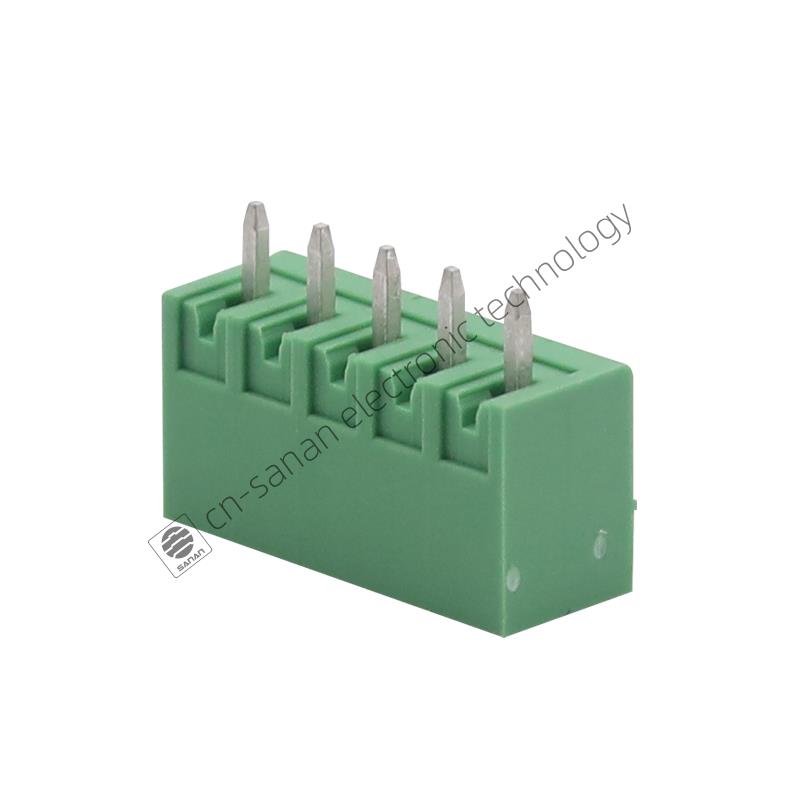

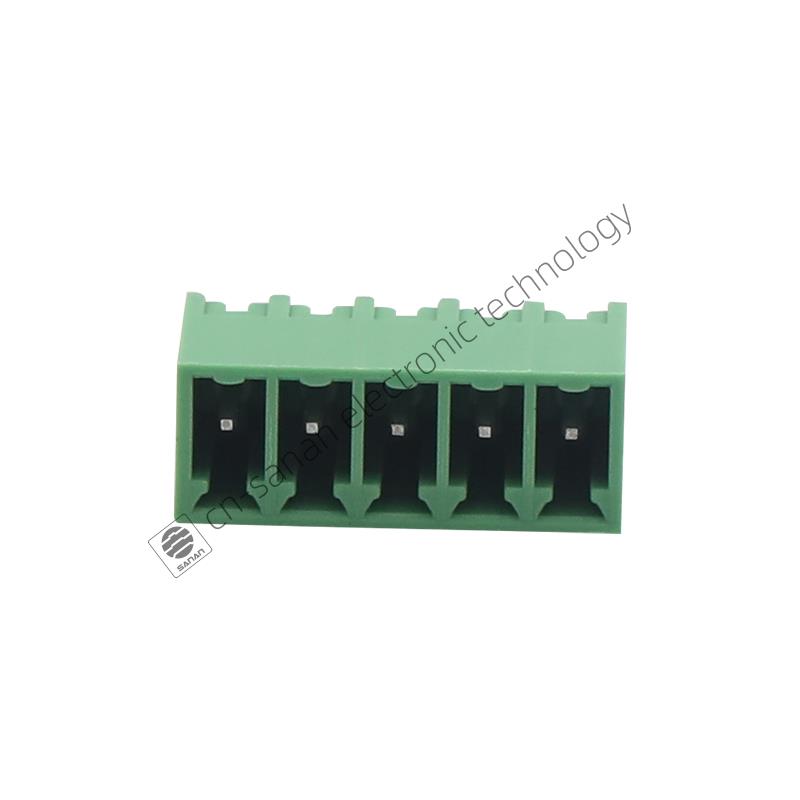

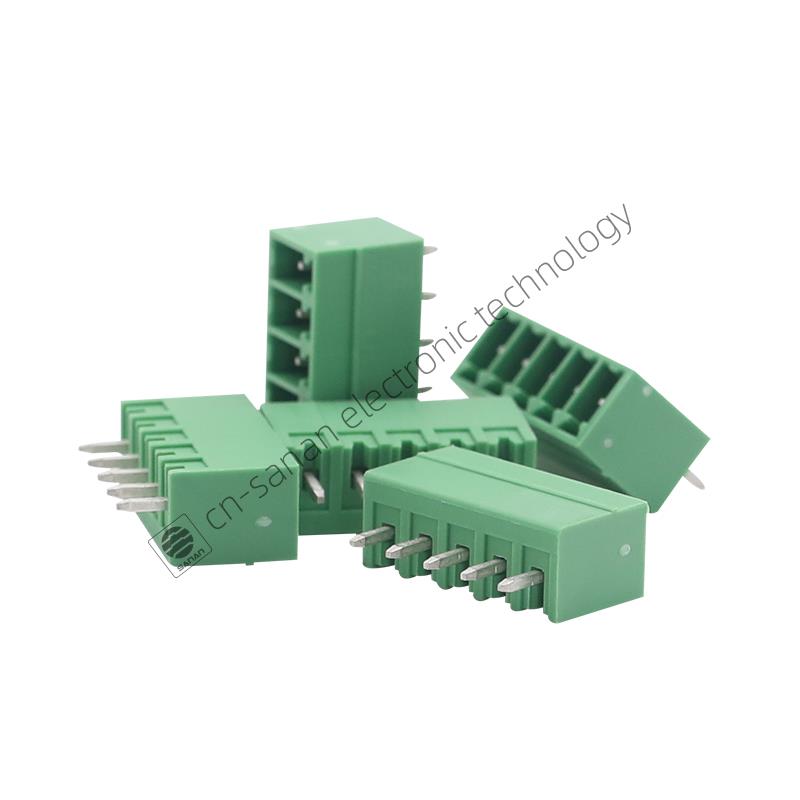

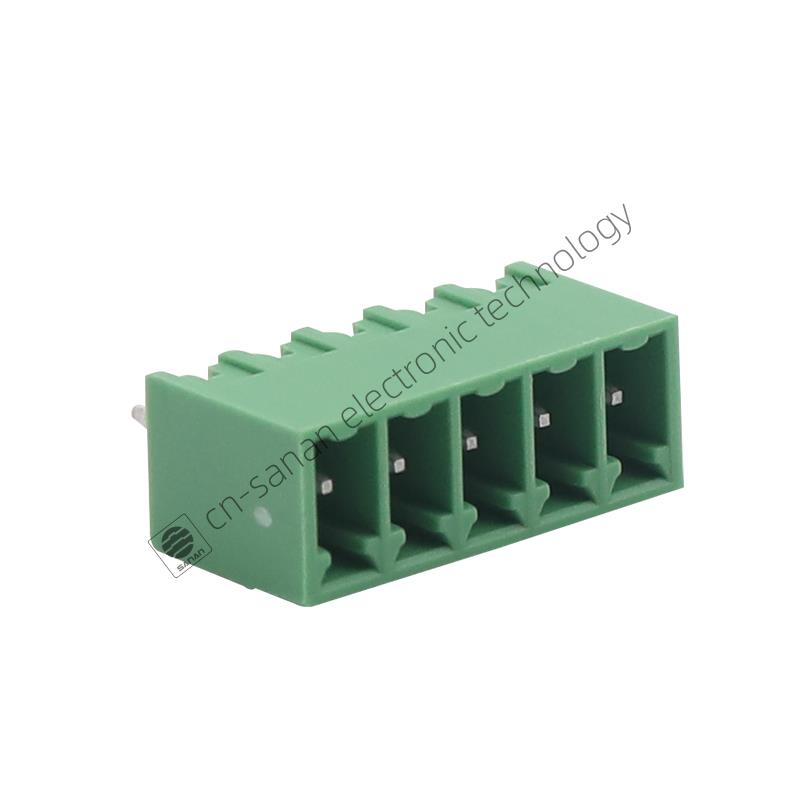

3.5MM Green PCB Terminal Wire Connector
Model：15ESAK-3.5-5P
Sanan Electronics Technology Co., Ltd. is found in 2020 Ningbo China. With rich experience, we pride toprovide world-class terminal blocks, 3.5MM Green PCB Terminal Wire Connector, Io moduels, din rail enclosures and so on to customers around the world.Having a global-quality is our avdantage, thus we'reextremely careful in our production and sourcing processto ensure top-notch quality in the market. Our products for example, 3.5MM Green PCB Terminal Block,are used in all major leading manufacturers across automotive, chemical, electrical installation, and many other industries. Our wire connectors are commonly used for major poewr companies.We serve customers around the world,therefore, majority of our products we offer have received UL, CE, Rosh standard approval and abide with various environmental and industry-specific qualifications,We sincerely look forward to establishing business relationship with the customers all over the world in the future and create development together.
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, Control, and test equipment applications a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry Control.
Feature
● Easy to use,no need to weld, handy and easy to assemble,solder in easily and tighten very well on the terminated wires, spiral wire is not easy to take off the line.
● Wide application, the terminal blocks is ideal foe small electronic watches, calculator, general computer, communication electronics device and other electronic equipment.
● Universal installation method, suitable for various situations
● PA66 material, sturdy, high temperature resistance, flame retardant.
Product specification of 3.5MM Green PCB Terminal Wire Connector
| Product name | 3.5MM Green PCB Terminal Block |
| Material | Plastic / copper |
| Color | Green |
| Contact | Form 2P-24P(accept customization ) |
| Type of installation | PCB welding |
| Voltage | 250V/7A |
| Pitch | 3.5mm |
| Connection method | PCB connection |
| Weight | 6g(depends the contacts) |
| MOQ | 100pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Contact zone metal surface | Tin-plated |
| Insulation Materials | PA66 |

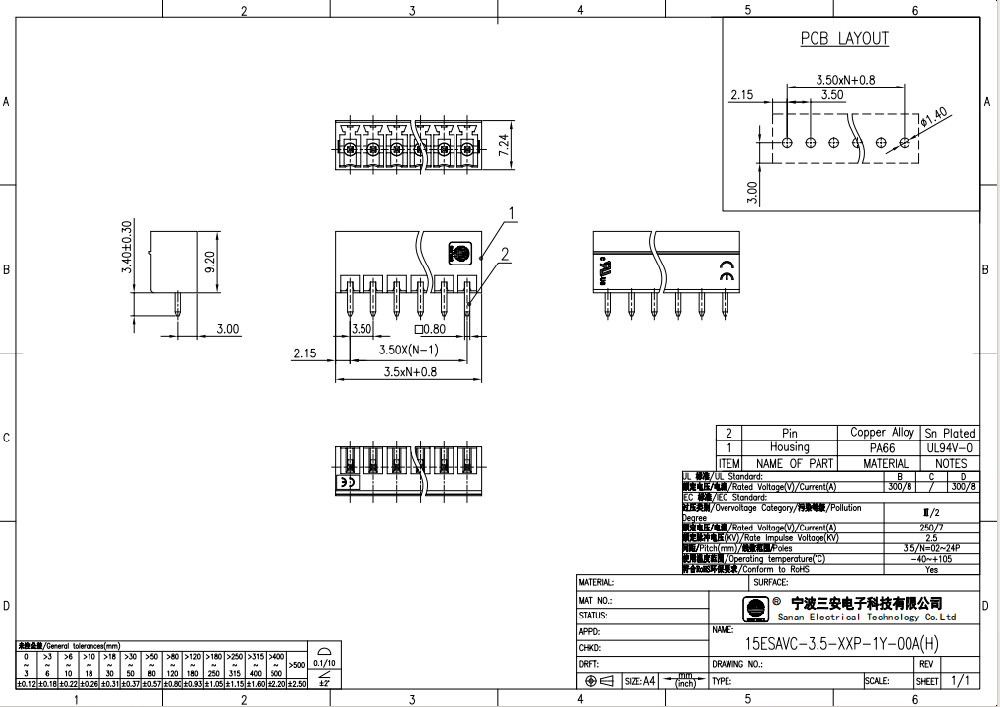

Drawing of 3.5MM Green PCB Terminal Wire Connector
Packing of 3.5MM Green PCB Terminal Wire Connector
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
