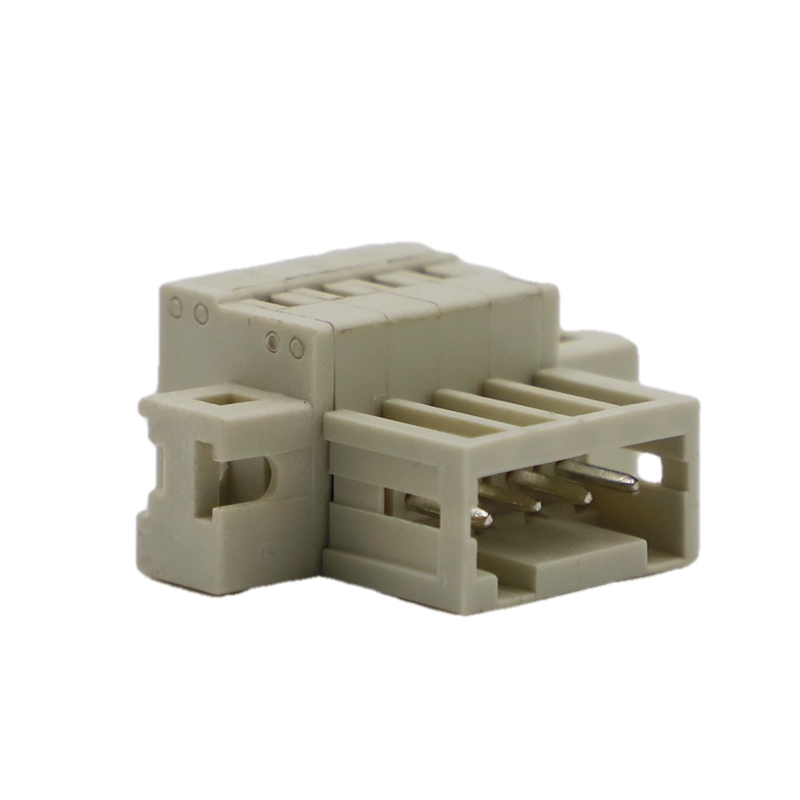

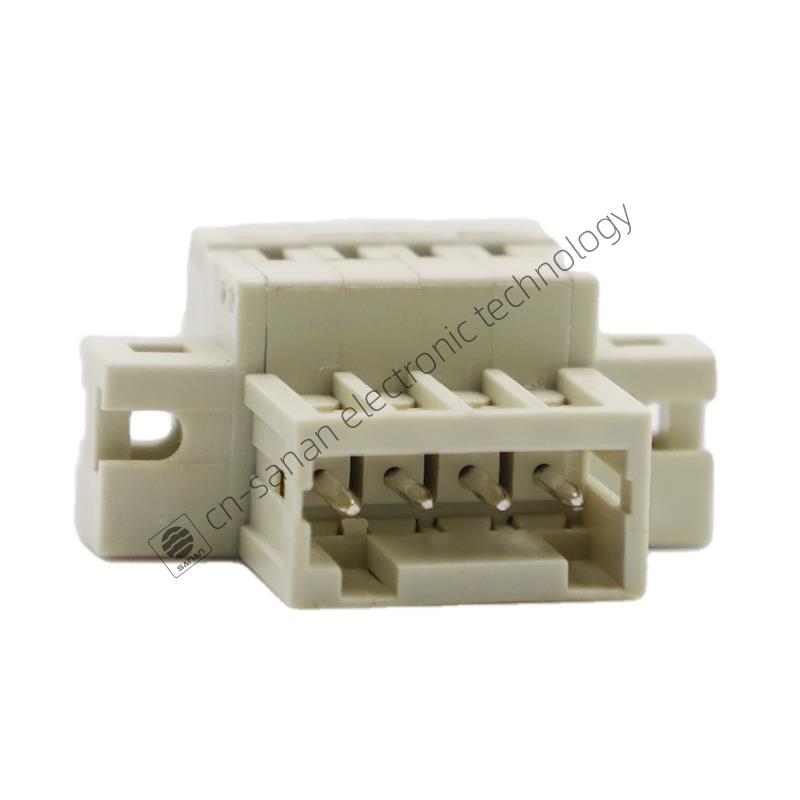

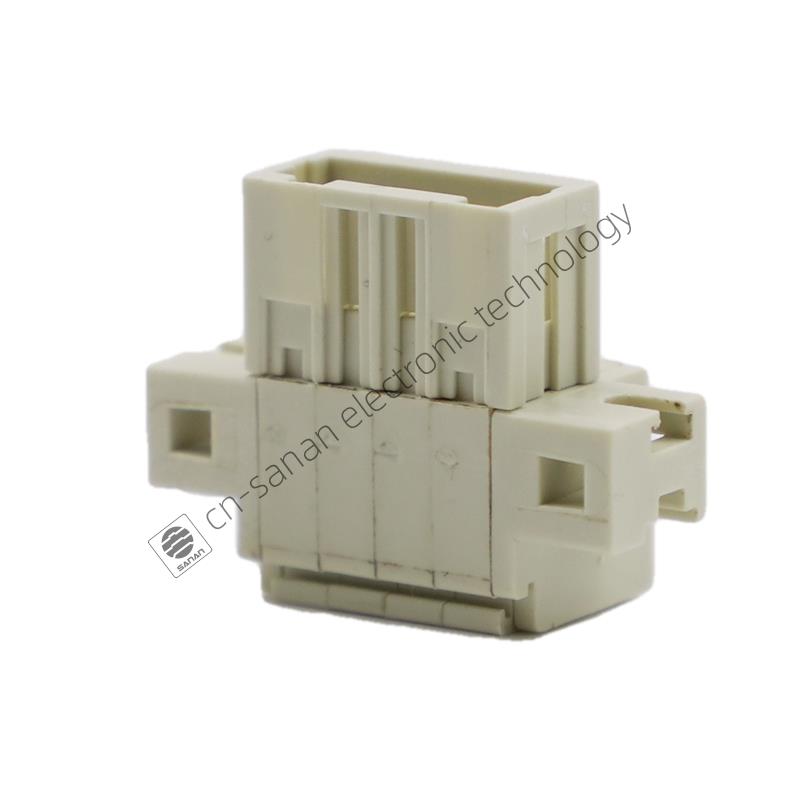

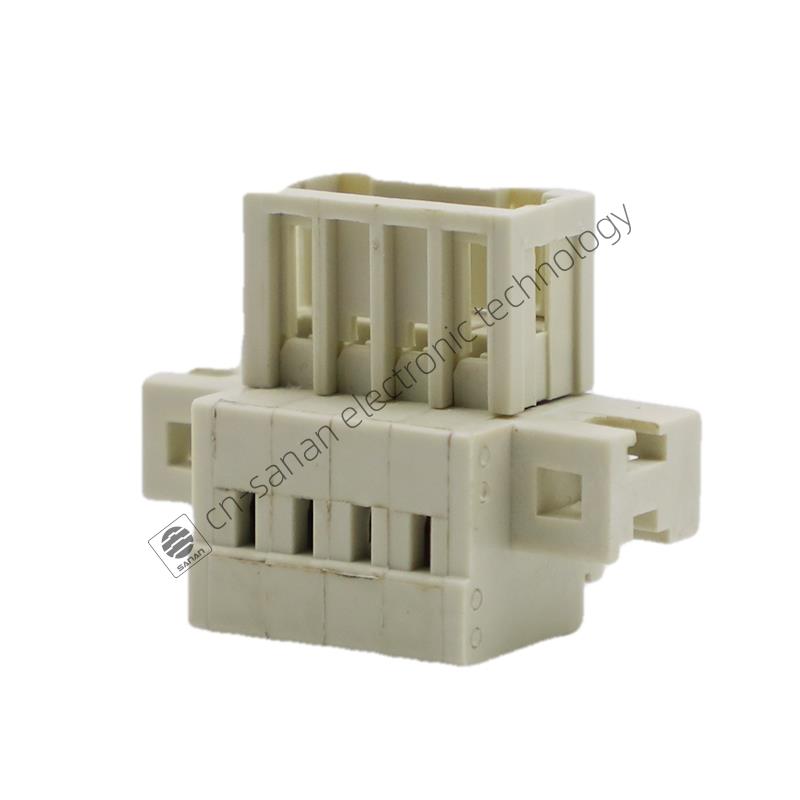

3.5mm 10A 130V Female Type Pluggable Terminal Block
Model：8ESAKRM-3.5-4P
Sanan® is a professional 3.5mm 10A 130V Female Type Pluggable Terminal Block in China, We offer solutions for the industrial automation, electric energy, wind power generation, rail traffic and so on,for the pluggable terminal block, we have 20 years experience, with strong advantages and high quality, With leading industry quality, our products are selling well all over the world.
Send Inquiry PDF DownLoad
Product Description
Sanan® is China manufacturers & suppliers who mainly produces 3.5mm 10A 130V Female Type Pluggable Terminal Block with many years of experience. Pluggable terminal block and pluggable connectors for drive and controller technology, the lighting industry and more，as a supplier, Sanan’s PBC plug made of high-quality plastic and cooper, featured with good conductivity, effective flame retardant, long service time, safe and reliable, has the certification of ROSH, VDE etc.
Feature of 3.5mm 10A 130V Female Type Pluggable Terminal Block
●Adapt to multi-type sockets, device design is highly flexible
●PUSH-IN connection technology, fast wiring
●Universal installation method, suitable for various situations
●Not need to weld. Handy and easy to assemble, solder in easily and tighten very well on the terminated wires
Product specification of 3.5mm 10A 130V Female Type Pluggable Terminal Block
| Product name | Pluggable terminal block |
| Material | Plastic / copper |
| Color | Gray |
| Contact | Form 2P-15P(accept customization ) |
| AWG | 28~14AWG |
| Number of potentials | 4 |
| Rated voltage | 130V |
| Conductor cross section solid | 0.2~1.5mm² |
| Pitch | 3.5mm |
| Contact surface | Tin |
| Weight | 3g(depends the contacts) |
| MOQ | 500pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Strip length | 6mm |
| Ambient temperature (operation) | -40℃~105℃ |
Application of 3.5mm 10A 130V Female Type Pluggable Terminal Block
Packing of pluggable terminal block
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
