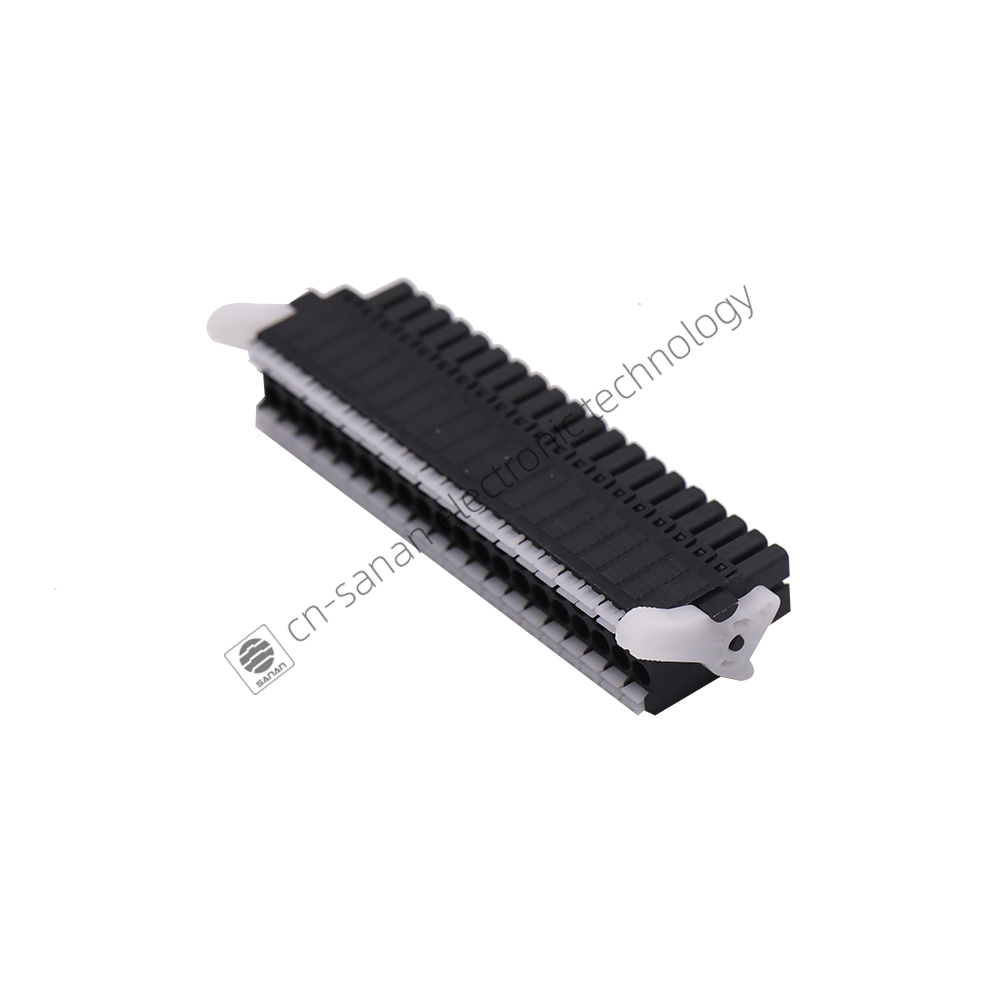

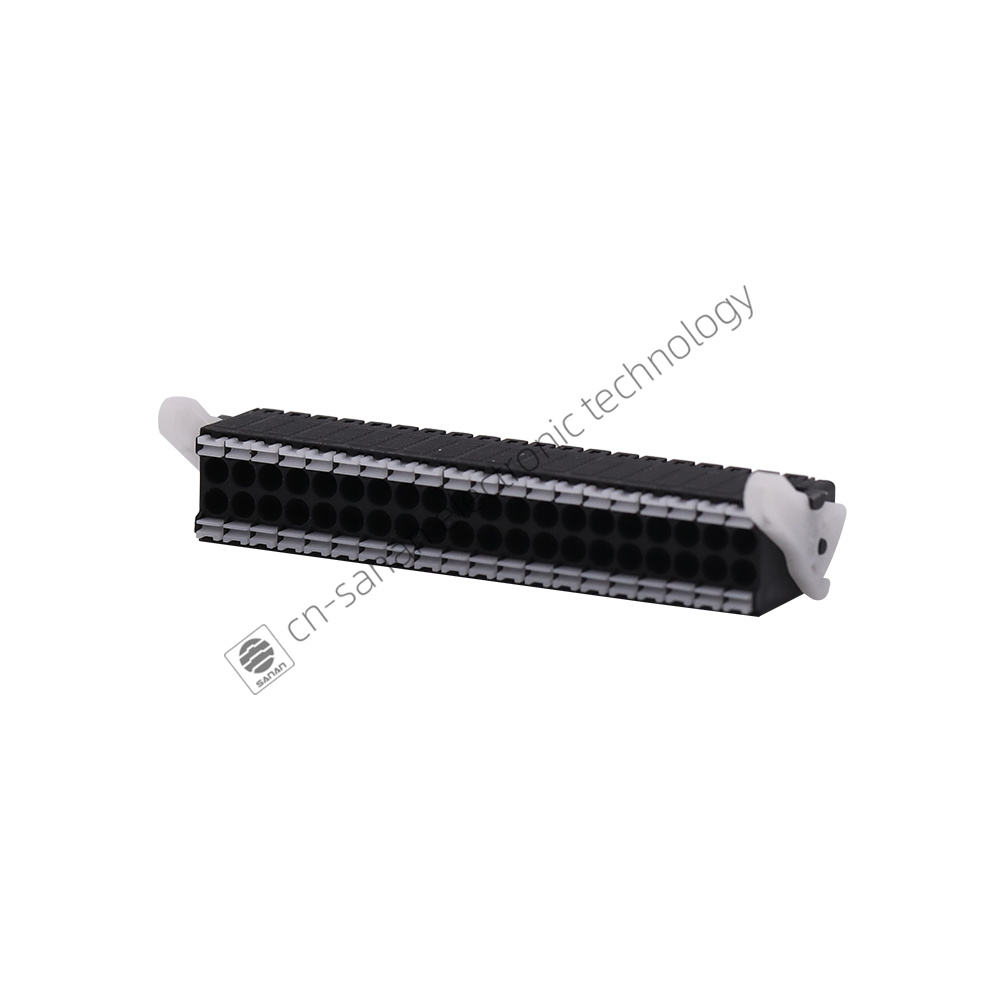

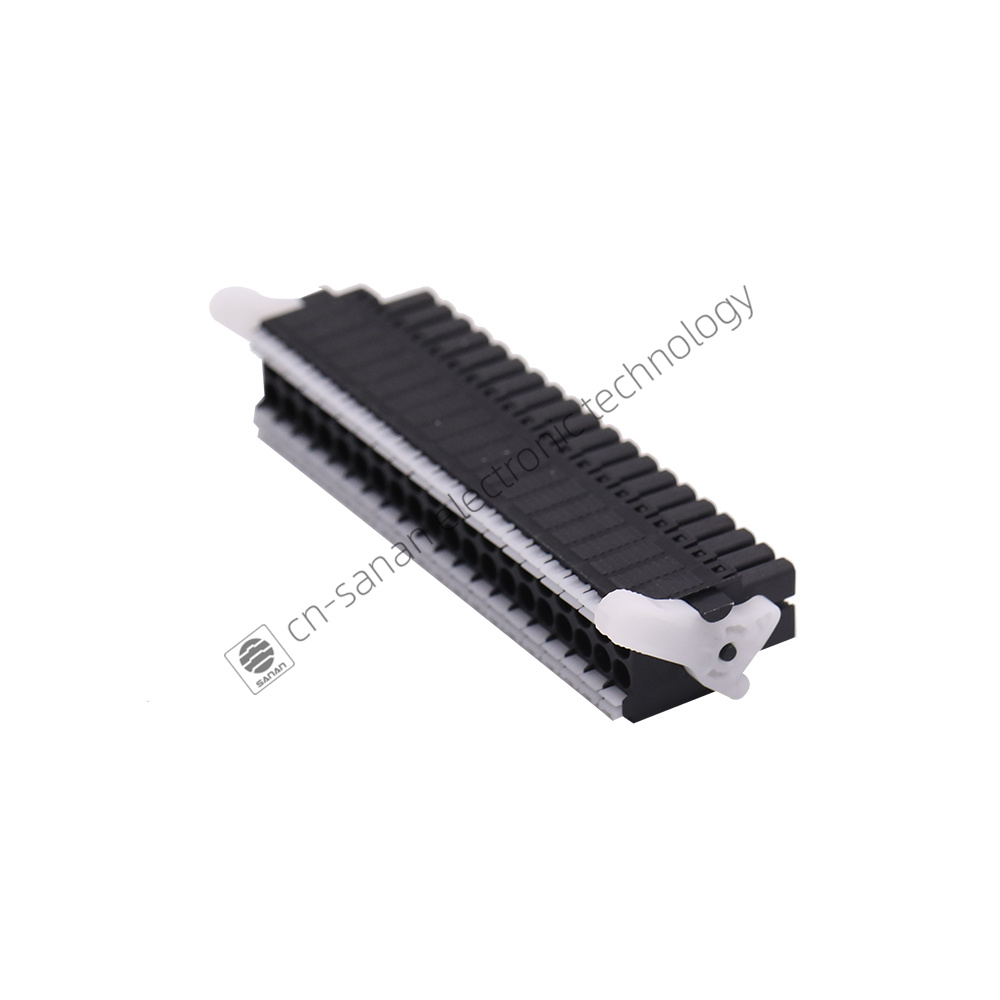

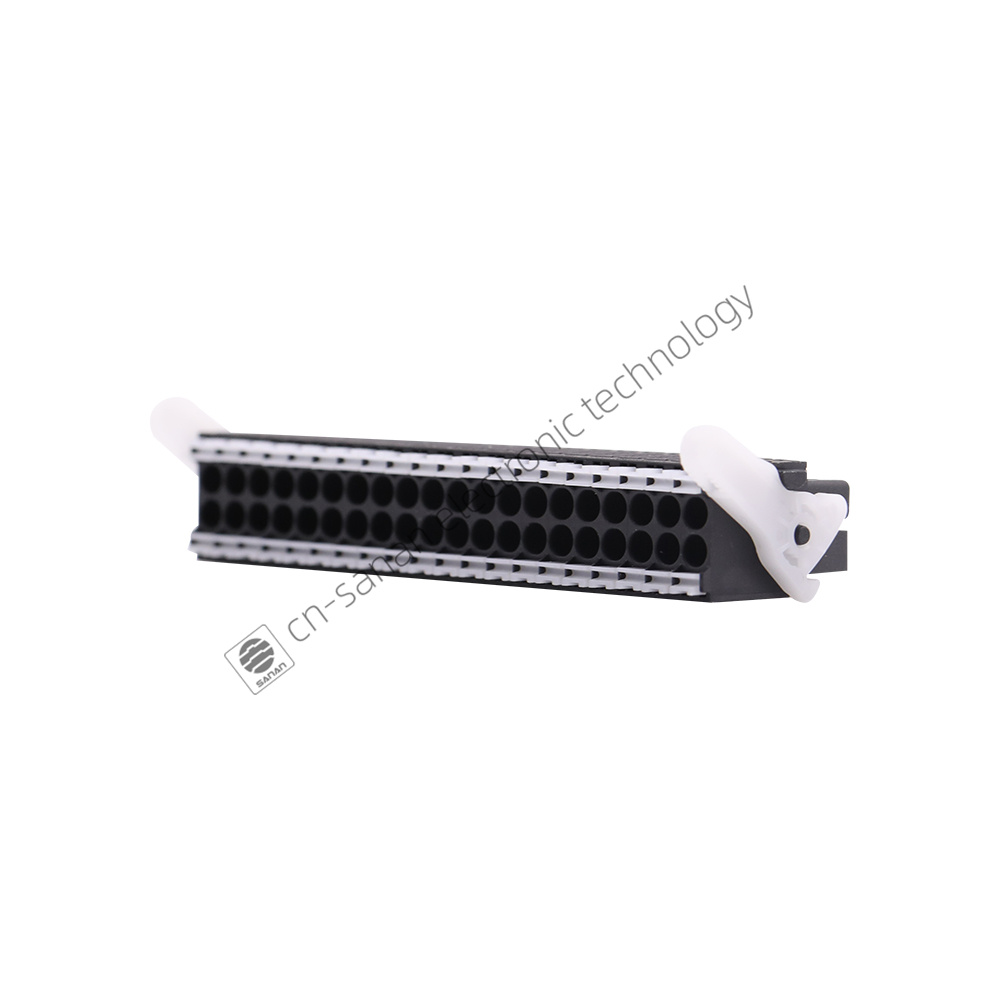

SMT Welding Progress PCB Terminal Block
Model：15ESAKNHG-3.5-40P
Sanan Electronics Technology Co., Ltd. foundedin 2020 at Ningbo City China,it is a professional manufacturer specializing in Terminal Blocks,SMT Welding Progress PCB Terminal Block，Din rail eclsore, IO moduels etc. The products are suitable for Security system,Lighting，automation control, home appliance and soon,which covered both of electronic and electronicapplication.The company make development, production,sales together,have completed processed capability and advanced equipment, mould design, tooling making.injection molding,stamping and assembling all by UL,CE,CQC,and ROHS.The company has always adhereto the quality first, reputation first, customer first. ALL the products are dispatched to American,Europe,Middle East and other countries&areas. We sincerelywelcome customers at home and abroad to cooperationnegotiation of trade and investment.
Send Inquiry PDF DownLoad
Product Description
There are multiple kinds of terminal blocks , they all provide the same function of connecting electronical components in a safe, reliable manner，ideal for a variety of industrial control, automation, and test equipment applications，a terminal block is a tool used to safety connect two or more wires together, once the wires are properly arranged within a terminal block, current will be able to flow between the incoming and outgoing sources, terminal blocks promote the industry automation. Our KNH serises are suitable for SMT welding process, to help clients to in the PCB welding.
Feature
●Suitable for SMT welding process
●Universal installation method to ensure a high degree of flexibility in device design
●PA66 material, sturdy, high temperature resistance, flame retardant.
●Multi-layer wire connection can achieve higher contact density
Product specification of SMT Welding Progress PCB Terminal Block
| Product name | SMT Welding Progress PCB Terminal Block |
| Material | Plastic / copper |
| Color | Black |
| Contact | Form 4P-40P(accept customization ) |
| Pitch | 3.5mm |
| Strip length | 10mm |
| AWG | 26~16AWG |
| Conductor cross section solid | 0.2~1.5mm² |
| Rated voltage | 300V 8A |
| Pin arrangement | Double-row in a straight line |
| Type of installation | PCB welding |
| Contact material | Copper |
| Weight | 5g(depends the contacts) |
| MOQ | 100pieces |
| Brand | OEM |
| Packing | Natural packing or customization |
| Ambient temperature (operation) | -40℃~105℃ |
| Contact zone metal surface | Tin-plated |
| Insulation Materials | PA66 |

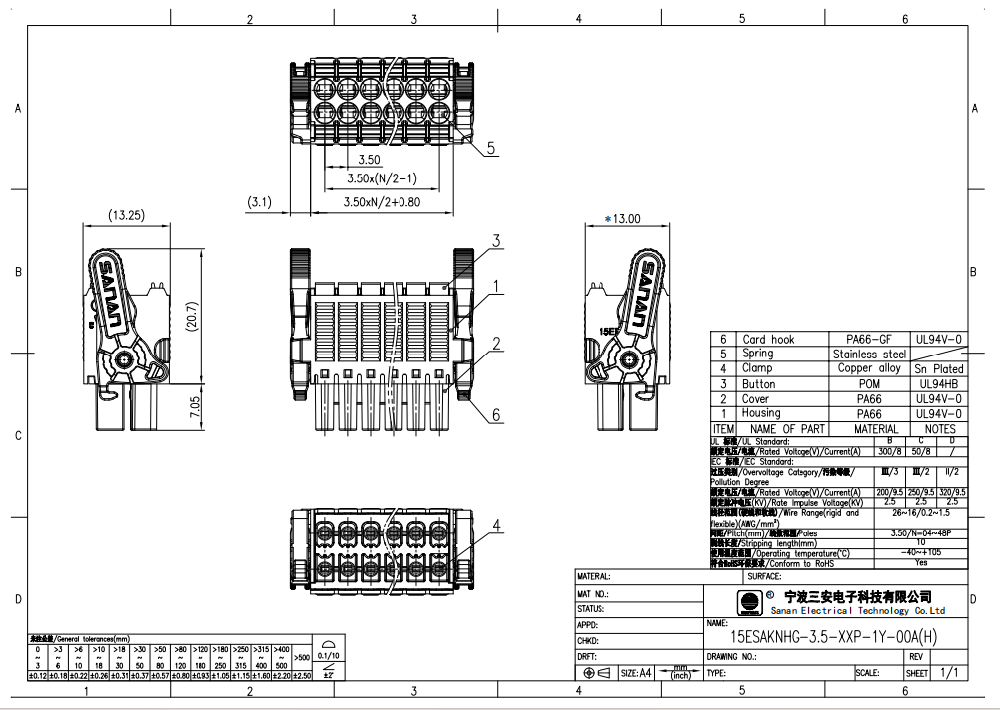

Drawing of SMT Welding Progress PCB Terminal Block
Packing of SMT Welding Progress PCB Terminal Block
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
