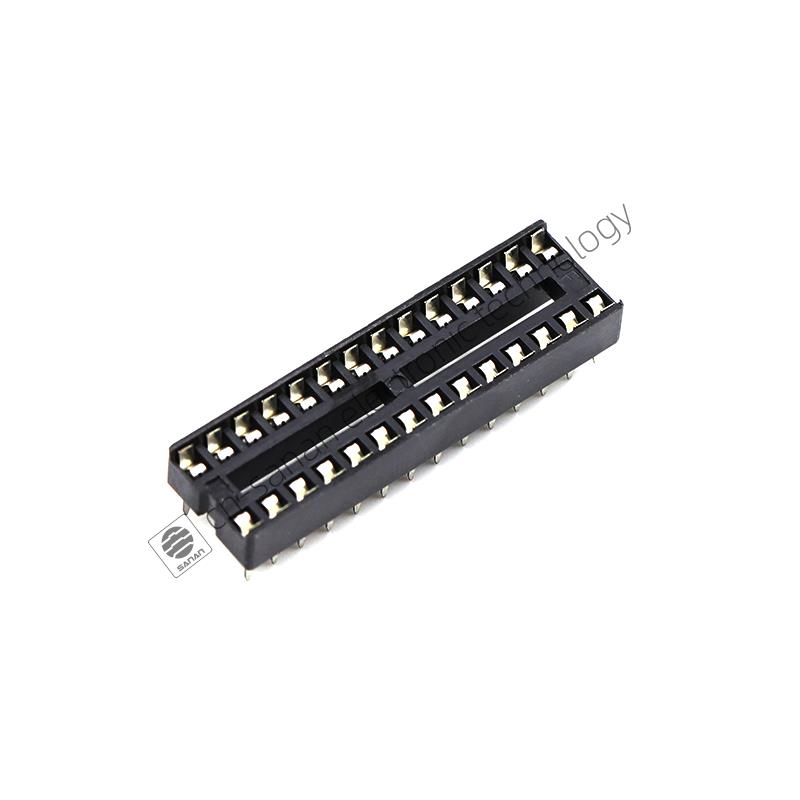

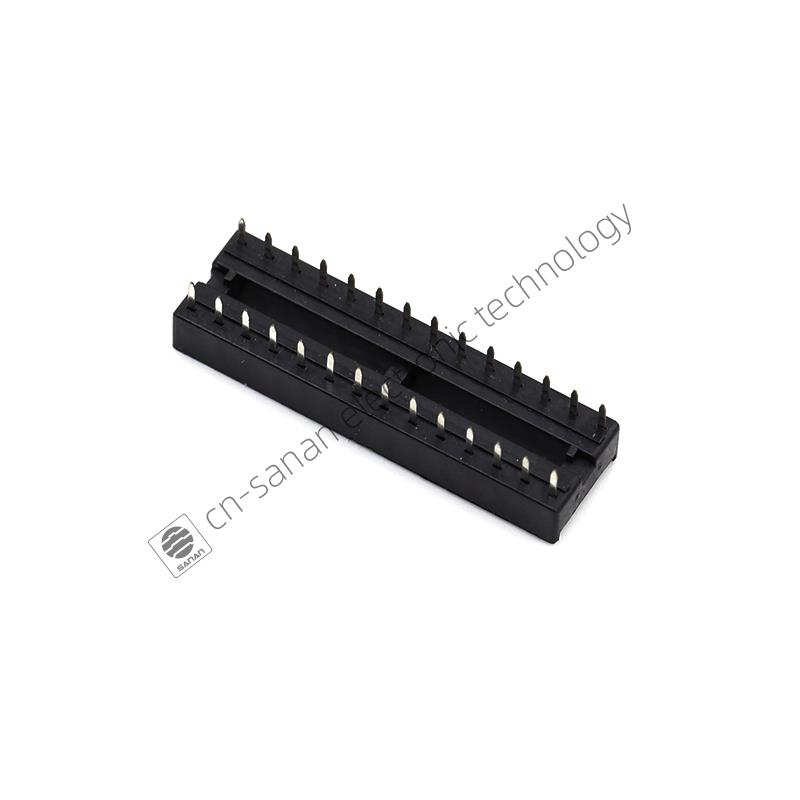

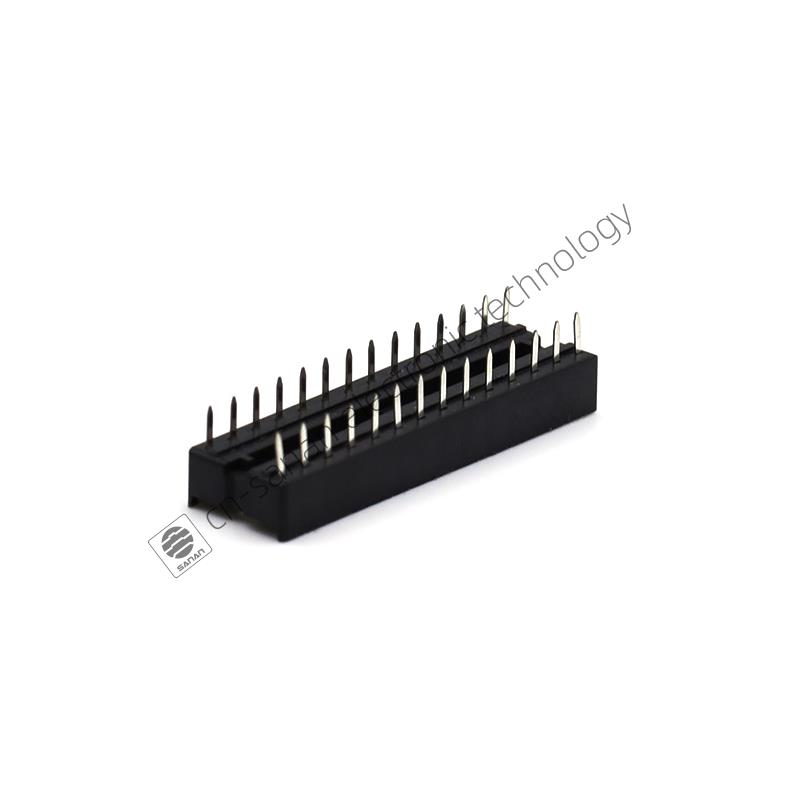

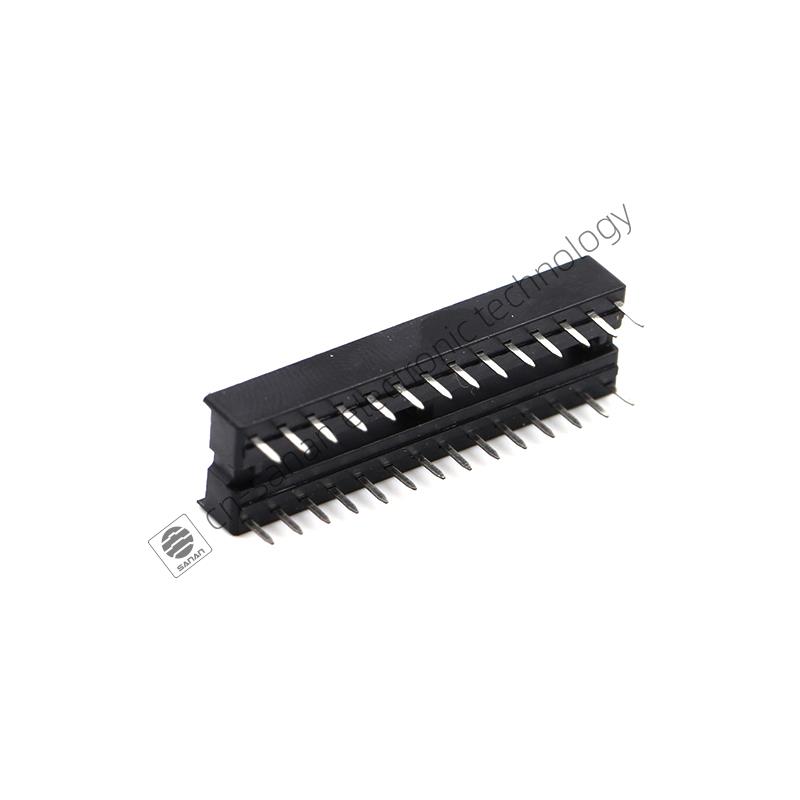

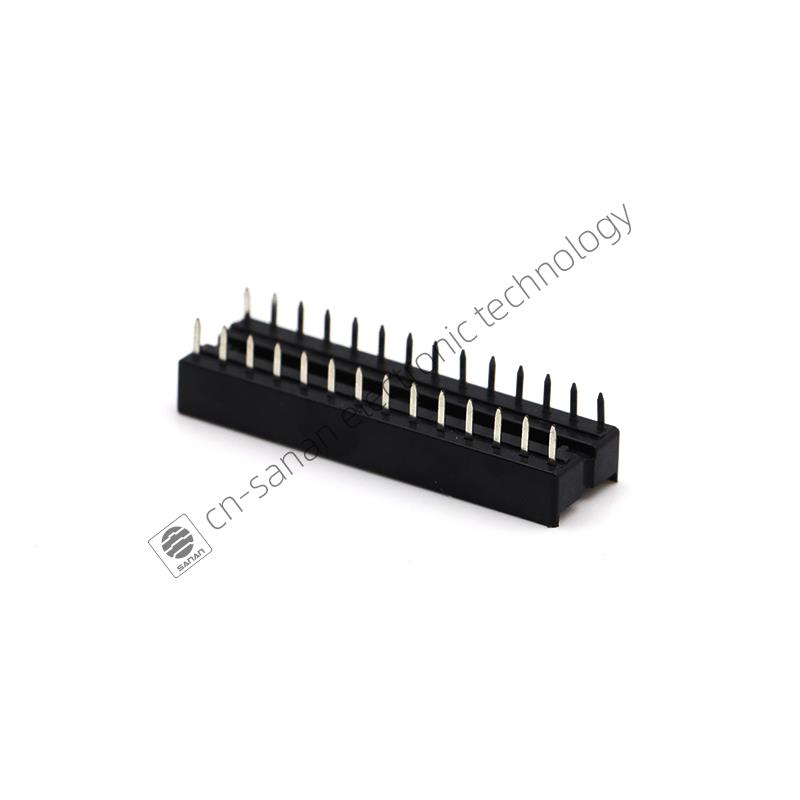

2.54mm IC Pin Header Connector
Model：
2.54mm IC Pin Header Connector is to help customers to solve the connection of industry automation,Sanan electronic technology company is a supplier in China, who offers complete solution for industrial automation,electric energy, wind power generation, rail traffic and so on. we devote ourselves to this part and get into the world’s automation, we improve our quality and obtain the certification of CE, UL, ROSH etc of pin header connector to provide higher service.
Send Inquiry PDF DownLoad
Product Description
Pin header connectors comprise several different means of connection. Generally, one side is a series of pins which are soldered to a PCB, and they can either be at a right-angle to the PCB surface (usually called "straight") or parallel to the board's surface (confusingly referred to as "right-angle" pins),they are stiff metallic connectors that are soldered to a circuit board and stick up to receive a connection from a female socket
Feature
●Stable performance: Stable electric current and signal transmission performance.
●An ideal connector for PCB, IC or your RPi, are widely used in computer, breadboard, arduinoetc and other electronic projects
●Have the characteristics of convenient connection, excellent electrical and mechanical properties
Product specification of 2.54mm IC Pin Header Connector
| Product name | 2.54mm IC Pin Header Connector |
| Material | Plastic / metal |
| Color | Black(accept customization) |
| Contact | Brass |
| Pitch | 2.54mm |
| Plating | Tin |
| Contact number | 2X10 |
| Application | PCB or other applications |
| Material Flammability Rating | 94-V0 |
| Storage Temperature | -20℃~+70℃ |
| Operating Temperature | -40℃~+105℃ |
| Current Rating | 3AMP |
| Insulator Resistance | 1000MΩmin |
| Contact Resistance | 20MΩmax |
| Withstanding Voltage | 1000V AC/rms 50HZ For 1 minute |
| Packing | Plastic bag or customization |
| Brand | OEM |
| MOQ | 500pcs |

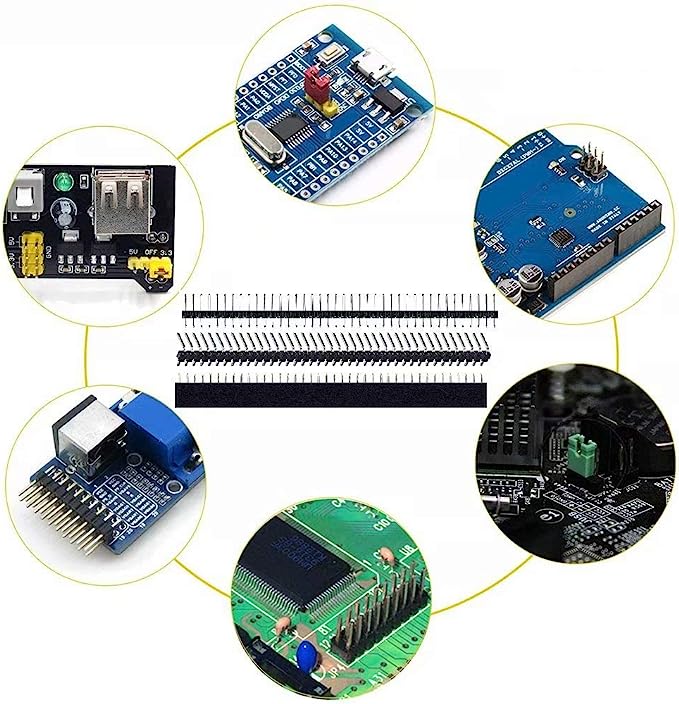

Application of 8P Female Pin Header
Packing
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
