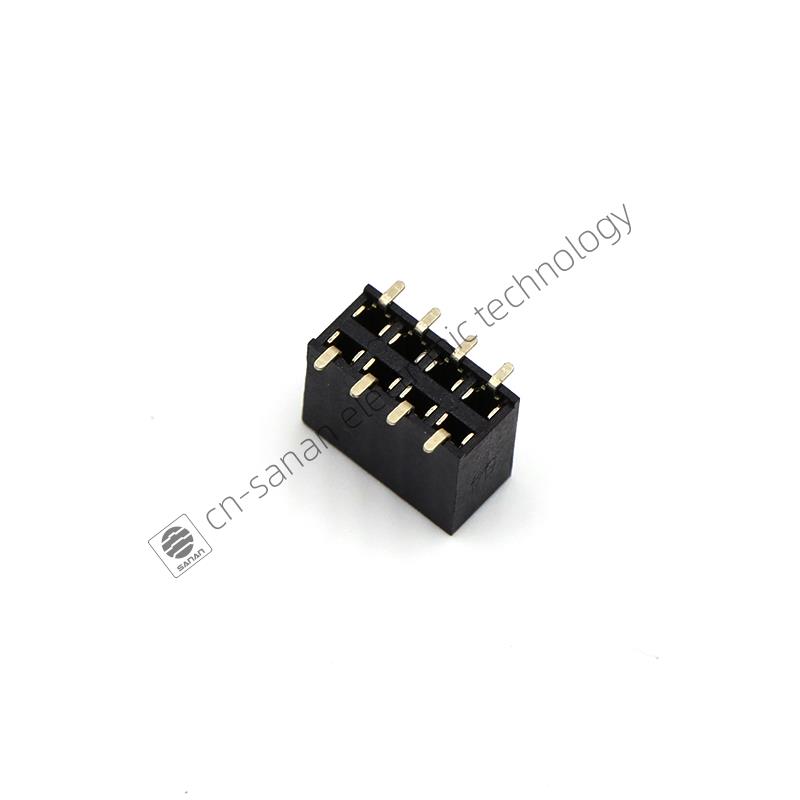

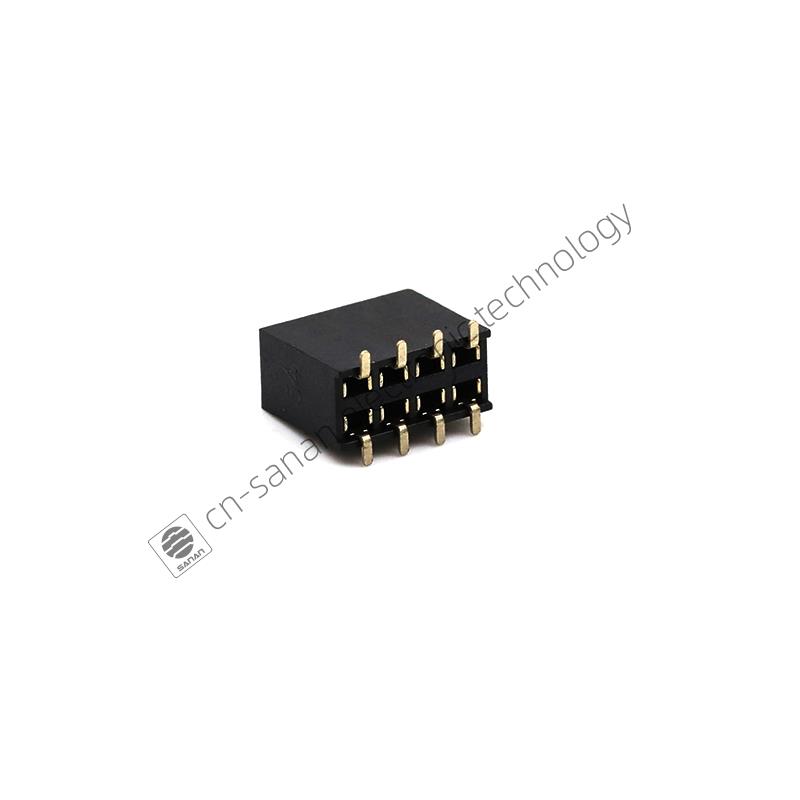

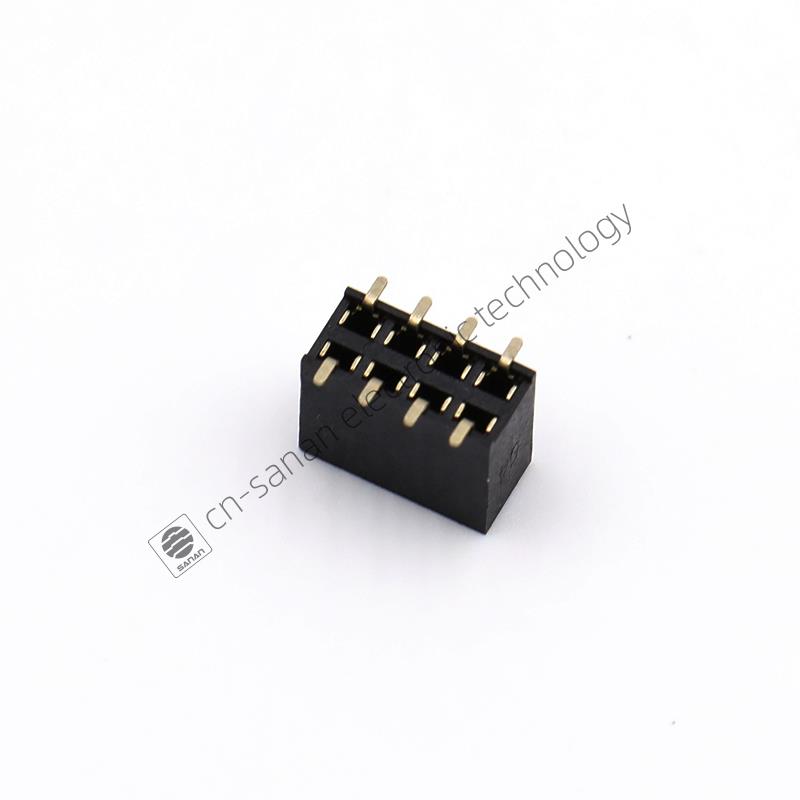

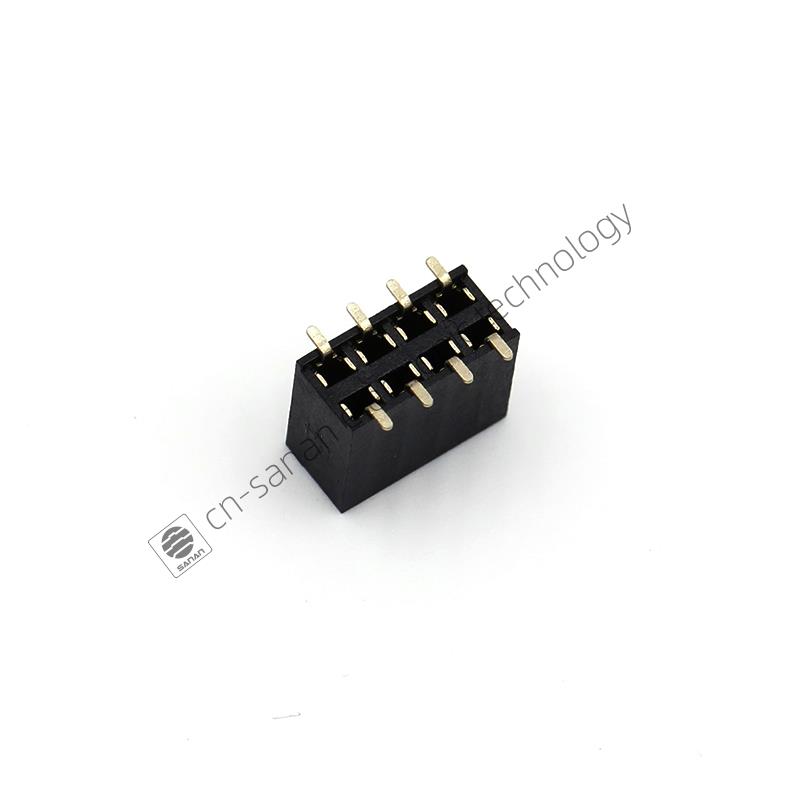

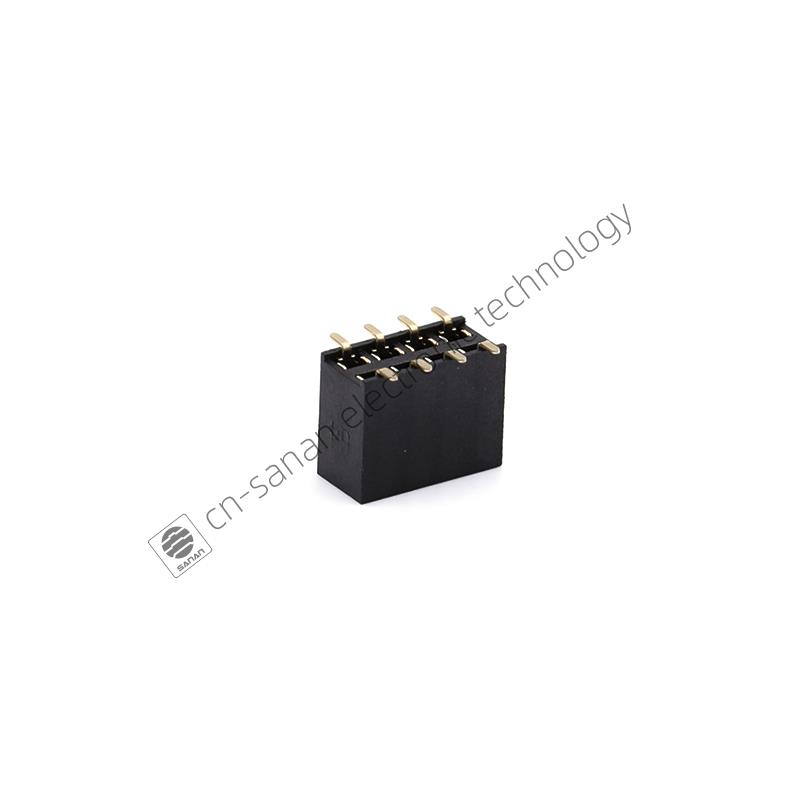

Female 2.0mm Double Row Pin Header Connector
Model：
Sanan is chinese Female 2.0mm Double Row Pin Header Connector manufacturer, we are quality, reliable and trusted to many clients’ supplier list, hoping we can to be your long term cooperative partner.
Our product pin header connector(or simply header) is a form of electrical connector. A female pin header consists of one or more rows of metal pins molded into a plastic base, often 2.omm (or another sizes) apart, though available in many spacings.
Send Inquiry PDF DownLoad
Product Description
Pin header connectors comprise several different means of connection. Generally, one side is a series of pins which are soldered to a PCB, and they can either be at a right-angle to the PCB surface (usually called "straight") or parallel to the board's surface (confusingly referred to as "right-angle" pins),they are stiff metallic connectors that are soldered to a circuit board and stick up to receive a connection from a female socket
Feature
●Stable performance: Stable electric current and signal transmission performance.
●An ideal connector for PCB, IC or your RPi, are widely used in computer, breadboard, arduinoetc and other electronic projects
●Have the characteristics of convenient connection, excellent electrical and mechanical properties
Product specification of Female 2.0mm Pin Header Connector
| Product name | Female 2.0mm Double Row Pin Header Connector |
| Material | Plastic / metal |
| Color | Black(accept customization) |
| Contact | Brass |
| Pitch | 2.54mm |
| Plating | Tin |
| Contact number | 2X4 |
| Application | PCB or other applications |
| Material Flammability Rating | 94-V0 |
| Storage Temperature | -20℃~+70℃ |
| Operating Temperature | -40℃~+105℃ |
| Current Rating | 3AMP |
| Insulator Resistance | 1000MΩmin |
| Contact Resistance | 20MΩmax |
| Withstanding Voltage | 1000V AC/rms 50HZ For 1 minute |
| Packing | Plastic bag or customization |
| Brand | OEM |
| MOQ | 500pcs |
Drawing of Female 2.0mm Pin Header Connector

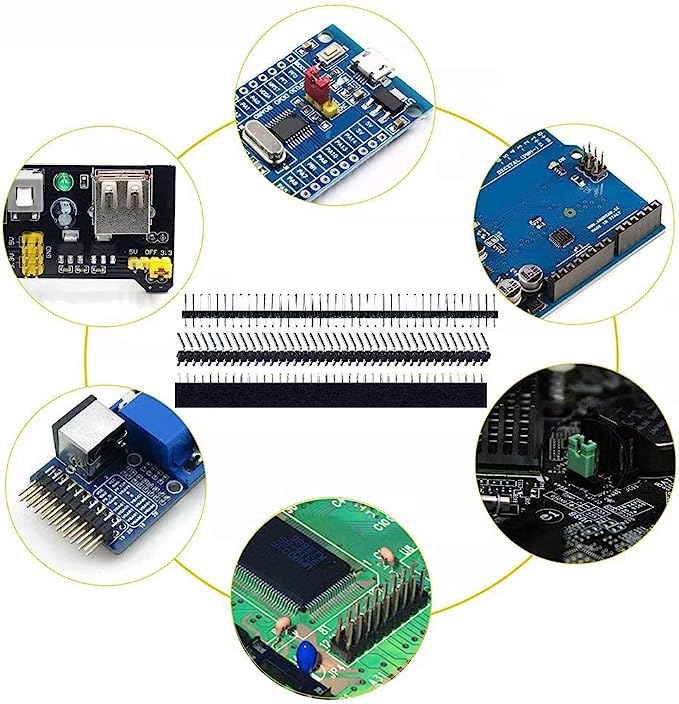

Application of Female 2.0mm Pin Header Connector
Packing
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
