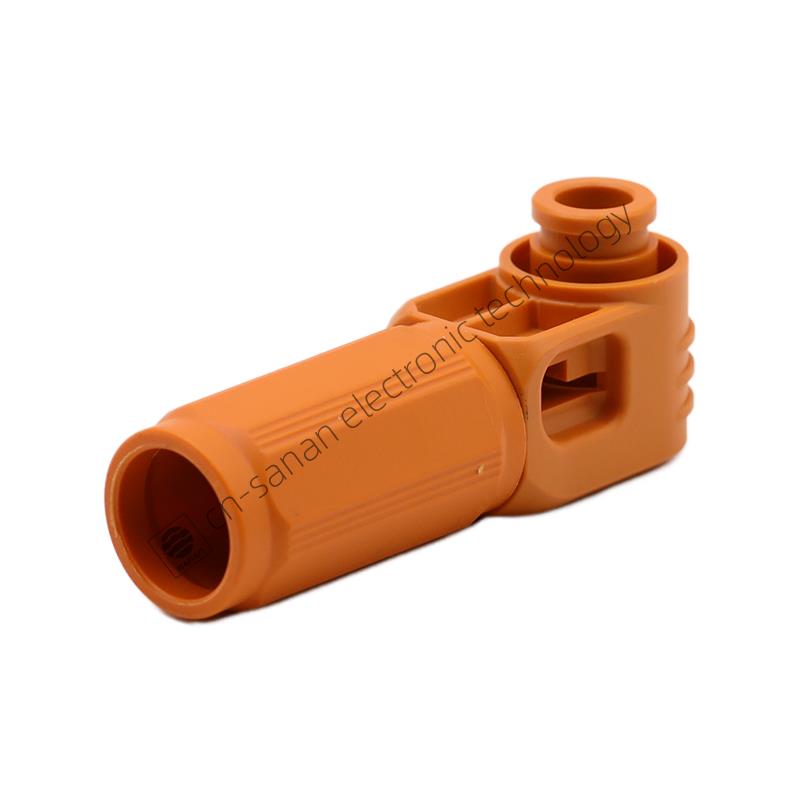

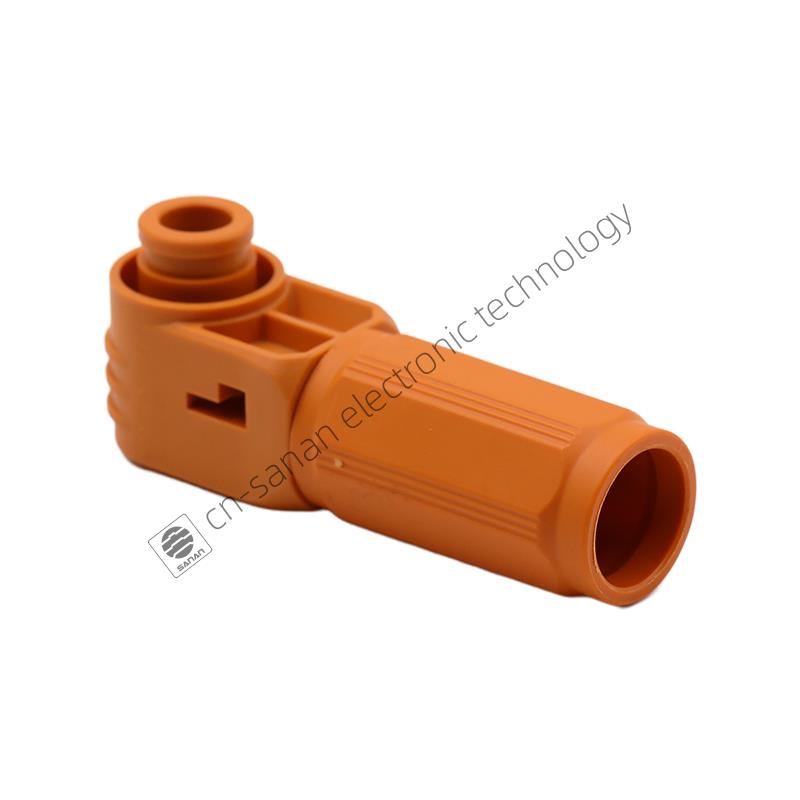

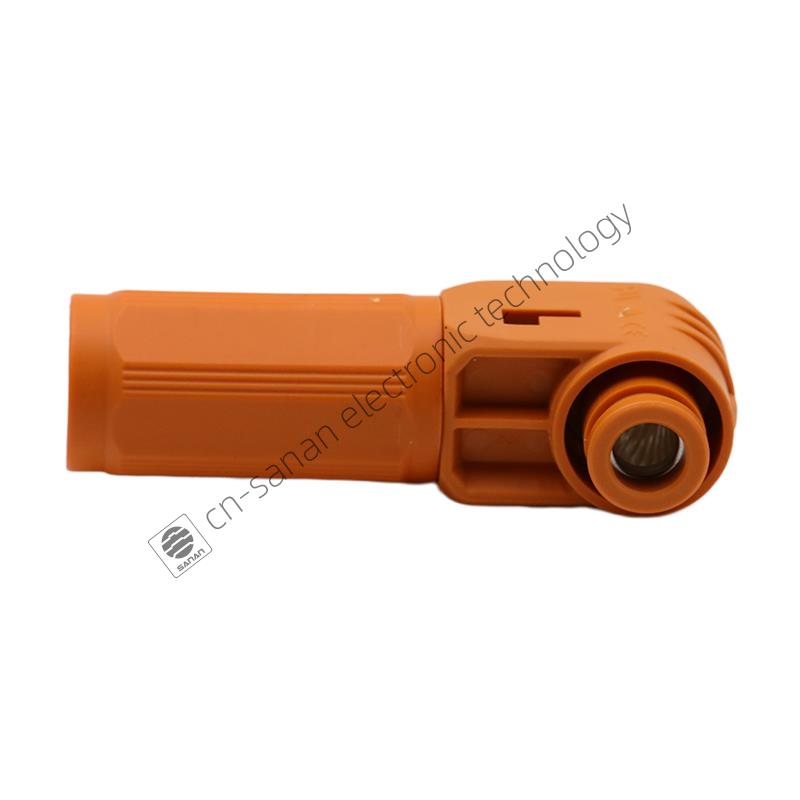

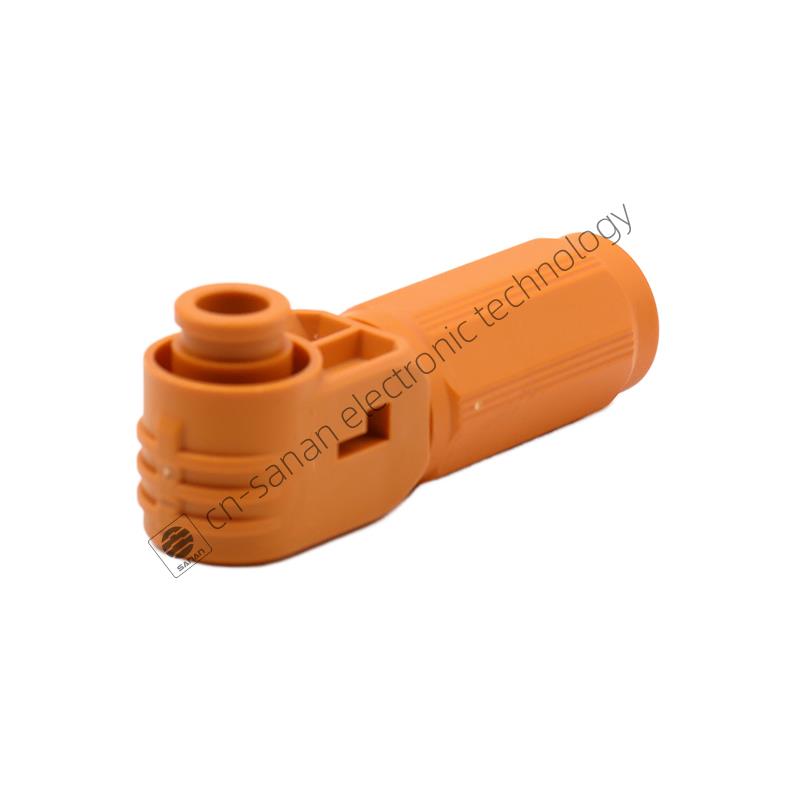

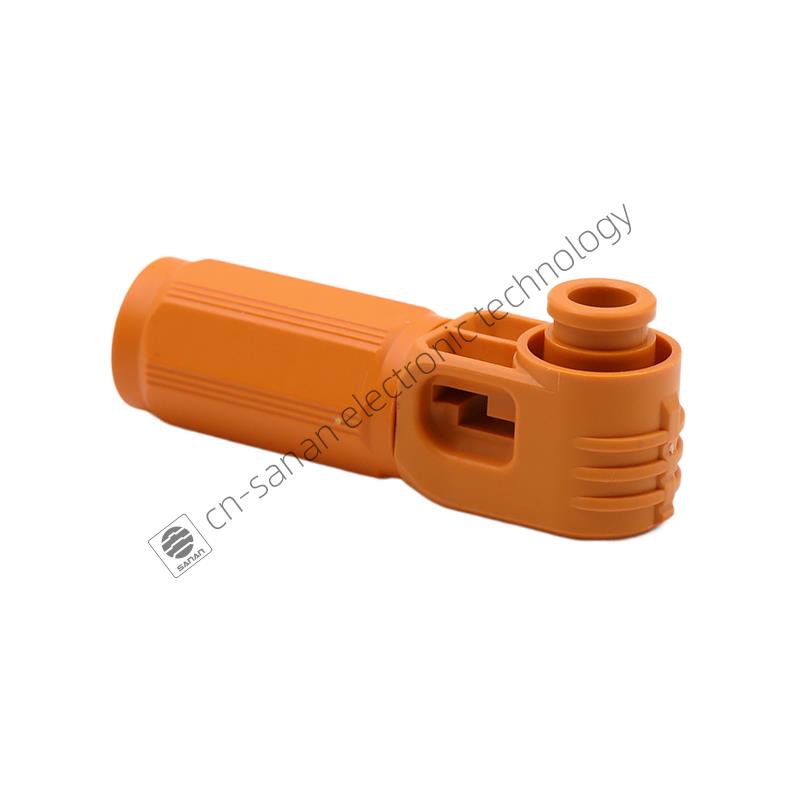

200A Energy Storage Connector
Model：
Sanan is a leading China 200A Energy Storage Connector manufacturers. Sanan, a manufacture chinese knows the ESS is the green energy resources to support sustainable development，ESS( Energy Storage Systems) is one of the beast ways in the smart homes of today,, energy storage is a technology and equipment system that converts, transmits, transfers, manages, regulates, controls. And stores energy to meet people’s energy needs by storing it and releasing it when needed, while achieving efficient use of energy,so we provides a range of high performance energy storage connectors for ESS.
Send Inquiry PDF DownLoad
Product Description
Sanan is a leading China 200A Energy Storage Connector manufacturers. Energy storage connector is a high-performance connector used to connect energy storage devices. In general, the energy storage connector needs to meet the following characteristics: high safety factor, high power transmission, reliability, low plugging force, easy installation and maintenance, etc,featured with good conductivity, Sanan has a completed, advanced, high automatic production techniques and equipments to produce the energy storage connectors to ensure the high quality.
Feature
●Future-oriented connection technology: voltages up to 1500 V

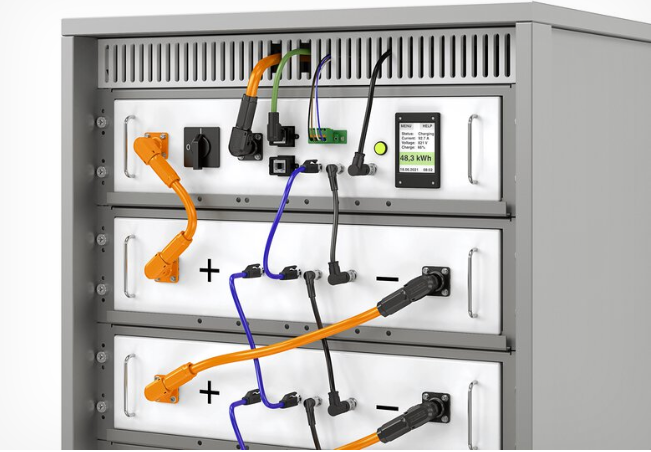

●Flexible in use: connections are possible on the front or the rear of the battery module
●Quick installation: no wiring effort, thanks to the pluggable interface
●Safe installation and maintenance: comprehensive touch protection even when not plugged in
Durable connection: clear feedback during plugging ensures highest degree of safety
Product specification of Energy Storage Connector
| Product name | Energy Storage Connector200A |
| Material | Plastic / metal |
| Color | Black/orange (accept customization) |
| Protection grade | IP67 |
| Material | Nylon |
| Flammability rating | UL94V-0 |
| Product range | ESS socket |
| Rated voltage | 1500V |
| Rated current | 200A |
| Brand | OEM |
| MOQ | 50 |
| Packing | Natural packing |
| Cable sectional area | 1/0AWG(50mm²） |
| Cable outer diameter | 12.5~14mm |
| Wiring mode | Crimp |
| Ambient temperature (storage/transportation) | -40°C ~ +80°C |
Operation of DIN Rail Terminal Quick Connector
Packing
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
