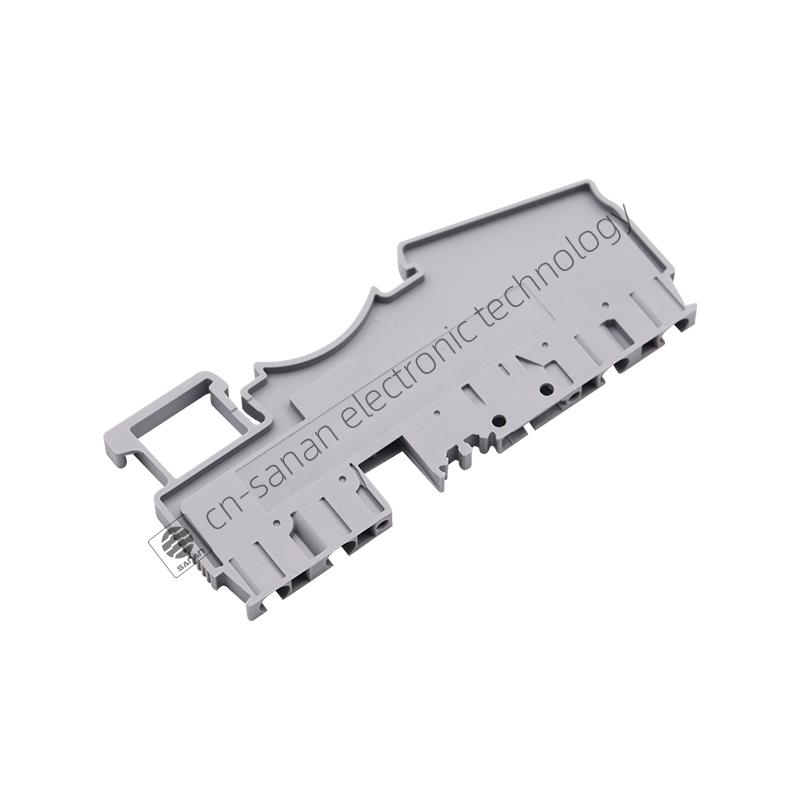

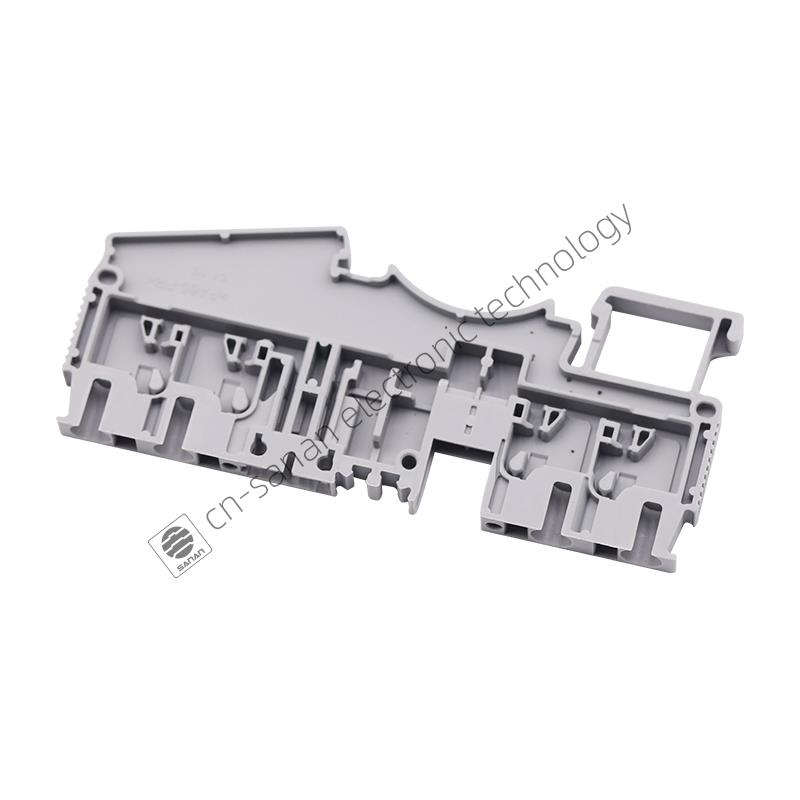

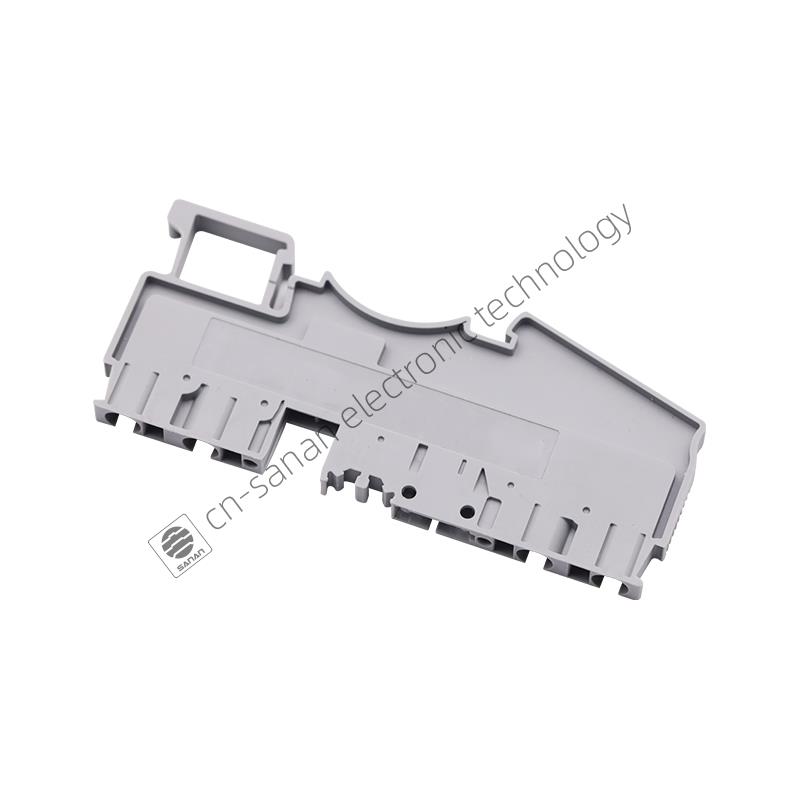

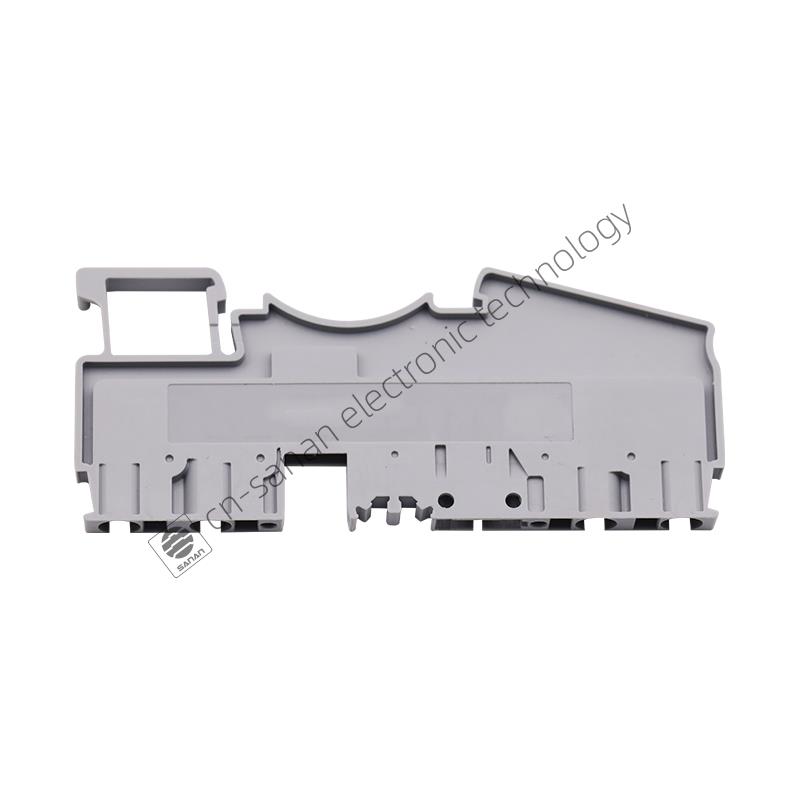

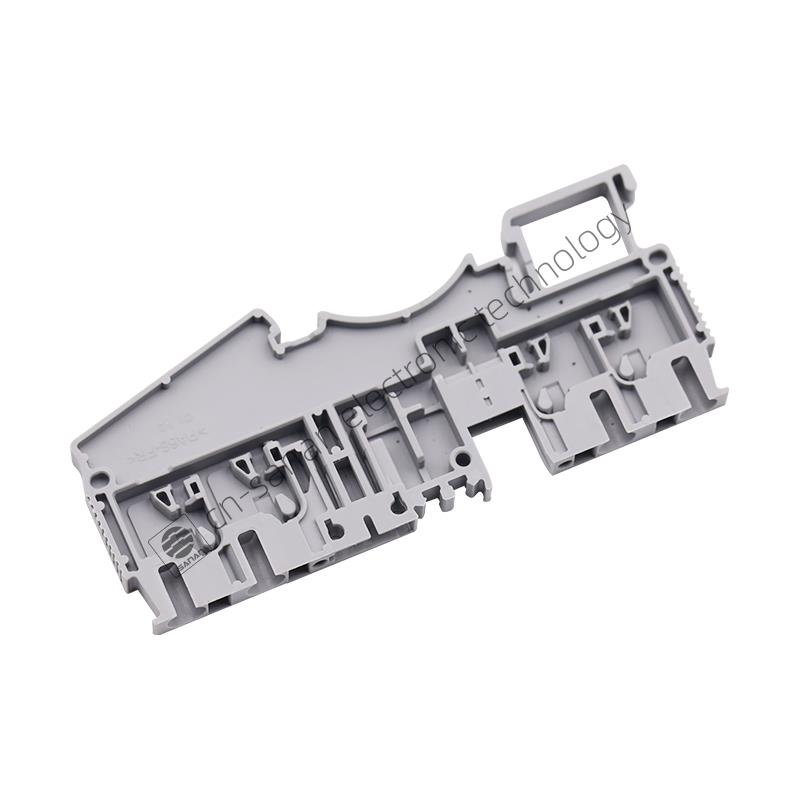

24A Push In Rail Terminal Block
Model：
Sanan Electronic Technology Co,Ltd. locaded in China is specializing in the production of electronic components and various connectors,We are located in NINGBO city with convenient transporta tion access, pull tester and valve the market, we prduce our din rail terminal blocks with advanced equipments, we welcome OEM and ODM customers.The following is the introduction of 24A Push In Rail Terminal Block, hoping to help you better understand 24A Push In Rail Terminal Block. Welcome new and old customers to continue to cooperate with us to create a better future!
Send Inquiry PDF DownLoad
Product Description
DIN rail terminal blocks create a complete circuit by allowing the connection of wiring from one piece of equipment to the input-output ports on other equipment. They are widely used in electrical cabinets and industrial racks to protect complex equipment. They are a standard component in telecommunications, building management, energy conservation, HVAC systems, power supplies, lighting control, and vehicle electronics, our din rails terminal blocks can be suitable for different standards, for example 10A,20A,24A,32A,57A, and in order to improve our level, our blocks have the CE,UL ROSH certifications.
Feature
●Equipped with dual-channel bridge wells, circuit connection testing is more flexible.
●Unique plug-in bridge, high circuit connection efficiency.
●Optional marker to avoid wire mis-inserting.
●Equipped with test holes for easy testing of the circuit.
●With V0 flame retardant
●Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space
Product specification of 24A Push In Rail Terminal Block
| Product name | 24A Push In Rail Terminal Block |
| Material | Flame resistant Nylon PA66 V0 |
| Color | Grey(accept customization) |
| Connection method | Screw connection |
| Number of connections | 4 |
| Width | 5.2mm |
| Height | 44.3mm |
| Length | 72.2mm |
| Strip length | 13~14mm |
| Conductor cross section solid AWG | 26~12 |
| Conductor cross section solid | 0.2 mm² - 4 mm² |
| Rated voltage | 800V |
| Rated current | 24A |
| Ambient temperature (operation) | -40 °C ~ 105 °C（depending on derating curve） |
| Weight | 12g |
| MOQ | 100pcs |
| Packing | Natural packing or customization |
| Brand | OEM |

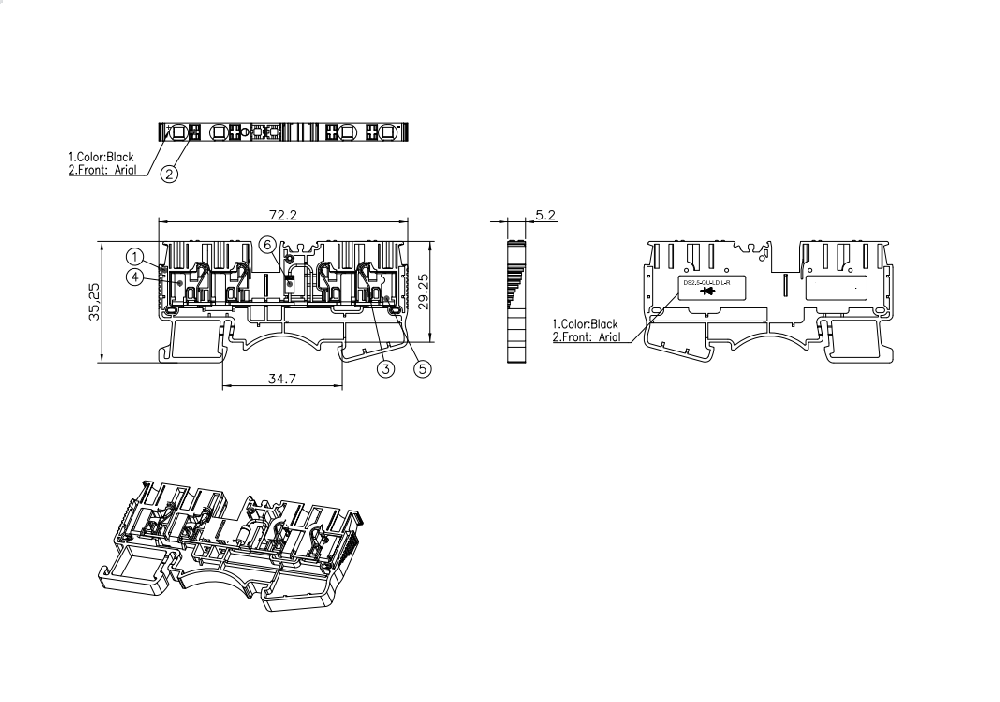

Drawing of 24A Push In Rail Terminal Block
Packing of pluggable terminal block
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
