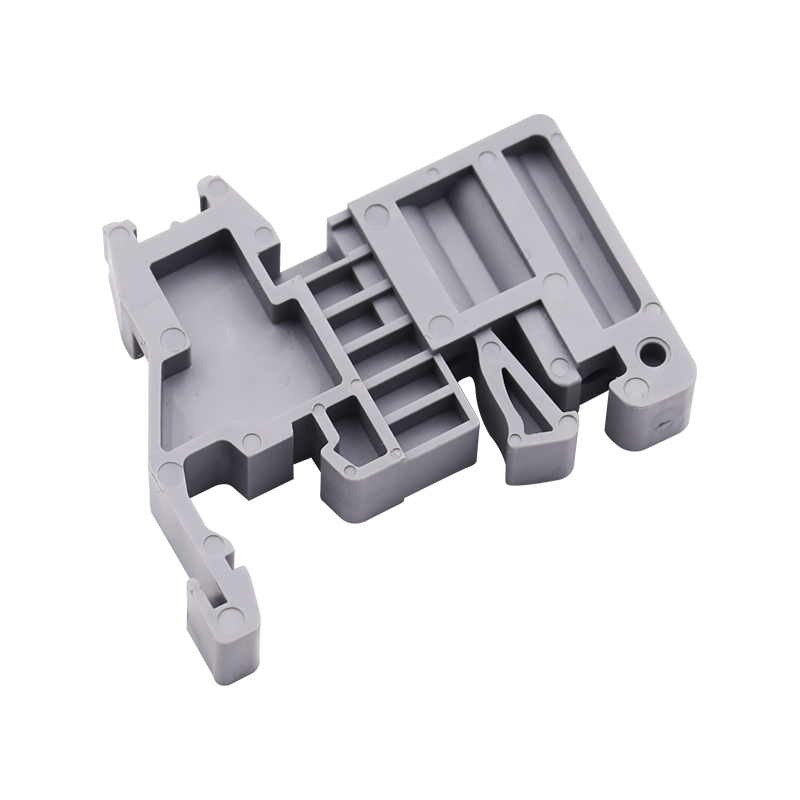

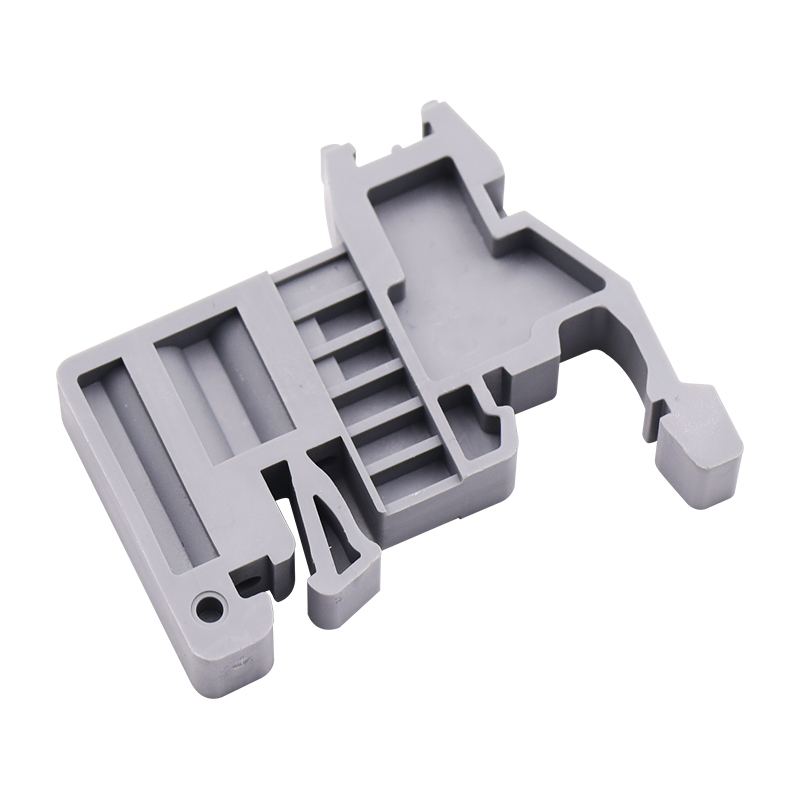

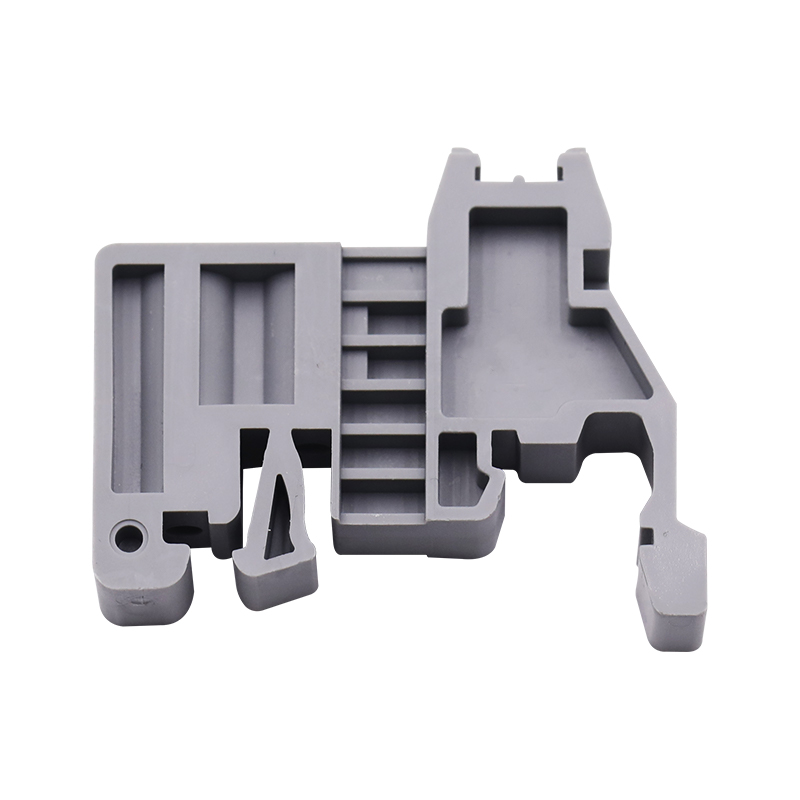

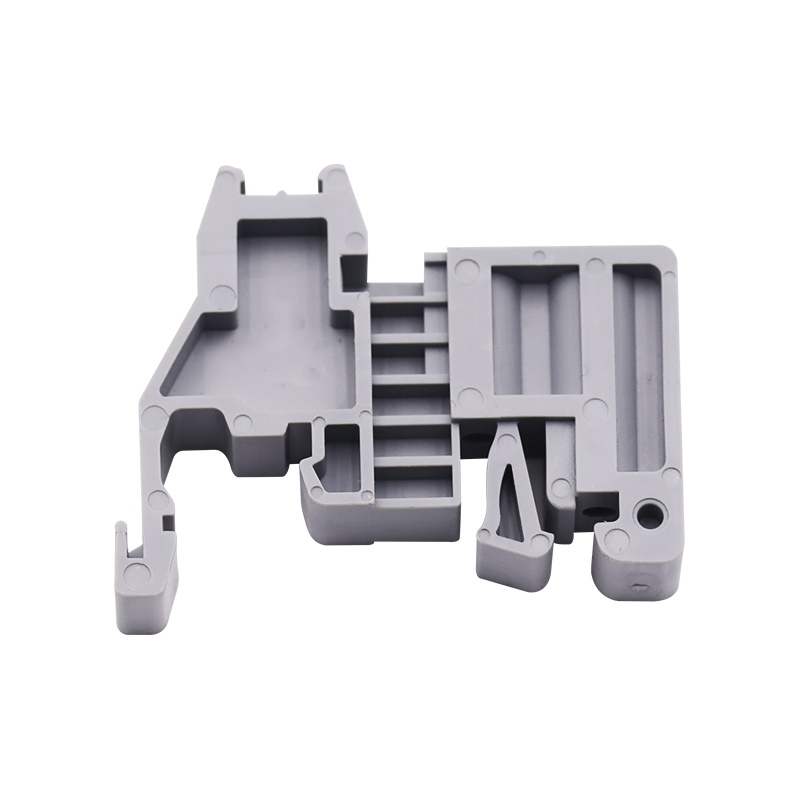

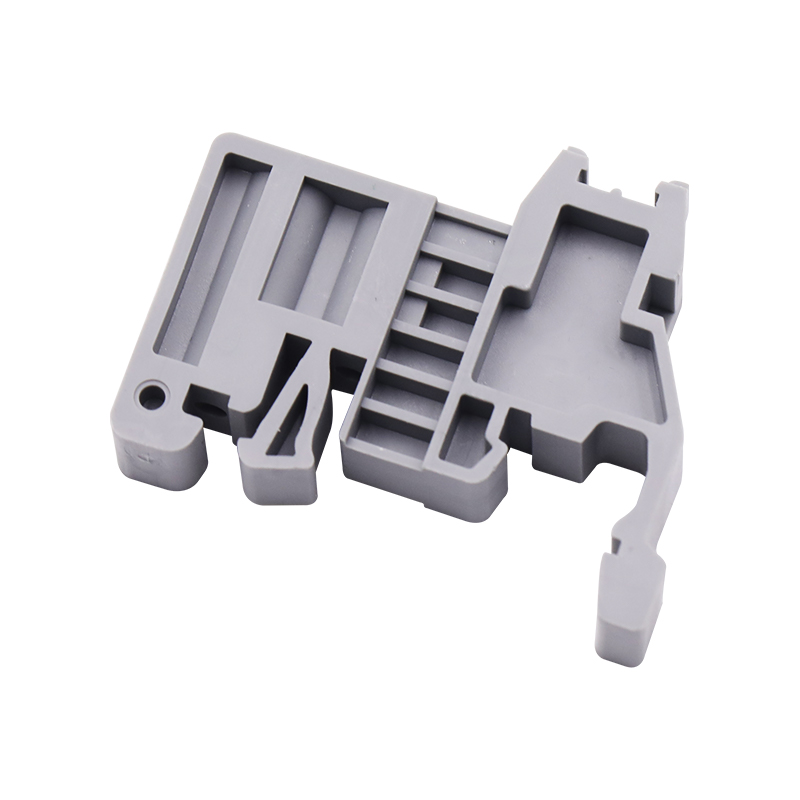

Din Rail Terminal Block End Stop
Model：
Locaded in China Sanan Electronic Technology Co,Ltd. is specializing in the production of electronic components and various connectors,We are located in NINGBO city with convenient transporta tion access, pull tester and valve the market, we prduce our din rail terminal blocks with advanced equipments, we welcome OEM and ODM customers.As the professional manufacture, we would like to provide you Din Rail Terminal Block End Stop.And we will offer you the best after-sale service and timely delivery.
Send Inquiry PDF DownLoad
Product Description
DIN rail terminal blocks create a complete circuit by allowing the connection of wiring from one piece of equipment to the input-output ports on other equipment. They are widely used in electrical cabinets and industrial racks to protect complex equipment. They are a standard component in telecommunications, building management, energy conservation, HVAC systems, power supplies, lighting control, and vehicle electronics, our din rails terminal blocks can be suitable for different standards, for example 10A,20A,24A,32A,57A, and in order to improve our level, our blocks have the CE,UL ROSH certifications.
Feature
●Equipped with dual-channel bridge wells, circuit connection testing is more flexible.
●Unique plug-in bridge, high circuit connection efficiency.
●Optional marker to avoid wire mis-inserting.
●Equipped with test holes for easy testing of the circuit.
●With V0 flame retardant
●Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space
Product specification of din rail terminal block end stop
| Product name | Din Rail Terminal Block End Stop |
| Material | Flame resistant Nylon PA66 V0 |
| Color | Grey(accept customization) |
| Connection method | In line connection |
| Number of connections | 4 |
| Width | 9.5mm |
| Height | 35.3mm |
| Length | 43.2mm |
| Ambient temperature (operation) | -40 °C ~ 105 °C（depending on derating curve） |
| Weight | 2.4g |
| MOQ | 100pcs |
| Packing | Natural packing or customization |
| Brand | OEM |
Drawing of din rail terminal block end stop
Packing of pluggable terminal block
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
