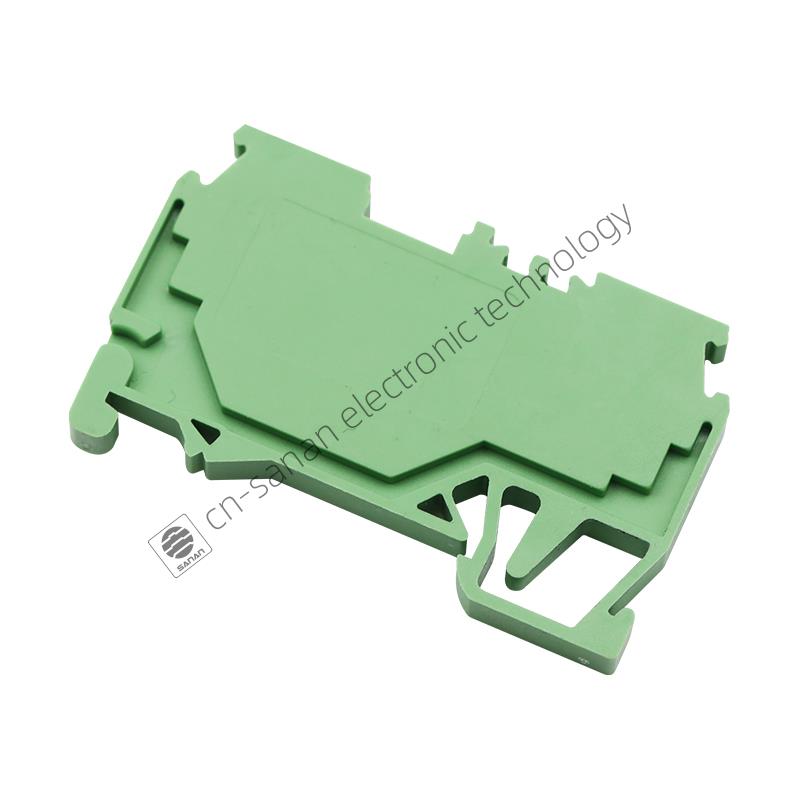

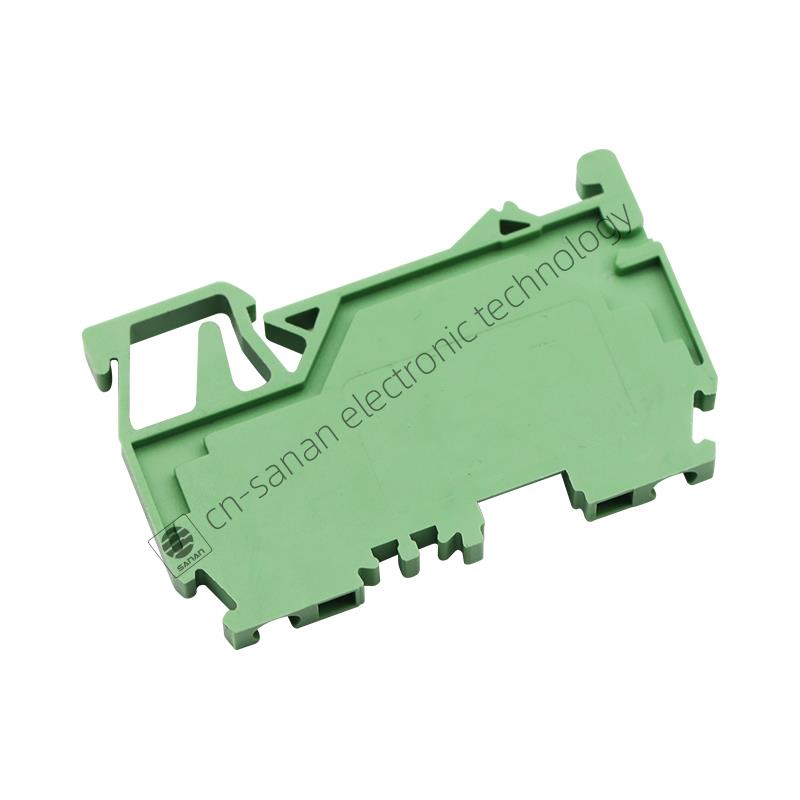

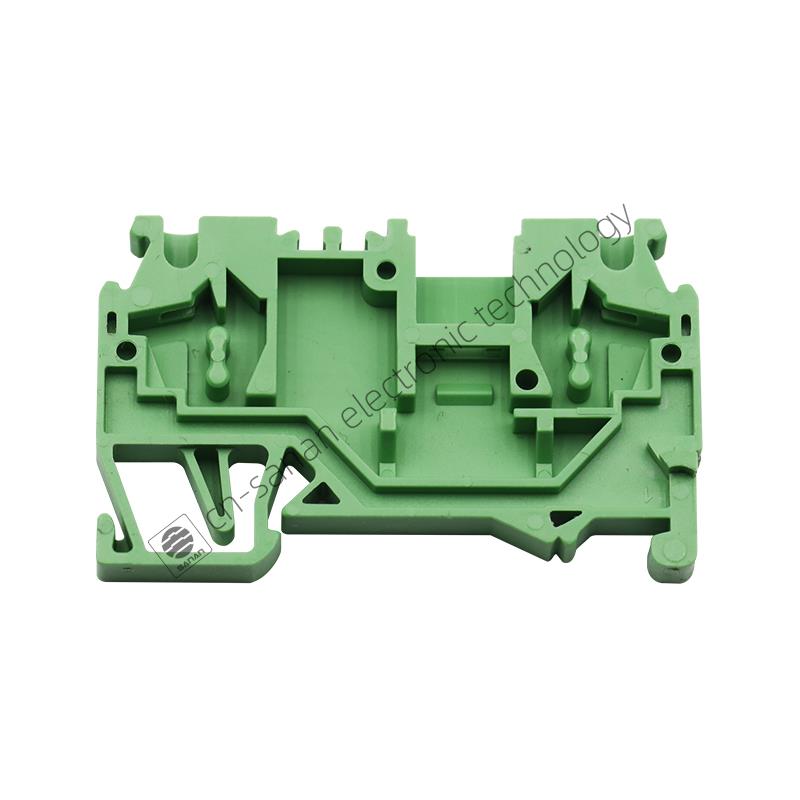

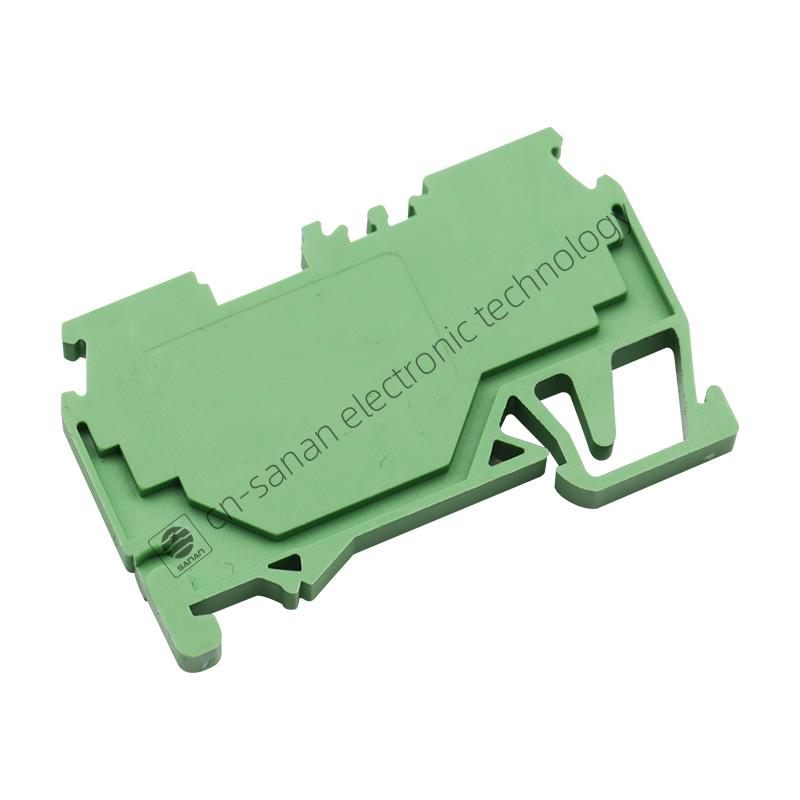

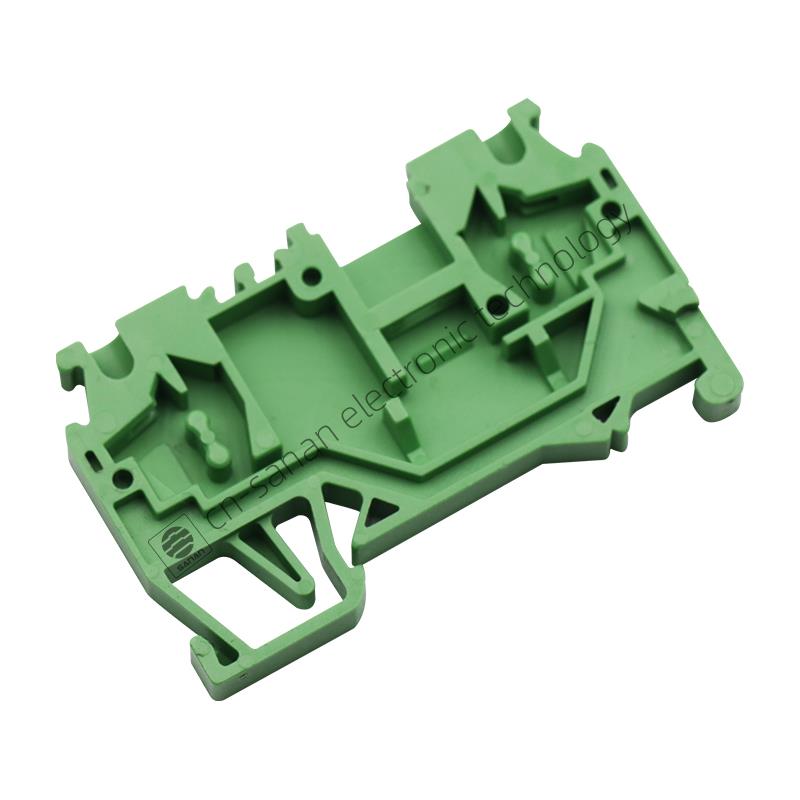

UK 2.5 Spring Type Rail Terminal Block
Model：
Sanan Electronic Technology Co,Ltd. is manufacturer, research, development and production of din rail terminal blocks, located in Ningbo which close to Shanghai.The company strictlyimpleme ent the ISO9001:2008 quality management system .All products ar e in line with the RoHS directivein full accordance with CEULVDE,SGS,REACH and other standard production.You can rest assured to buy UK 2.5 Spring Type Rail Terminal Block from our factory and we will offer you the best after-sale service and timely delivery.
Send Inquiry PDF DownLoad
Product Description
DIN rail terminal blocks create a complete circuit by allowing the connection of wiring from one piece of equipment to the input-output ports on other equipment. They are widely used in electrical cabinets and industrial racks to protect complex equipment. They are a standard component in telecommunications, building management, energy conservation, HVAC systems, power supplies, lighting control, and vehicle electronics, our din rails terminal blocks can be suitable for different standards, for example 10A,20A,24A,32A,57A, and in order to improve our level, our blocks have the CE,UL ROSH certifications.
Feature
●Equipped with dual-channel bridge wells, circuit connection testing is more flexible.
●Unique plug-in bridge, high circuit connection efficiency.
●Optional marker to avoid wire mis-inserting.
●Equipped with test holes for easy testing of the circuit.
●With V0 flame retardant
●Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space
Product specification of UK 2.5 Spring Type Rail Terminal Block
| Product name | UK 2.5 Spring Type Rail Terminal Block |
| Material | Flame resistant Nylon PA66 V0 |
| Color | Green(accept customization) |
| Connection method | Spring connection |
| Number of connections | 2 |
| Width | 5mm |
| Height | 32.45mm |
| Length | 53mm |
| Strip length | 8~9mm |
| Conductor cross section solid AWG | 28- 14 |
| Conductor cross section solid | 0.2 mm² - 2.5mm² |
| Rated voltage | 800V |
| Rated current | 24A |
| Ambient temperature (operation) | -40 °C ~ 105 °C（depending on derating curve） |
| Weight | 10g |
| MOQ | 100pcs |
| Packing | Natural packing or customization |
| Brand | OEM |

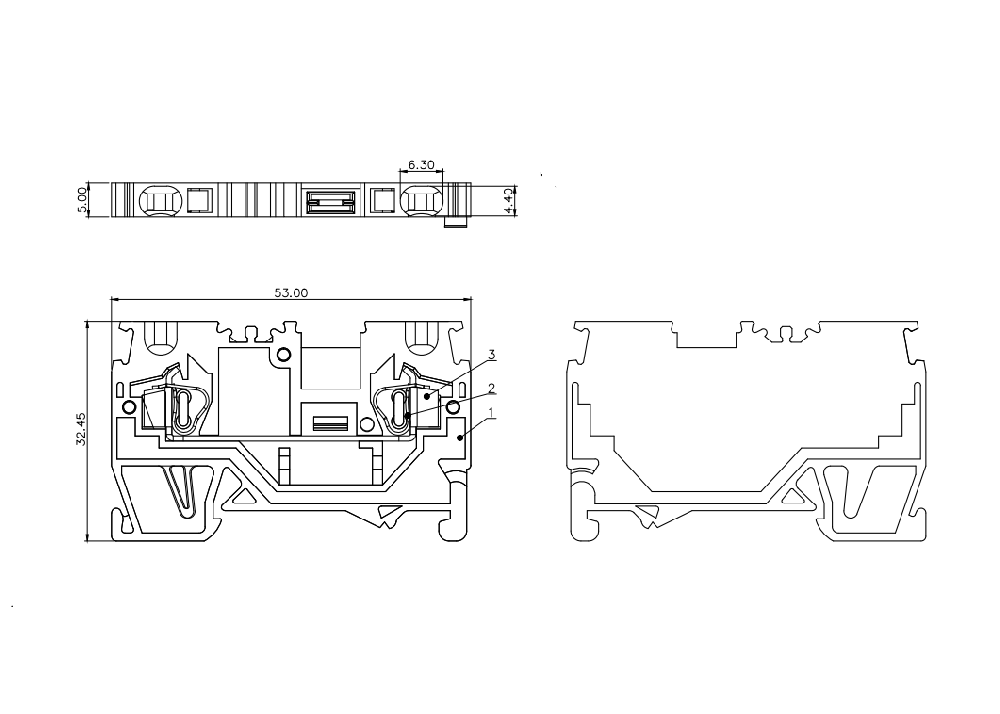

Drawing of UK 2.5 Spring Type Rail Terminal Block
Packing of pluggable terminal block
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
