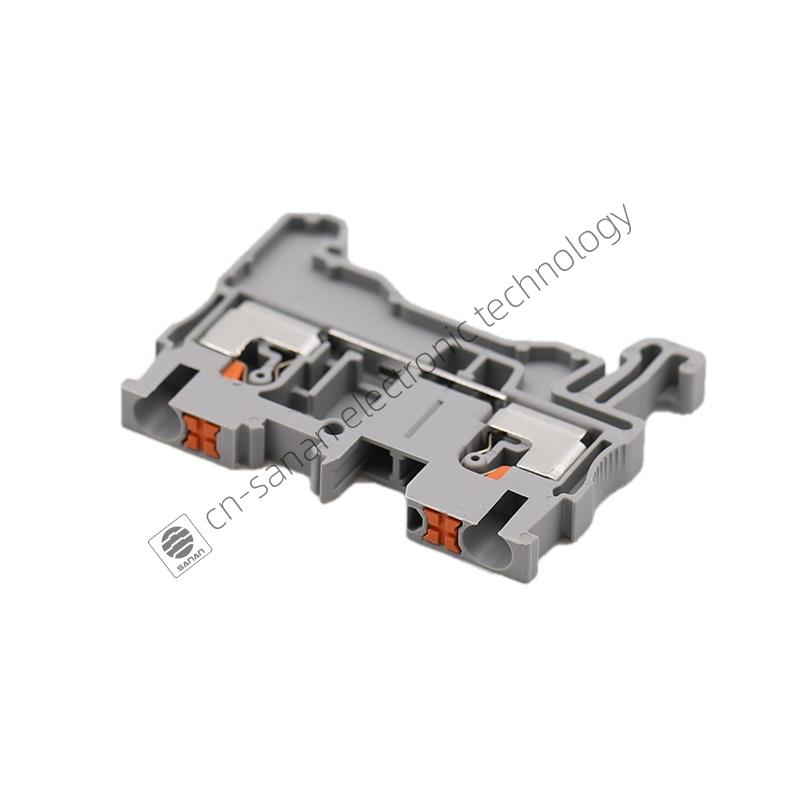

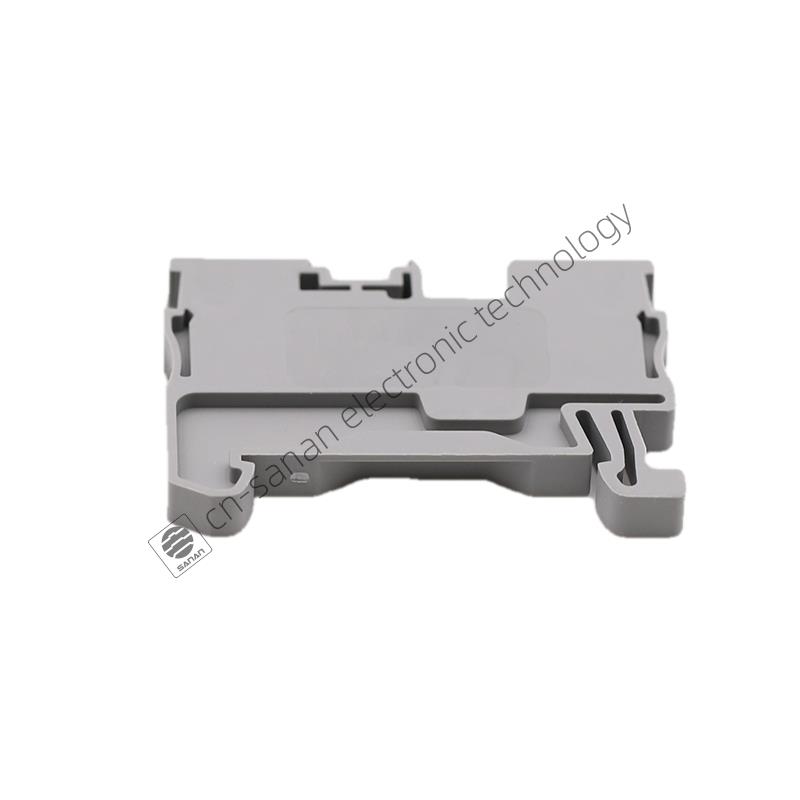

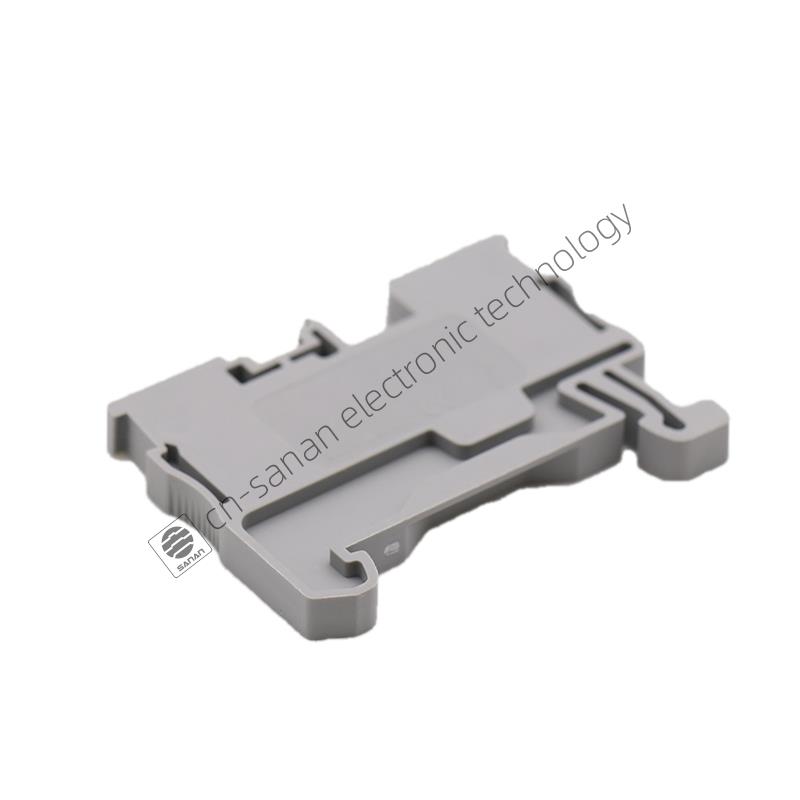

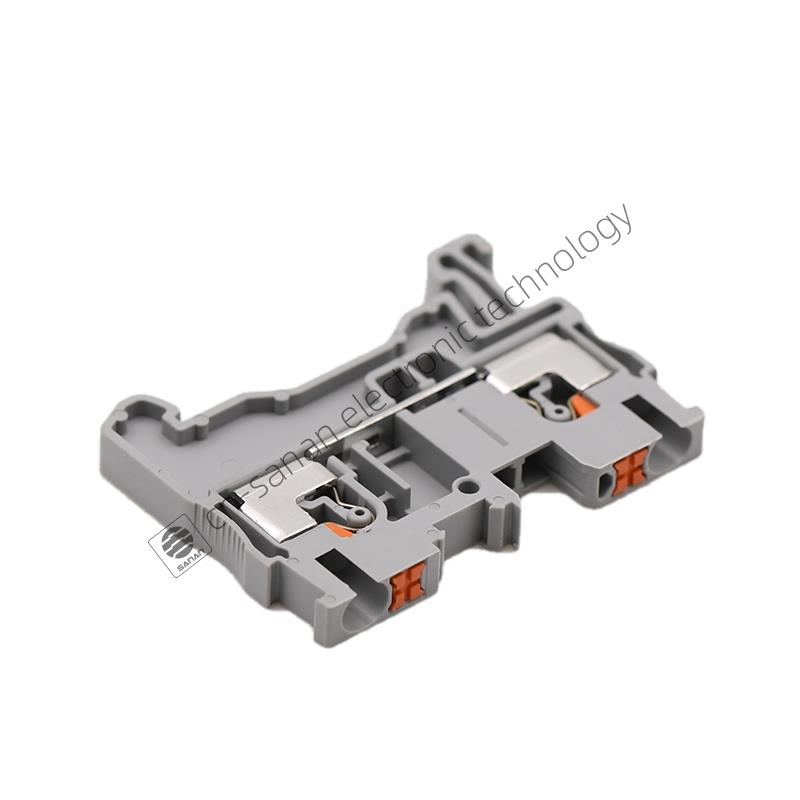

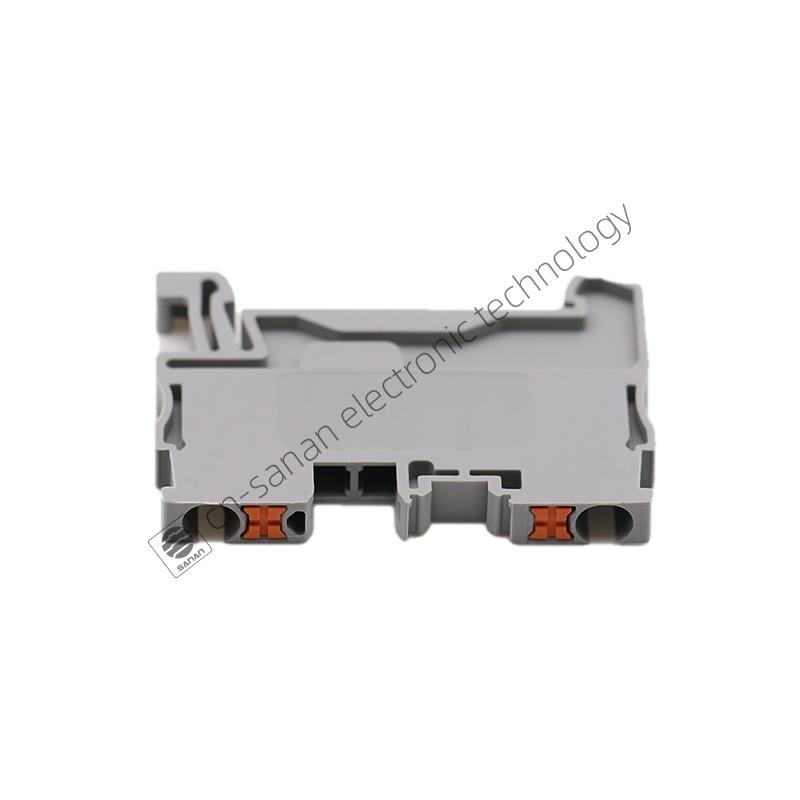

Spring Type Rail Terminal Block Din Rail Mounted
Model：GP2.5-2-GY
Ningbo San'an Electronic Technology Co., Ltd. ,established in 2020 ,is a high-tech enterprise focusing on the industrial automation. The company consists of - an automation division,our main products - terminal block,IO module housing,Spring Type Rail Terminal Block Din Rail Mounted, din rail enclosures etc. With high-quality products and good service, won high praise, the products are widely used in automation equipment, LED equipment, non-standard automation equipment, assembly lines,mechanical machine tools, rail transport, power equipment, new energy, and other industries. Since its establishment, Sanan has always been commited to the development and improvement of its infrastructure, control system, and staff team, its high-quality products and outstanding team have been fully affirmed by our customers and infinite power for the company's continuous development.
Send Inquiry PDF DownLoad
Product Description
DIN rail terminal blocks create a complete circuit by allowing the connection of wiring from one piece of equipment to the input-output ports on other equipment. They are widely used in electrical cabinets and industrial racks to protect complex equipment. They are a standard component in telecommunications, building management, energy conservation, HVAC systems, power supplies, lighting control, and vehicle electronics, our din rails terminal blocks can be suitable for different standards, for example 10A,20A,24A,32A,57A, and in order to improve our level, our blocks have the CE,UL ROSH certifications.
Feature
Equipped with dual-channel bridge wells, circuit connection testing is more flexible.
Unique plug-in bridge, high circuit connection efficiency.
Optional marker to avoid wire mis-inserting.
Equipped with test holes for easy testing of the circuit.
With V0 flame retardant
Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space
Product specification of Spring Type Rail Terminal Block Din Rail Mounted
| Product name | Spring Type Rail Terminal Block Din Rail Mounted |
| Material | Flame resistant Nylon PA66 V0 |
| Color | Grey(accept customization) |
| Connection method | Spring connection |
| Number of connections | 2 |
| Width | 5.2mm |
| Height | 45.8mm |
| Length | 68.2mm |
| Strip length | 8~9mm |
| Conductor cross section solid AWG | 26- 12 |
| Conductor cross section solid | 0.2 mm² - 2.5mm² |
| Rated voltage | 600V |
| Rated current | 20A |
| Ambient temperature (operation) | -40 °C ~ 105 °C（depending on derating curve） |
| Weight | 10g |
| MOQ | 100pcs |
| Packing | Natural packing or customization |
| Brand | OEM |

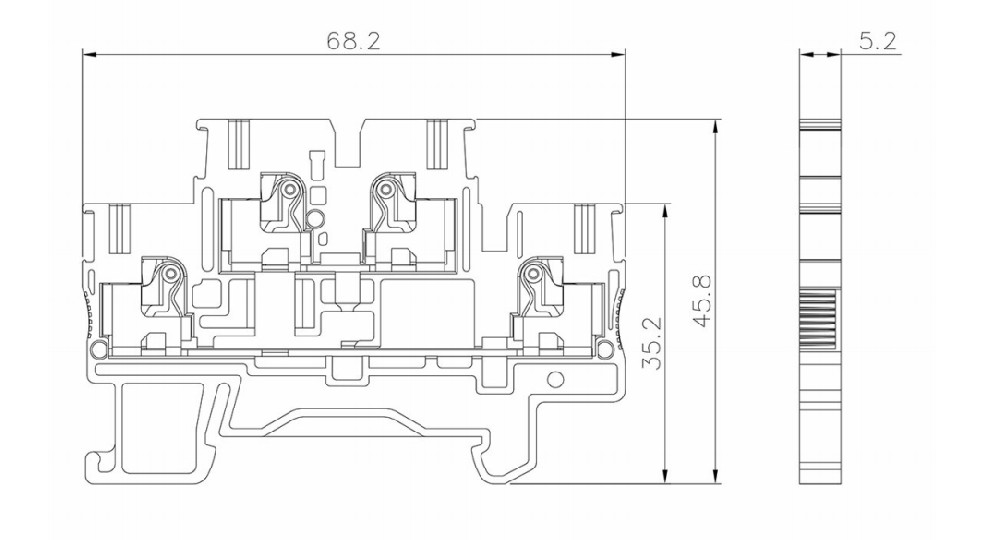

Drawing of Spring Type Rail Terminal Block Din Rail Mounted
Packing
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
-Port Ningbo port or Shanghai port
- By sea etc
