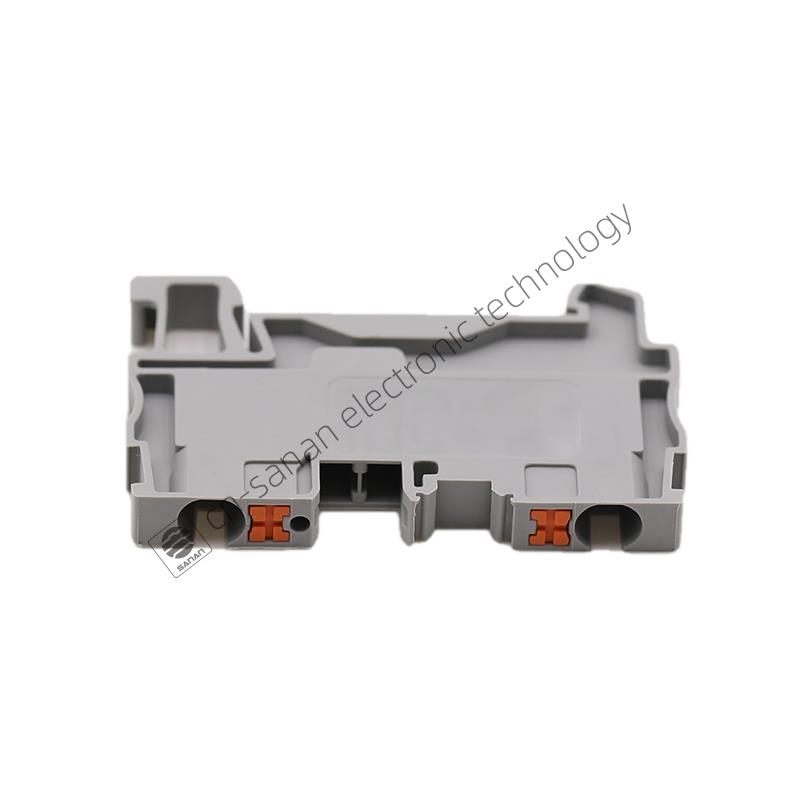

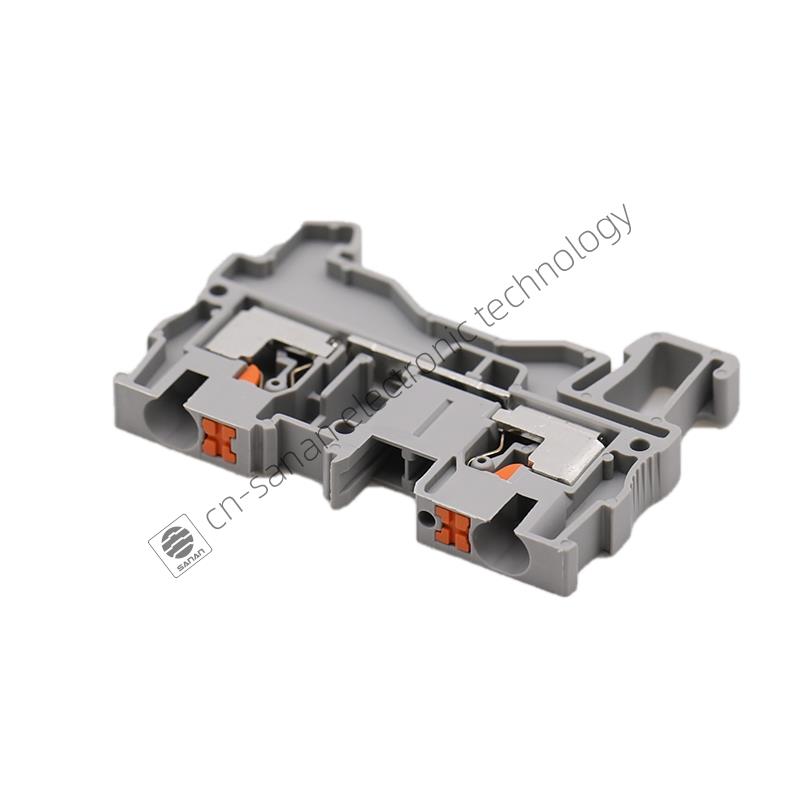

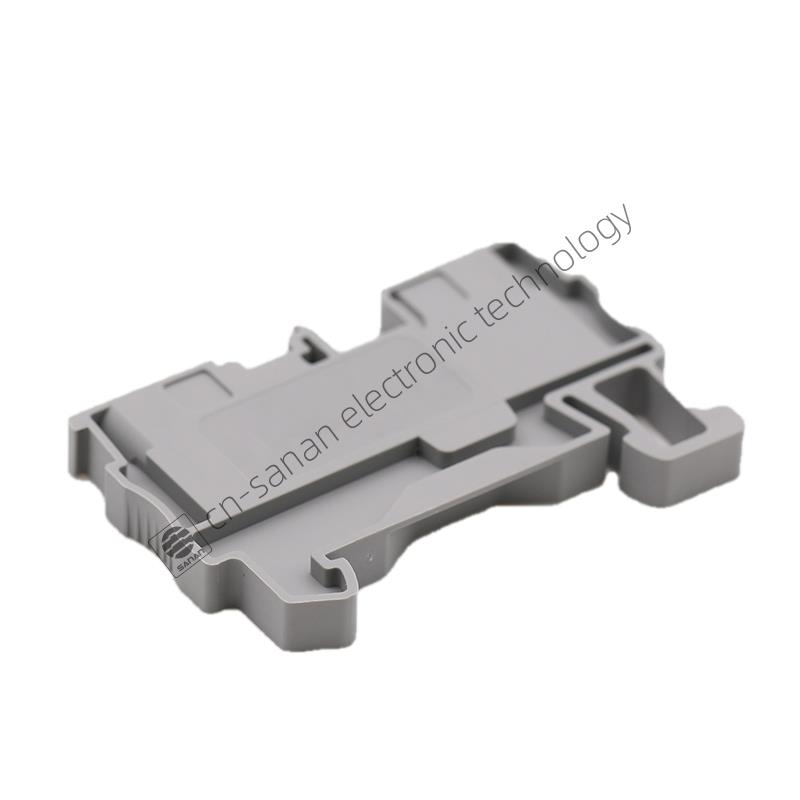

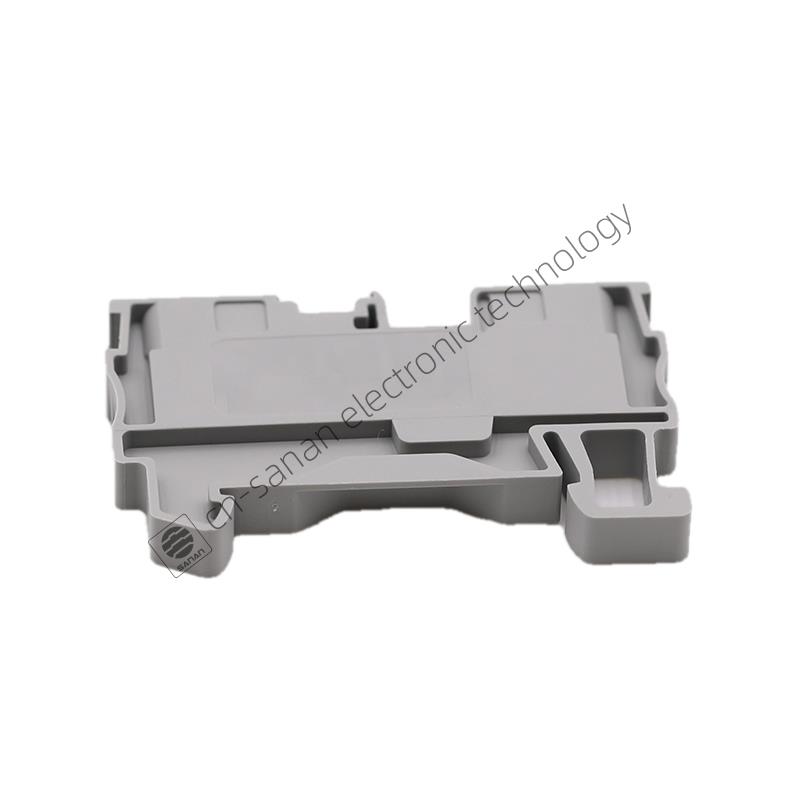

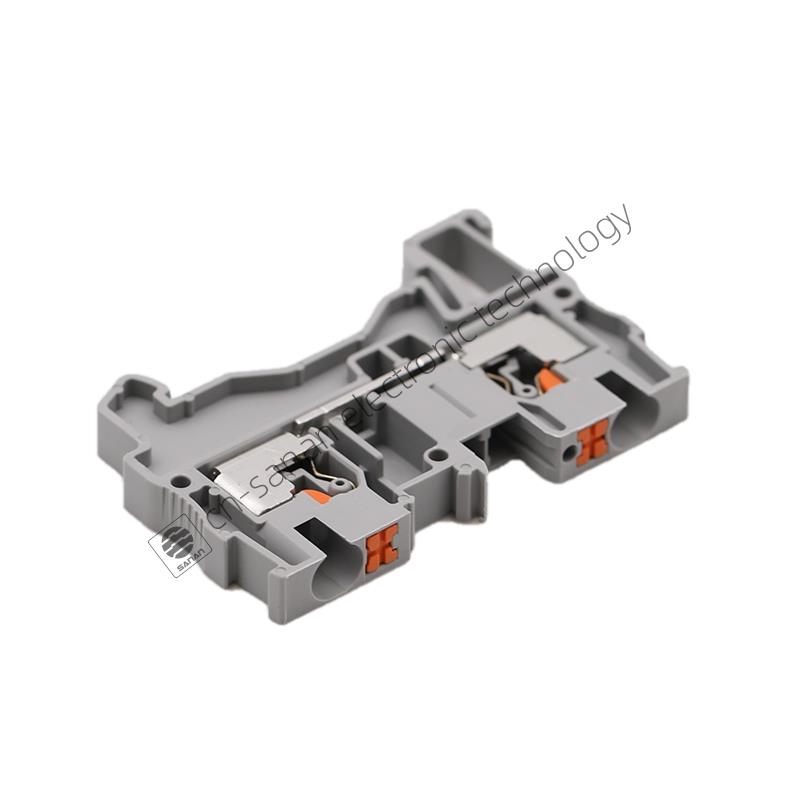

UK Spring Type Rail Terminal Block Din Rail Mounted
Model：GP4-2-GY
Ningbo San'an Electronic Technology Co., Ltd. is a professional uk spring type rail terminal block din rail mounted manufacturer from China committed to becoming a comprehensive service provider of industrial automation and industrial control product sales, professional to provide customers with high quality products and technical solutions,the company adhere to the automation service, the product coverage is large, mainly involving low voltage, medium voltage and other transmission and distribution products, industrial automation control products, instrumentation and so on.The company has an experienced, well-trained, disciplined and energetic professional team, serving in the domestic petrochemical, electric power, metallurgy, machinery, light industry, and other fields, to provide comprehensive automation system integration technology and services. Complete automation control equipment and automation testing equipment of high-tech innovation automation suppliers,We are looking forward to your contact. We expect long-term cooperation with you together for bright future!
Send Inquiry PDF DownLoad
Product Description
DIN rail terminal blocks create a complete circuit by allowing the connection of wiring from one piece of equipment to the input-output ports on other equipment. They are widely used in electrical cabinets and industrial racks to protect complex equipment. They are a standard component in telecommunications, building management, energy conservation, HVAC systems, power supplies, lighting control, and vehicle electronics, our din rails terminal blocks can be suitable for different standards, for example 10A,20A,24A,32A,57A, and in order to improve our level, our blocks have the CE,UL ROSH certifications.
Feature
Equipped with dual-channel bridge wells, circuit connection testing is more flexible.
Unique plug-in bridge, high circuit connection efficiency.
Optional marker to avoid wire mis-inserting.
Equipped with test holes for easy testing of the circuit.
With V0 flame retardant
Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space
Product specification of UK Spring Type Rail Terminal Block Din Rail Mounted
| Product name | UK Spring Type Rail Terminal Block Din Rail Mounted |
| Material | Flame resistant Nylon PA66 V0 |
| Color | Grey(accept customization) |
| Connection method | Spring connection |
| Number of connections | 2 |
| Width | 6.2mm |
| Height | 54.9mm |
| Length | 35.5mm |
| Strip length | 10-12mm |
| Conductor cross section solid AWG | 24-10 |
| Conductor cross section solid | 0.2 mm²- 2.5mm² |
| Rated voltage | 600V |
| Rated current | 30A |
| Ambient temperature (operation) | -40 °C ~ 105 °C（depending on derating curve） |
| Weight | 12g |
| MOQ | 100pcs |
| Packing | Natural packing or customization |
| Brand | OEM |

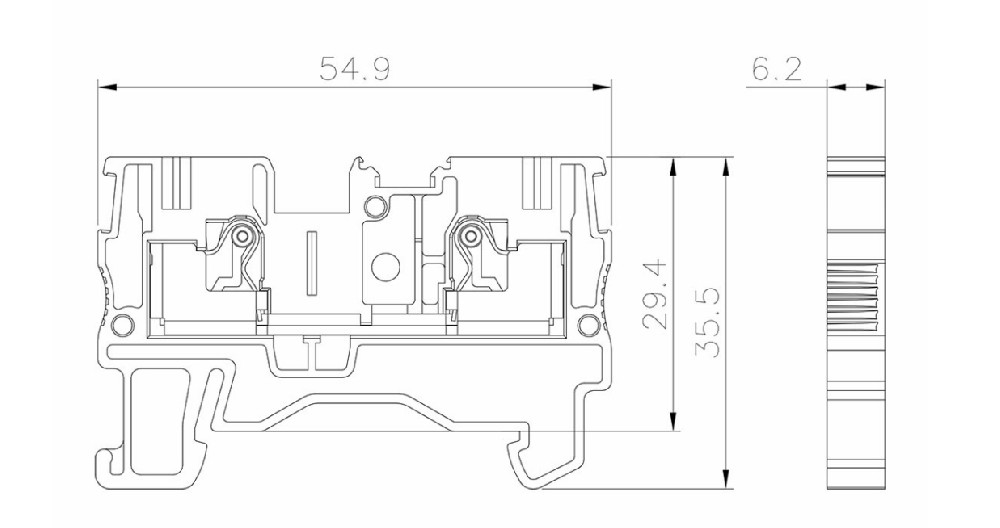

Drawing of Spring Type Rail Terminal Block Din Rail Mounted
