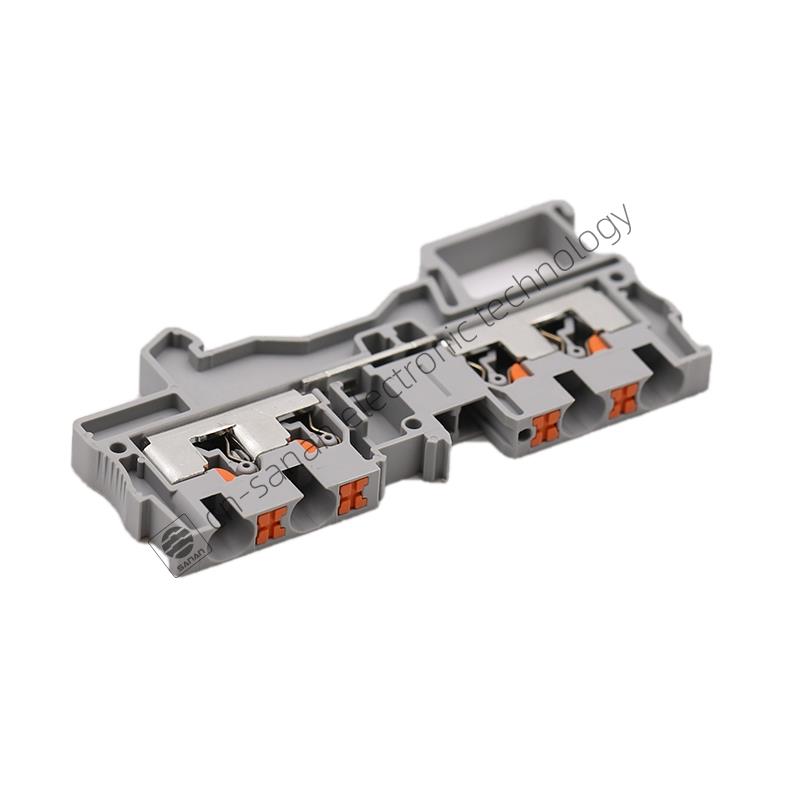

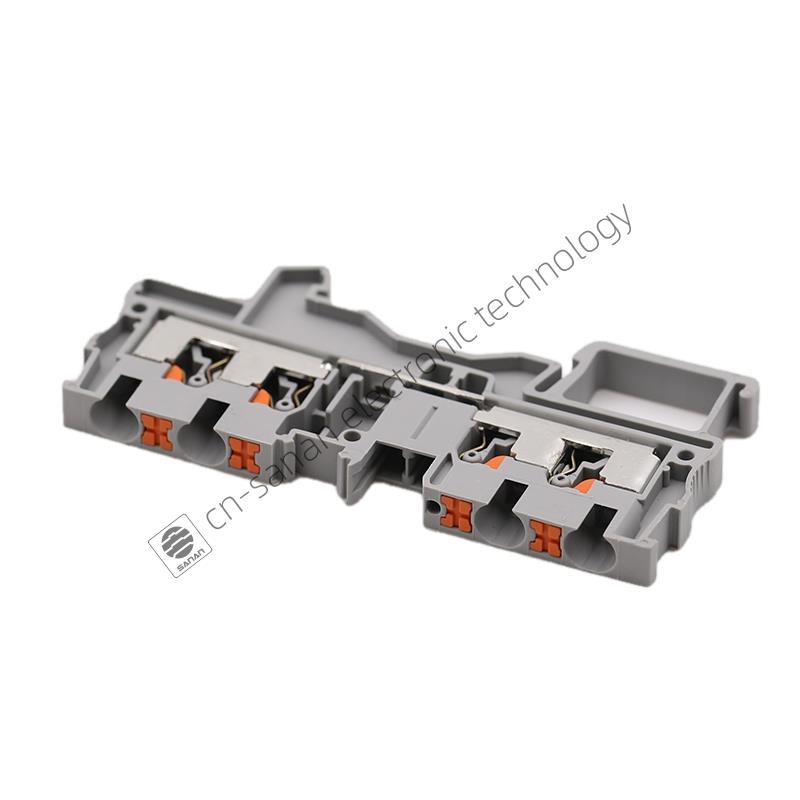

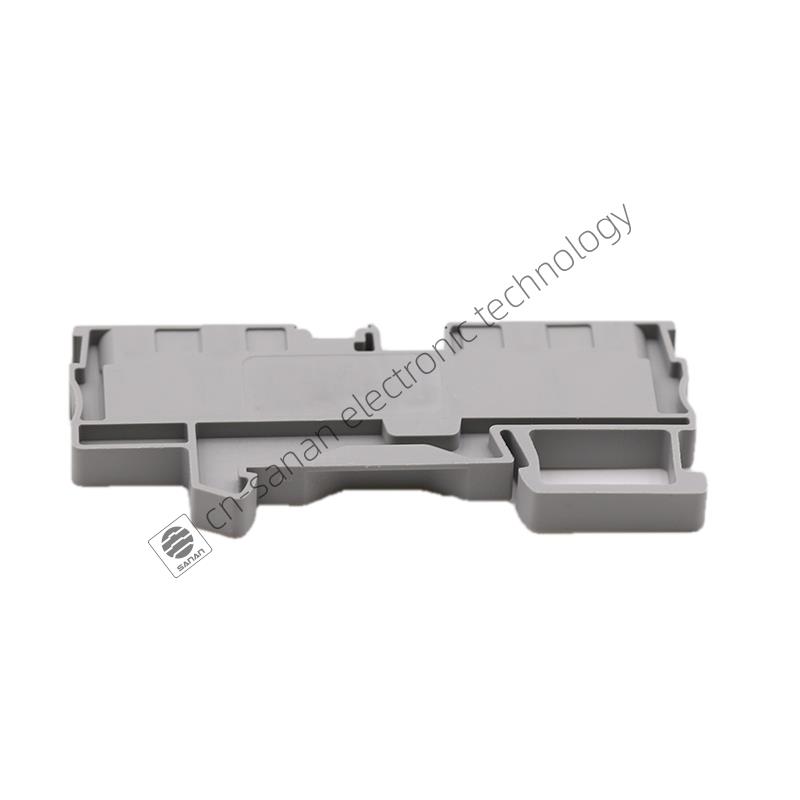

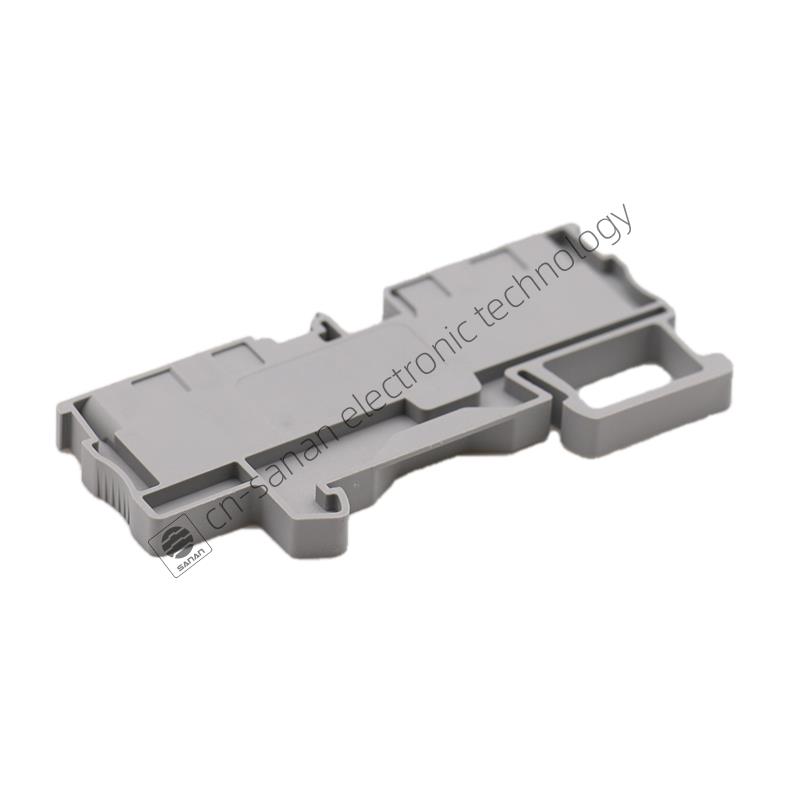

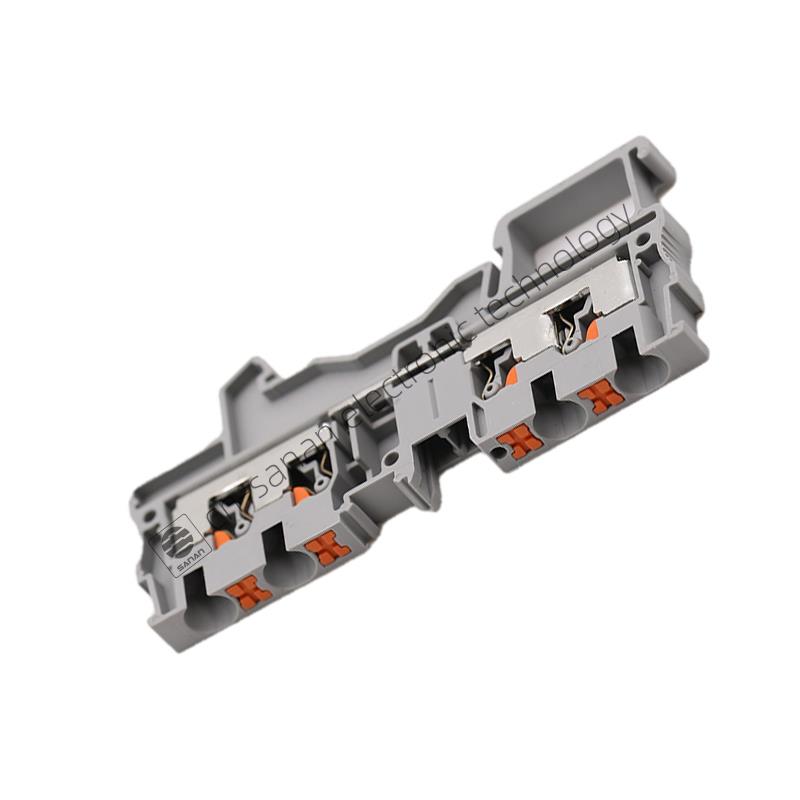

32A 800V Spring Type Rail Terminal Block Din Rail Mounted
Model：GP4-2-GY
Ningbo San'an Electronic Technology Co., Ltd. was founded in 2020, focusing on providing customer electronic components research and development, production and sales services, such as DlN rail terminal blocks,32A 800V Spring Type Rail Terminal Block Din Rail Mounted, din rail enclosures, IO modules for electric energy,wind power generation,Rail traffic,intelligent building,new energy vehicles etc. Sanan with a production capacity of 250000 sets per month.The products are well sold in Europe, America, Japan and Korea. The total number of employees is nearly 60, and about 10% are R&D technicians. Besides,we has passed lSO 9001.IS0 14001.1S0 45001 certification.UL,CE,CQC certification. The high quality is always our target.
Send Inquiry PDF DownLoad
Product Description
DIN rail terminal blocks create a complete circuit by allowing the connection of wiring from one piece of equipment to the input-output ports on other equipment. They are widely used in electrical cabinets and industrial racks to protect complex equipment. They are a standard component in telecommunications, building management, energy conservation, HVAC systems, power supplies, lighting control, and vehicle electronics, our din rails terminal blocks can be suitable for different standards, for example 10A,20A,24A,32A,57A, and in order to improve our level, our blocks have the CE,UL ROSH certifications.
Feature
Equipped with dual-channel bridge wells, circuit connection testing is more flexible.
Unique plug-in bridge, high circuit connection efficiency.
Otional marker to avoid wire mis-inserting.
Equipped with test holes for easy testing of the circuit.
With V0 flame retardant
Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space
Product specification of 32A 800V Spring Type Rail Terminal Block Din Rail Mounted
| Product name | 32A 800V Spring Type Rail Terminal Block Din Rail Mounted |
| Material | Flame resistant Nylon PA66 V0 |
| Color | Grey(accept customization) |
| Connection method | Spring connection |
| Number of connections | 4 |
| Width | 6.2mm |
| Height | 77.7mm |
| Length | 35.5mm |
| Strip length | 10-12mm |
| Conductor cross section solid AWG | 24-10 |
| Conductor cross section solid | 0.2 mm²- 2.5mm² |
| Rated voltage | 600V |
| Rated current | 30A |
| Ambient temperature (operation) | -40 °C ~ 105 °C（depending on derating curve） |
| Weight | 12g |
| MOQ | 100pcs |
| Packing | Natural packing or customization |
| Brand | OEM |

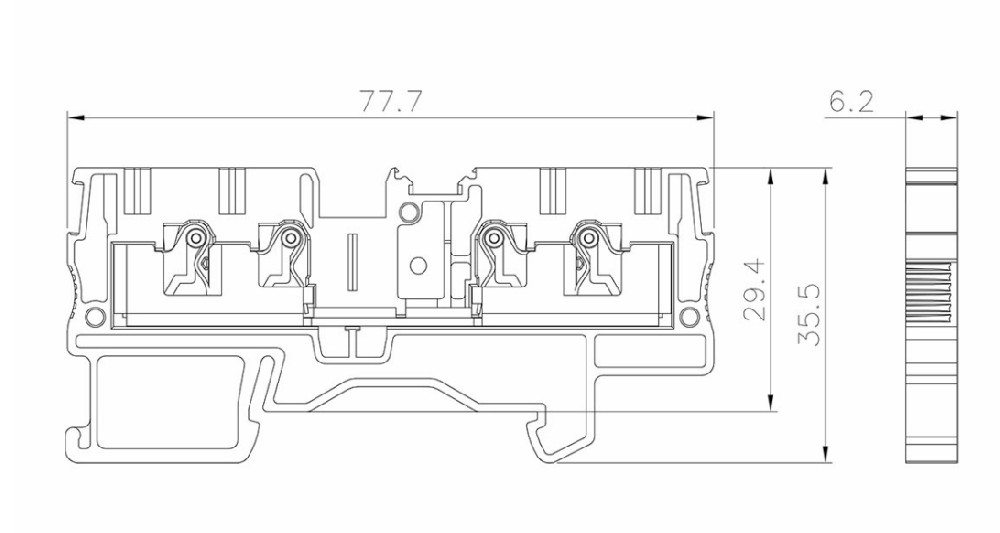

Drawing of32A 800V Spring Type Rail Terminal Block Din Rail Mounted
Packing
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
