Push In Spring 2.5 Din Rail Terminal Block
Model：GPD2.5-2-GY
Ningbo San'an Electronic Technology Co., Ltd. was established in 2020,professional manufacturer in China of terminal blocks, IO modules, din rail enclosures,Push In Spring 2.5 Din Rail Terminal Block etc.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.Yueqing HRYA Electrical Co., Ltd. Our Products are presented in more than 30 different countries from the Middle East to South America, from Europe to Australia, from Southeast Asia to North Africa.HRYA is ISO9001 Quality Assurance accredited, and both quality and safety are of paramount importance to us. Our products have CE,UL certificates. We have extensive OEM experience, constant new product development, strong capabilities, competitive prices, excellent international market knowledge, professional, dynamic and customer focused staff, flexible trading terms, high quality,and timely delivery.
Send Inquiry PDF DownLoad
Product Description
DIN rail terminal blocks create a complete circuit by allowing the connection of wiring from one piece of equipment to the input-output ports on other equipment. They are widely used in electrical cabinets and industrial racks to protect complex equipment. They are a standard component in telecommunications, building management, energy conservation, HVAC systems, power supplies, lighting control, and vehicle electronics, our din rails terminal blocks can be suitable for different standards, for example 10A,20A,24A,32A,57A, and in order to improve our level, our blocks have the CE,UL ROSH certifications.
Feature of Push In Spring 2.5 Din Rail Terminal Block
Equipped with dual-channel bridge wells, circuit connection testing is more flexible.
Unique plug-in bridge, high circuit connection efficiency.
Optional marker to avoid wire mis-inserting.
Equipped with test holes for easy testing of the circuit.
With V0 flame retardant
Multi-conductor terminal blocks allow you to distribute potentials at low cost while saving space
Product specification of Push In 2.5 Din Rail Terminal Block Color Grey
| Product name | Push In 2.5 Din Rail Terminal Block Color Grey |
| Material | Flame resistant Nylon PA66 V0 |
| Color | Grey(accept customization) |
| Connection method | Spring connection |
| Number of connections | 4 |
| Width | 5.2mm |
| Height | 68.2mm |
| Length | 45.8mm |
| Strip length | 8-10mm |
| Conductor cross section solid AWG | 24-10 |
| Conductor cross section solid | 0.2 mm²- 2.5mm² |
| Rated voltage | 500V |
| Rated current | 22A |
| Ambient temperature (operation) | -40 °C ~ 105 °C（depending on derating curve） |
| Weight | 15g |
| MOQ | 100pcs |
| Packing | Natural packing or customization |
| Brand | OEM |

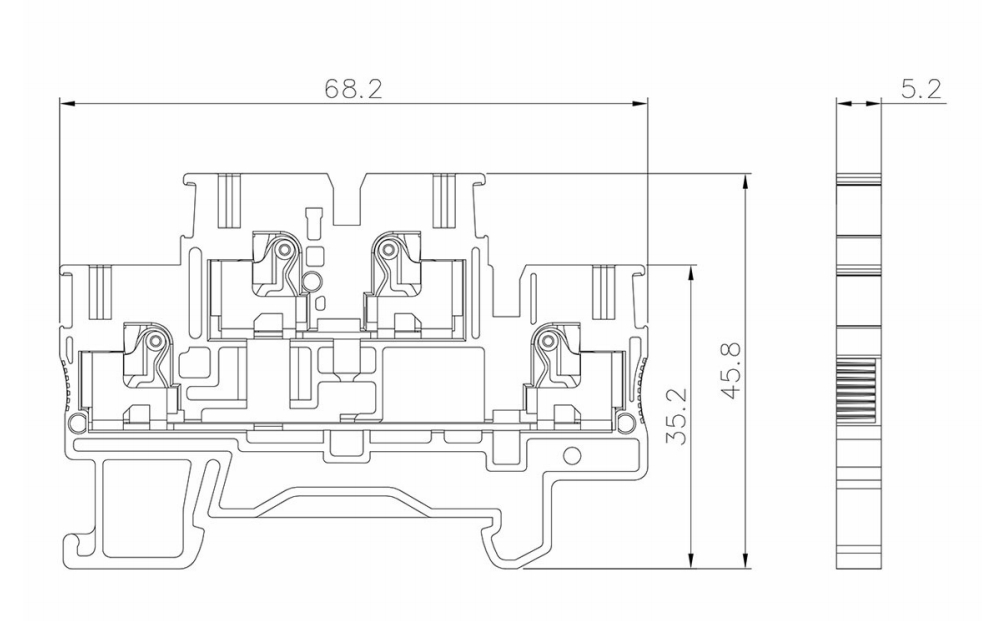

Drawing of Push In 2.5 Din Rail Terminal Block Color Grey
Packing
According to Stardard Export Packing,Carton box, wooden box, wooden pallet etc
Shipping
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- Port Ningbo port or Shanghai port
- By sea etc
